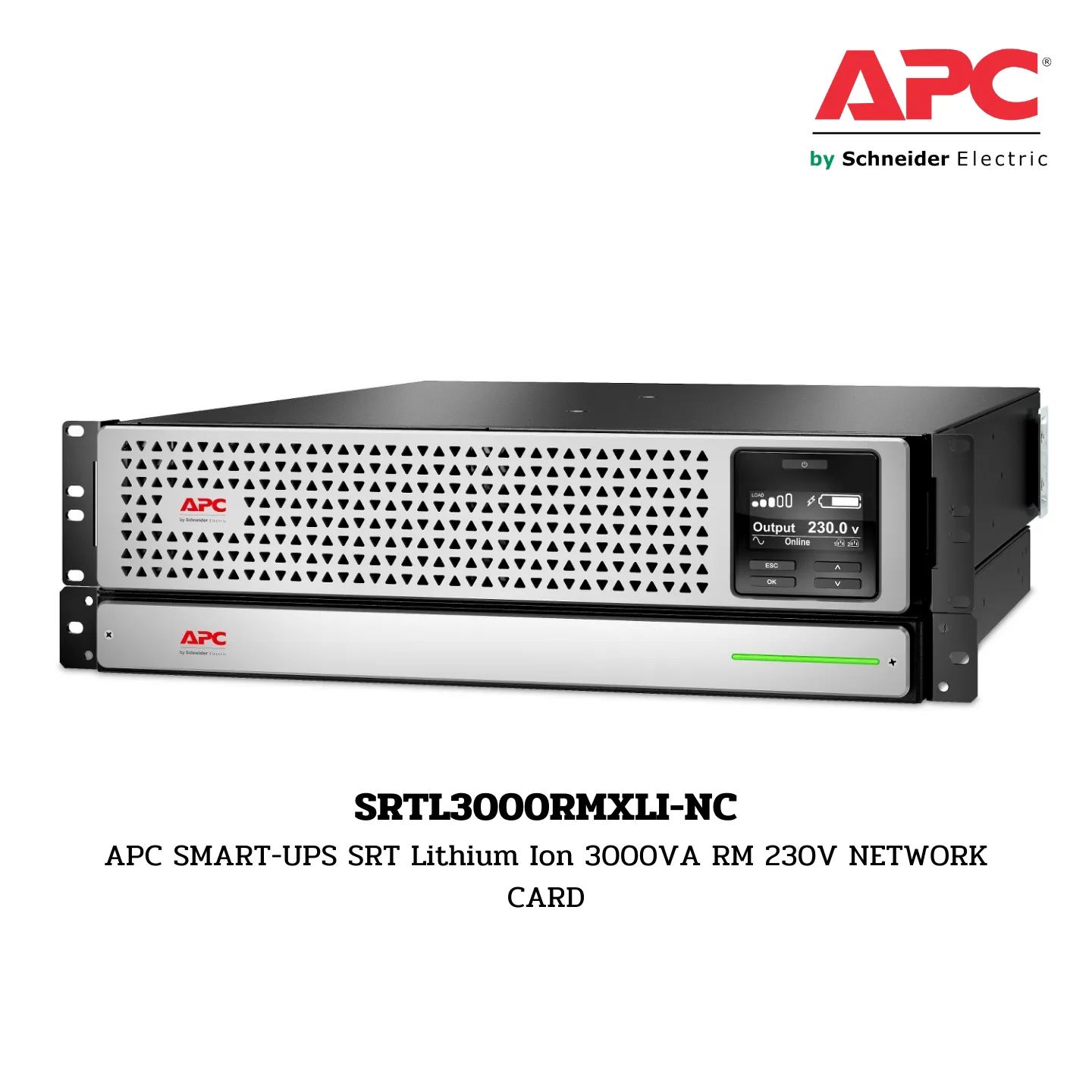

เครื่องสำรองไฟ APC SRTL3000RMXLI-NC รุ่น APC Smart-UPS Lithium Ion

APC SRTL3000RMXLI-NC
APC SMART-UPS SRT Lithium Ion 3000VA RM 230V NETWORK CARD

Overview

APC SMART-UPS SRT Lithium Ion 3000VA RM 230V NETWORK CARD

Specifications

Main

• Run time for load: 2700 W, Min-max: 270-2700 W, 10min 7s
• Max. Capacity Used: 100 %
• Main Input Voltage: 230 V
• Product or component type: Uninterruptible power supply (UPS)
• Other Input Voltage: 220 V, 240 V
• Main Output Voltage: 230 V
• Other Output Voltage: 220 V, 240 V
• Rated power: 2700 W
• Rated power in VA: 3000 VA
• Input Connection Type: IEC 60320 C20
• Output connection type: 6 IEC 60320 C13, 2 IEC 60320 C19
• Number of rack unit: 3U
• Cable length: 1.8 m
• Number of cables: 1

Provided Equipment

• CD with software
• Communication cable
• Documentation CD
• Installation guide
• Removable support feet
• USB cable
• Warranty card

Complementary

• Range of product: Smart-UPS On-Line

Batteries & Runtime

• Run Time: View Runtime Graph
• Battery type: Li-Ion (Lithium-Ion)
• Battery voltage: 48 V
• Extended runtime: 1
• Battery recharge time: 4 hours
• Battery life: 5-10 years
• Battery charger power: 158 W rated

Physical

• Colour: Black with silver front bezel
• Height: 12.8 cm
• Width: 43.2 cm
• Depth: 63.9 cm
• Net weight: 29.2 kg
• Mounting preference: No preference
• Mounting mode: Rack-mounted with kit, Two post mountable
• USB compatible: Yes
• Mounting position: Horizontal, Vertical

Input

• Input voltage limits: 160-275 V
• Network frequency: 40-70 Hz auto-sensing

Output

• Bypass type: Built-in bypass
• Crest factor: 3 : 1
• Harmonic distortion: Less than 2 %
• Maximum configurable power: 3000 VA / 2700 W
• Wave type: Sine wave
• Output frequency: 50/60 Hz +/- 3 Hz sync to mains

Conformance

• Product certifications: CE, EAC, UK PSTI
• Marking: CE Mark
• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Environmental

• Acoustic level: 50 dBA
• Heat dissipation: 780 Btu/h
• Operating altitude: 0-10000 ft
• Ambient air temperature for operation: 0-40 °C
• Ambient air temperature for storage: -20-50 °C
• Storage altitude: 0-15240 m
• IP degree of protection: IP20
• Relative humidity: 0-95 % non-condensing

Communications & Management

• Emergency power off: Yes
• Free slots: 0
• Preinstalled device: Network management card 3 with environmental monitoring
• Alarm: Audible and visible alarms (prioritized by severity)

Surge Protection and Filtering

• Surge energy rate: 432 J

Packing Units

• Unit Type of Package 1: PCE
• Number of Units in Package 1: 1
• Package 1 Height: 24.5 cm
• Package 1 Width: 87 cm
• Package 1 Length: 60 cm
• Package 1 Weight: 41 kg
