เครื่องสำรองไฟ APC SRVL6KRILRK รุ่น APC Smart-UPS Lithium Ion

SRVL6KRILRK

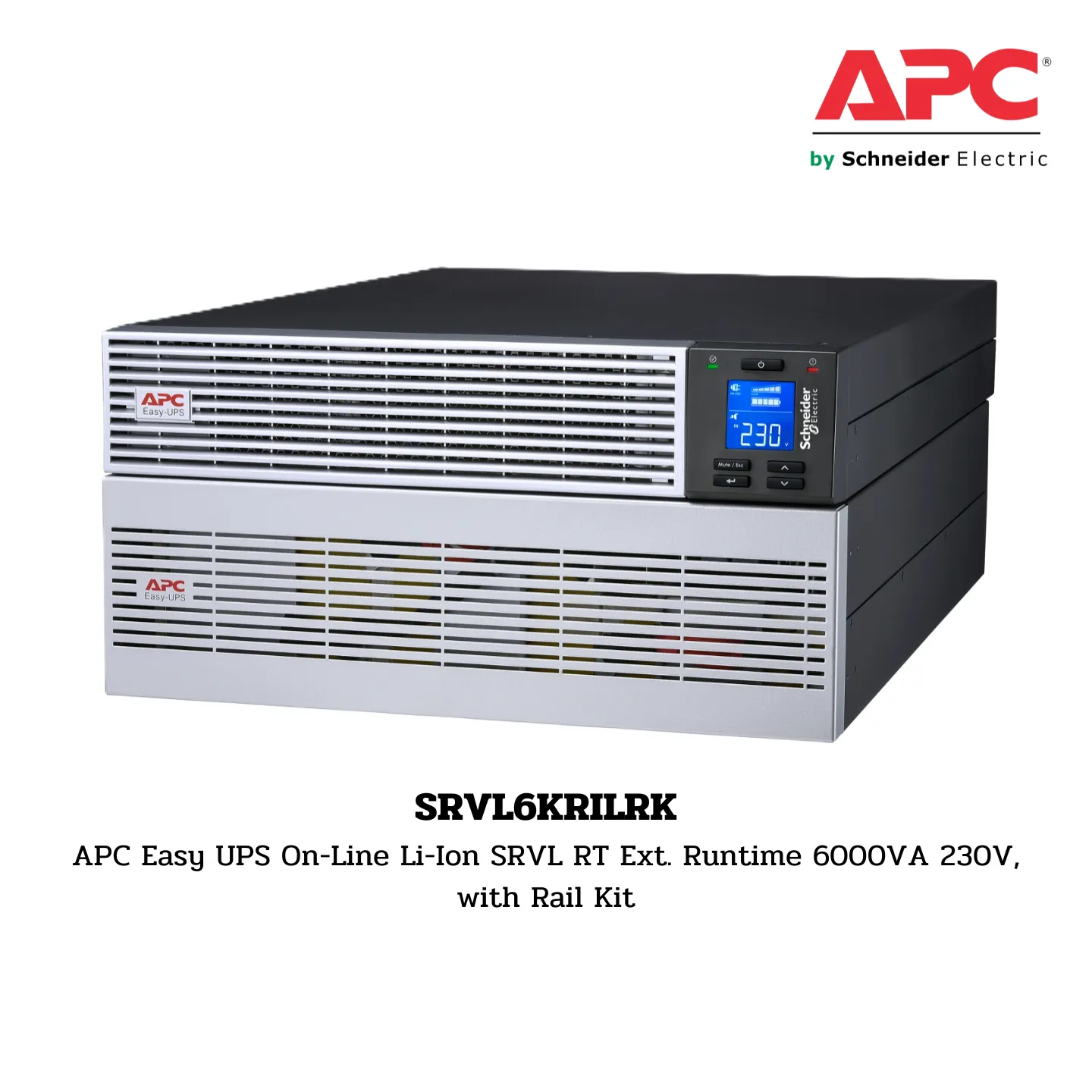

APC Easy UPS On-Line Li-Ion SRVL RT Ext. Runtime 6000VA 230V, with Rail Kit

Overview

SRVL6KRILRK APC Easy UPS On-Line Li-Ion SRVL RT Ext. Runtime 6000VA 230V, with Rail Kit

Specifications

Main

• Run time for load: 6000 W, Min-max: 600-6000 W, 35min
• Max. Capacity Used: 100 %
• Main Input Voltage: 230 V AC 1 phase
• Product or component type: Uninterruptible power supply (UPS)
• Other Input Voltage: 230 V
• Main Output Voltage: 230 V AC 1 phase
• Other Output Voltage: 220 V, 240 V
• Rated power: 6000 W
• Rated power in VA: 6000 VA
• Input Connection Type: Hard wire 3-wire (1P + N + E) 1
• Output connection type: 6 IEC 60320 C13
• Number of rack unit: 5U

Provided Equipment

• Basic UPS signalling RS-232 cable
• USB cable
• RJ45 cable
• RJ11 cable
• Battery cable
• Grounding cable
• Rack mounting brackets
• Stabilization feet
• User manual
• Safety guide

Complementary

• Range of product: Easy UPS On-Line
• UPS connectivity: Serial port ,USB port ,Available expansion slot
• Mounting mode: Rack-mounted with included kit

Batteries & Runtime

• Battery type: Li-Ion (Lithium-Ion) external included
• Battery voltage: 48 V
• Extended runtime: 1
• Number of battery filled slots: 0
• Number of battery free slots: 0
• Battery recharge time: 5 hours
• Battery design life: 8-10 years
• Battery charger power: 1500 W

Physical

• Colour: Black with silver front bezel
• Height: 217 mm
• Width: 438 mm
• Depth: 685 mm
• Net weight: 69.2 kg
• USB compatible: Yes
• Mounting position: Horizontal and vertical

Input

• Input voltage limits: 186-300 V full load, 120-300 V 60 % load
• Number of input connectors: 1 hard wire 3-wire (1P + N + E)
• Network frequency: 40-70 Hz auto-sensing

Output

• Maximum configurable power: 6000 VA / 6000 W
• Output frequency: 50/60 Hz +/- 4 Hz sync to mains
• UPS type: Double conversion online
• Wave type: Sine wave
• Efficiency: 93.5 % (full load)
• Bypass type: Internal bypass (automatic and manual)
• Crest factor: 3 : 1

Conformance

• Product certifications: CB, CE, UKCA,  RCM, IRAM ,TISI , UN 38.3, IEC 62619

Environmental

• Ambient air temperature for operation: 0-40 °C
• Relative humidity: 0-95 % non-condensing
• Operating altitude: 0-3000 m
• Ambient air temperature for storage: -20-50 °C
• Storage Relative Humidity: 0-95 % non-condensing
• Storage altitude: 0-15000 m
• Acoustic level: 57.3 dBA
• Heat dissipation: 1780 Btu/h
• IP degree of protection: IP20

Communications & Management

• Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
• Emergency power off: Yes
• Control panel: Multifunction LCD status and control console

Surge Protection and Filtering

• Surge energy rate: 600 J

Packing Units

• Unit Type of Package 1: PCE
• Number of Units in Package 1: 1
• Package 1 Height: 65.2 cm
• Package 1 Width: 60 cm
• Package 1 Length: 80 cm
• Package 1 Weight: 85.9 kg
