เครื่องสำรองไฟ APC SMTL1500RMI3UC รุ่น APC Smart-UPS Lithium Ion

APC SMTL1500RMI3UC

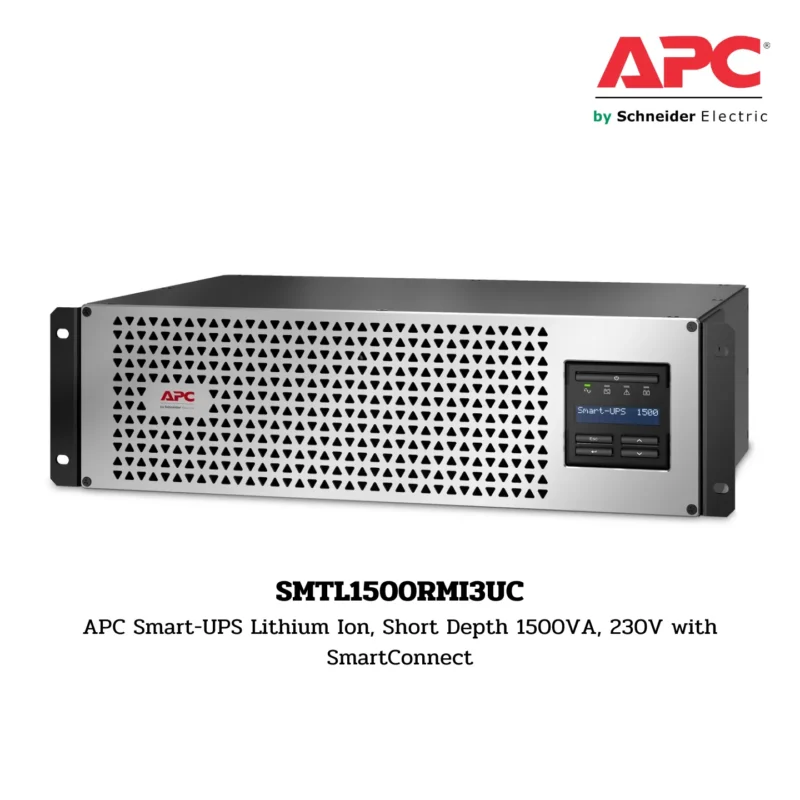

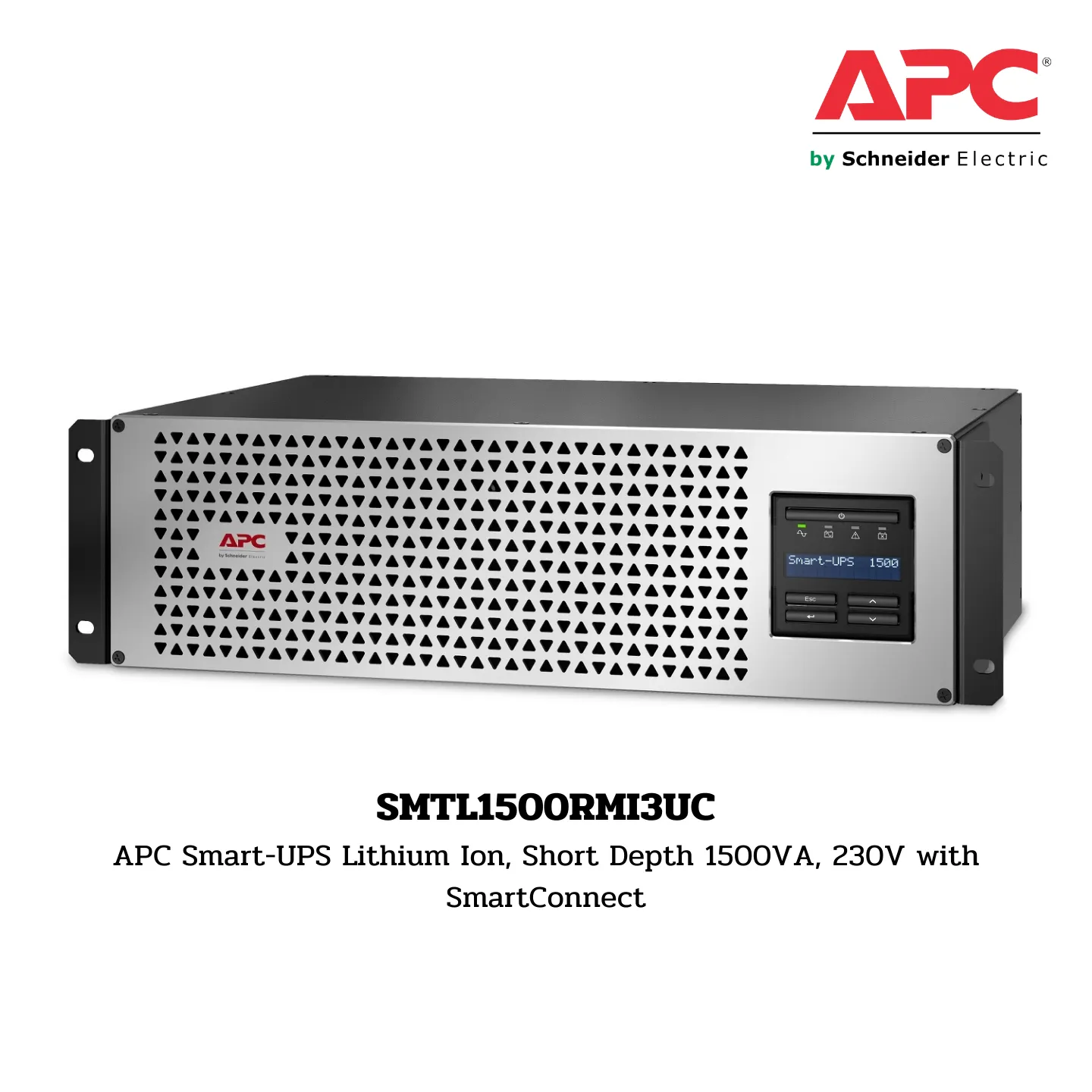

APC Smart-UPS Lithium Ion, Short Depth 1500VA, 230V with SmartConnect

Overview

APC Smart-UPS Lithium Ion, Short Depth 1500VA, 230V with SmartConnect

Specifications

Main

• Run time for load: 1350 W, Min-max: 150-1350 W, 5min 9s
• Max. Capacity Used: 100 %
• Main Input Voltage: 230 V (Other: 220 V, 240 V)
• Main Output Voltage: 230 V (Other: 220 V, 240 V)
• Rated power: 1350 W
• Rated power in VA: 1500 VA
• Input Connection Type: IEC 60320 C14
• Output connection type: 6 IEC 60320 C13
• Number of rack unit: 3U
• Battery type: Li-Ion (Lithium-Ion)

Provided Equipment

• Installation guide
• Rack mounting support rails
• Smart UPS signalling RS-232 cable
• USB cable

Complementary

• Communication port type: SmartConnect Ethernet port, SmartSlot
• Software package: SmartConnect software for remote power monitoring (availability varies by terms of use)

Batteries & Runtime

• Run Time: View Runtime Graph
• Efficiency: View Efficiency Graph
• Battery recharge time: 3 hours
• Battery design life: 8-10 years
• Battery charger power: 100 W rated

Physical

• Colour: Black with silver front bezel
• Height: 13.1 cm
• Width: 43.8 cm
• Depth: 30.2 cm
• Net weight: 19.5 kg
• Mounting preference: No preference
• Mounting mode: Rack-mounted
• USB compatible: Yes

Input

• Input protection type: Circuit breaker
• Input voltage limits: 151-302 V adjustable, 160-280 V
• Network frequency: 50/60 Hz +/- 3 Hz auto-sensing

Output

• Crest factor: 3 : 1
• Harmonic distortion: Less than 5 %
• Maximum configurable power: 1500 VA / 1350 W
• Transfer time: 6 ms typical, 10 ms maximum
• UPS type: Line interactive
• Wave type: Sine wave
• Output frequency: 50/60 Hz +/- 3 Hz sync to mains

Conformance

• Product certifications: CE, CSA, EAC, RCM, UK PSTI
• Standards: EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Environmental

• Acoustic level: 45 dBA
• Heat dissipation: 135 Btu/h
• Operating altitude: 0-10000 ft
• Ambient air temperature for operation: 0-40 °C
• Ambient air temperature for storage: -15-45 °C
• IP degree of protection: IP20
• Relative humidity: 0-95 % non-condensing

Communications & Management

• Alarm: Audible and visible alarms
• Control panel: Multifunction LCD status and control console
• Free slots: 1
• Communication port support: SmartConnect Ethernet port (availability varies by terms of use)
• Alarm: Alarm when on battery, distinctive low battery alarm

Surge Protection and Filtering

• Surge energy rate: 645 J
• Noise suppression: Full time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449

Packing Units

• Unit Type of Package 1: PCE
• Number of Units in Package 1: 1
• Package 1 Height: 27.9 cm
• Package 1 Width: 44.8 cm
• Package 1 Length: 58.4 cm
• Package 1 Weight: 22.68 kg
