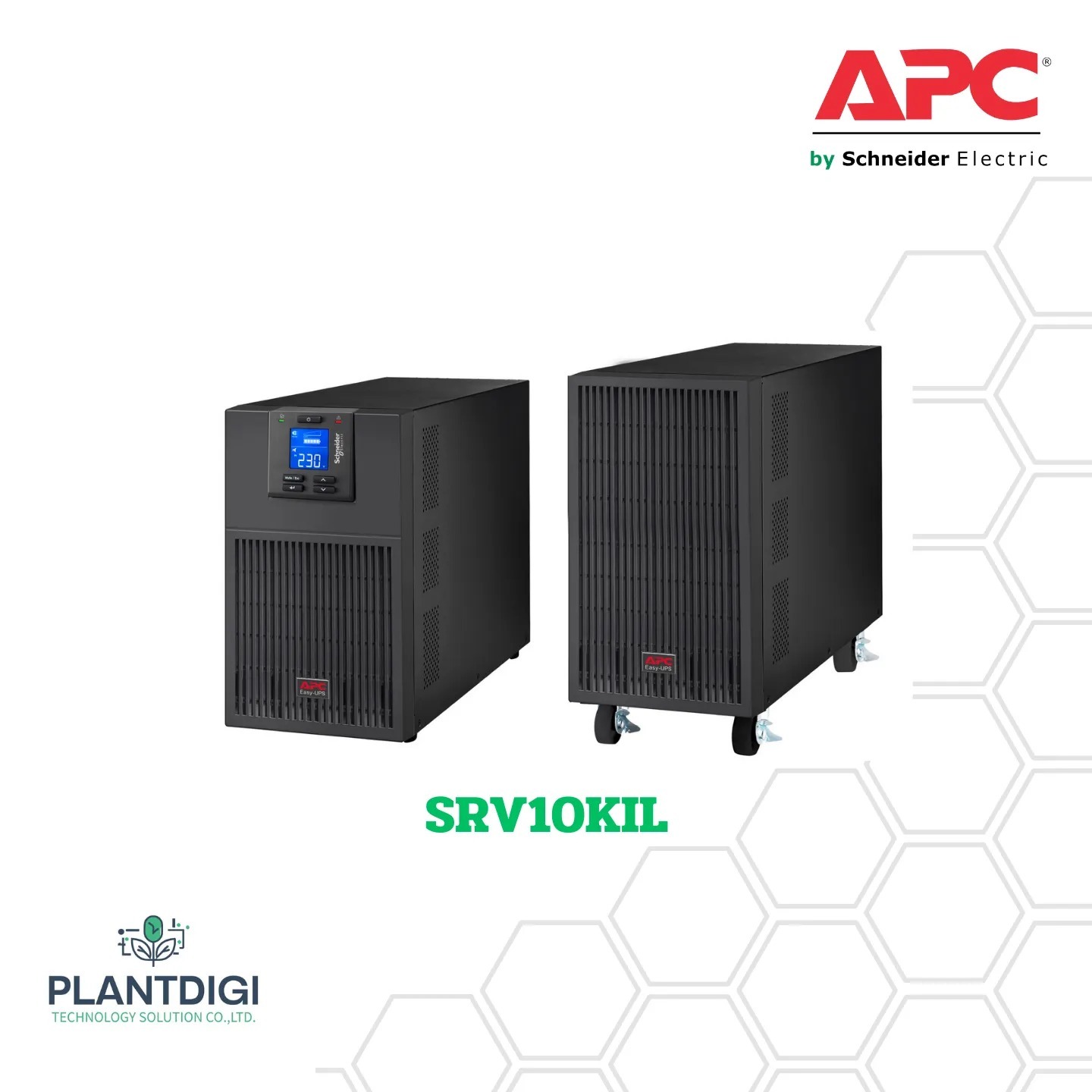

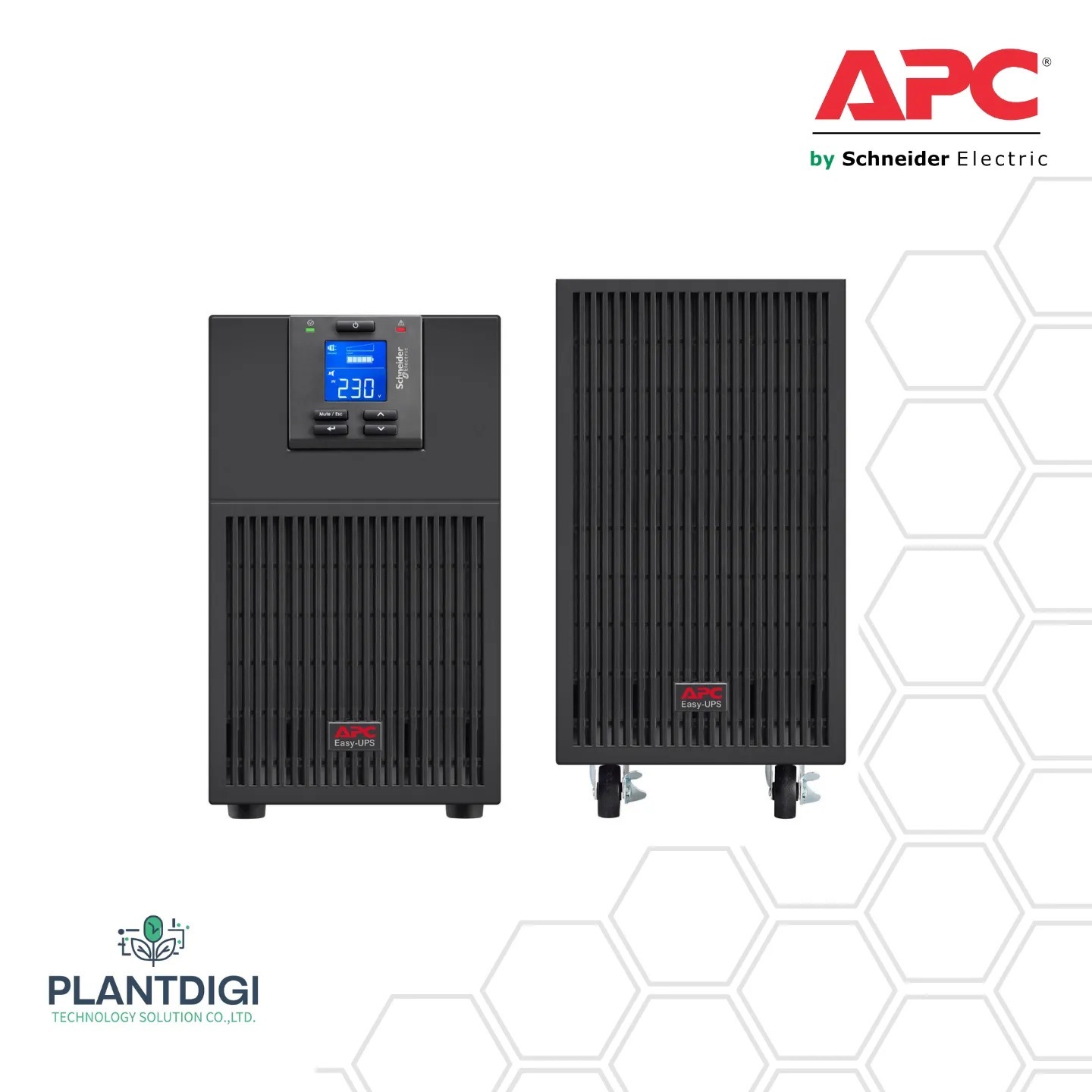

เครื่องสำรองไฟ APC Easy UPS On-Line SRV รุ่น SRV10KIL

APC SRV10KIL

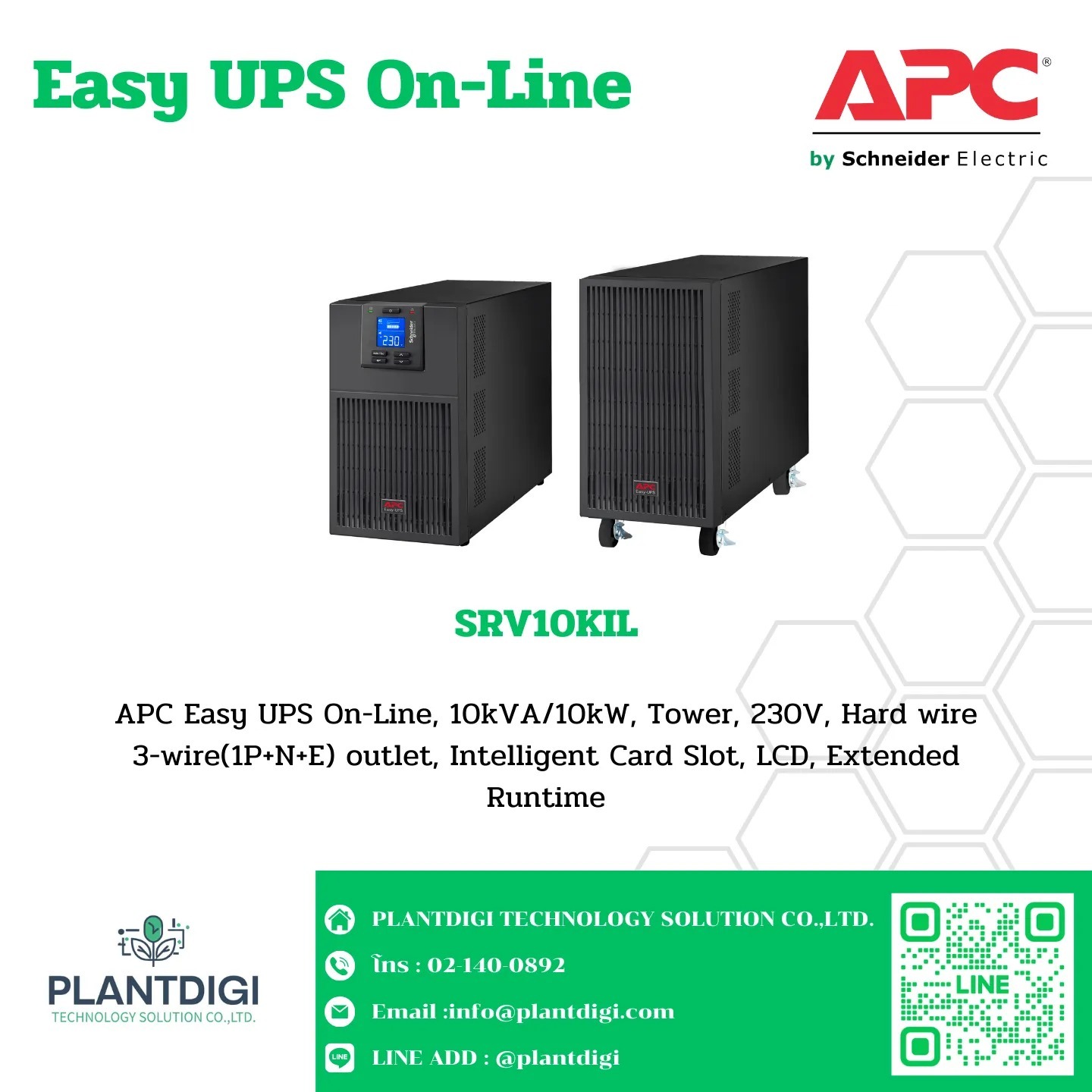

APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime

Specifications

————-
Main
————–
รันไทม์สําหรับโหลด 10000 W
ต่ำสุด-สูงสุด: 1000-10000 W 2min 32s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 230 V
Product or component type: Uninterruptible power supply (UPS)
Other Input Voltage: 220 V , 240 V
Main Output Voltage: 230 V
Other Output Voltage: 220 V , 240 V
Rated power in W: 10000 W
Rated power in VA: 10000 VA
Output connector type: Hard wire 3-wire (1P + N + E) 1
Provided equipment: 1 USB cable, 1 RS-232 configuration cable, 1 external battery pack, 1 battery cable, user manual
Range of product: Easy UPS On-Line

—————-
Batteries & Runtime
——————-
Battery type: Lead-acid battery
Battery voltage: 240 V
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 5 h
Battery life: 3…5 year(s)
Battery charger power: 1170 W rated

————
General
————
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No

———
Physical
———
Colour: Black (RAL 7010)
Height: 36.8 cm
Width: 38 cm
Depth: 48.5 cm
Net weight: 76.5 kg
mounting location: Front
Mounting preference: No preference
mounting mode: Not rack-mountable
USB compatible: Yes
mounting position: Vertical

—–
Input
—–
Input voltage limits: 110…300 V 60 % load, 176…300 V full load
Number of input connectors: 1 hard wire 3-wire (1P + N + E)
Network frequency: 40…70 Hz auto sensing

——-
Output
——-
Maximum configurable power in VA: 10000 VA
Maximum configurable power in W: 10000 VA
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion: 1 %
UPS type: Double conversion online
Wave type: Sine wave
Efficiency: 94 % (full load)
Additional information: Configurable for 220 : 230 or 240 nominal output voltage
Bypass type: Internal bypass (automatic and manual)
Crest factor: 3 : 1

————
Conformance
————
Product certifications: CE, UKCA, EAC, TISI
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

————-
Environmental
————-
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0…3000 m
Ambient air temperature for storage: -15…60 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0…15000 m
acoustic level: 58 dB
Heat dissipation: 2128 Btu/h
IP degree of protection: IP20

—————————-
Communications & Management
—————————-
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off: Yes
Free slots: 1
Control panel: Multifunction LCD status and control console

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 600 J

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 46 cm
Package 1 Width: 57 cm
Package 1 Length: 58 cm
Package 1 Weight: 82.5 kg

——————–
Contractual warranty
——————–
Warranty: 2 years repair or replace

สอบถามค่าติดตั้ง Service Installation
