เครื่องสำรองไฟ CyberPower รุ่น SM20KPM Modular UPS (3-Phase)
SM20KPM 20KVA Power Modular
2-yrs onsite with battery
***กรณีสั่งซื้อกับทางเราสามารถแจ้งเคลมผ่านกับเราได้เลย
ติดต่อเราเพื่อสั่งซื้อ สอบถาม หรือขอใบเสนอราคา
โทร : 02-140-0892
มือถือ : 089-314-3423
Line ID : @plantdigi
Email : info@plantdigi.com

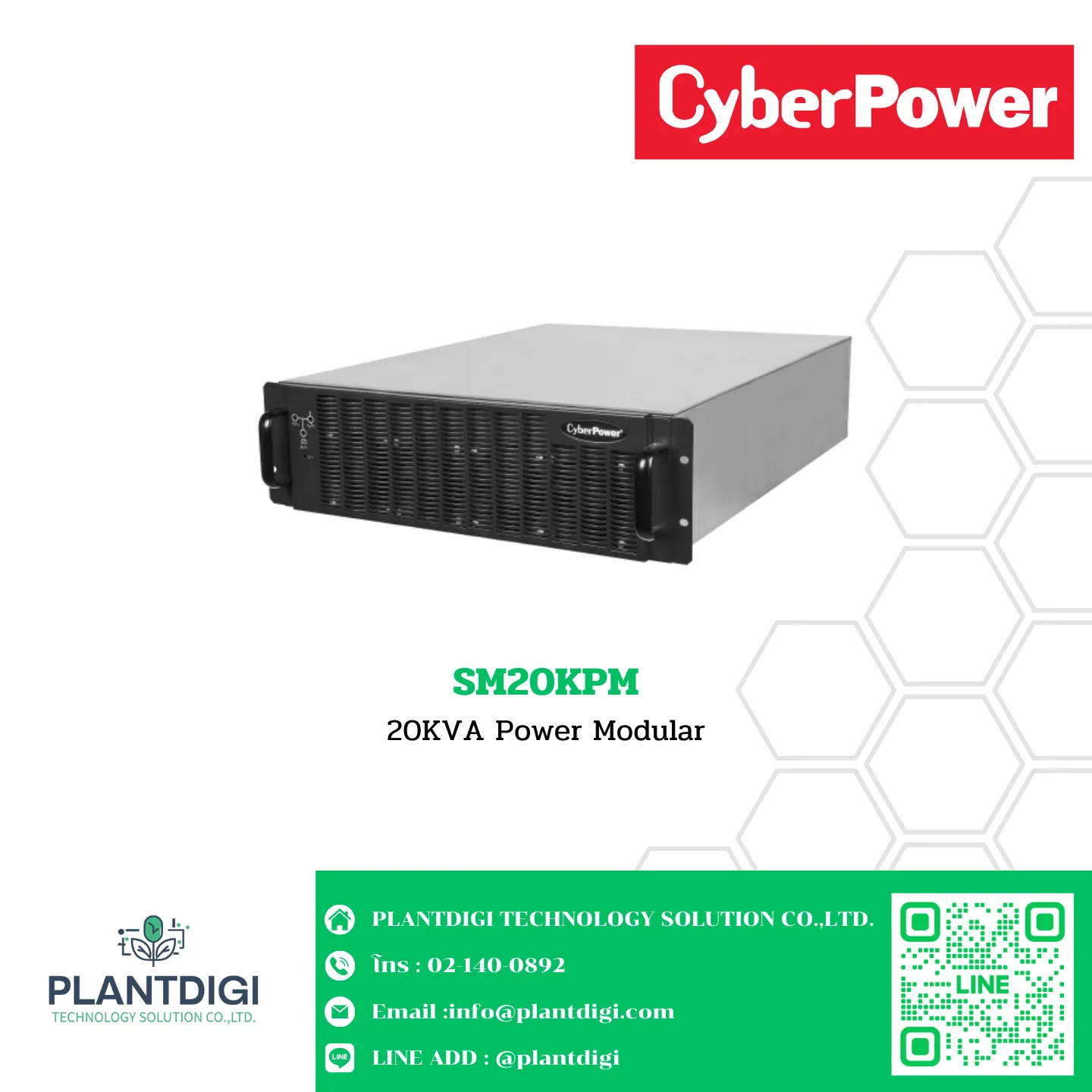

CyberPower SM20KPM
20KVA Power Modular
CyberPower Modular UPS (3-Phase) SCALABLE UPS TO GUARANTEE ULTIMATE POWER PROTECTION The 3-Phase Modular UPS with N+X redundancy design and hot-swappable modularity for mission-critical applications
——–
General
——–
Phase: Three Phase
Form Factor: Modular
UPS Topology: Online Double Conversion
Energy Saving Technology: ECO Mode Efficiency > 98%
Normal Mode Efficiency ( % ): 95%
Battery Mode Efficiency ( % ): 95%
Active PFC Compatibility: Yes
Parallel Expansion (Max. Units): 20
——
Input
——
Nominal Input Voltage ( Vac ): Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac
Input Voltage Range ( Vac ): Line to Line (L-L): 228 ~ 478 Vac, Line to Neutral (L-N): 132 ~ 276 Vac
Configurable Voltage Range ( Vac ): Line to Line (L-L): 380 ~ 435 Vac, Line to Neutral (L-N): 220 ~ 250 Vac
Input Frequency ( Hz ): 50 ± 3, 60 ± 3
Input Frequency Range ( Hz ): 40 ~ 70
Rated Input Current ( A ): 28
Current Harmonic ( % ): 3%
Input Power Factor: 0.99
——-
Output
——-
Capacity (VA): 20000
Capacity (Watts): 18000
On Battery Waveform: Pure Sine Wave
Output Voltage Setting: Configurable
Output Frequency Setting: Configurable
Rated Output Voltage ( Vac ): Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac
Output Voltage Tolerance ( % ): 1 %
Output Frequency ( Hz ± % ): 50 ± 0.1, 60 ± 0.1
Power Factor: 0.9
ECO Mode Voltage Tolerance: ± 10 %
Overload Protection: Internal Current Limiting, Fuse
Overload Protection (Line Mode): 105~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load Immediately
Overload Protection (Battery Mode): 105~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load Immediately
Overload Protection (Bypass Mode): 125~130% Load for 60 min, 130~150% Load for 6 min, >150% Load Immediately
Crest Factor: 3 : 1
Harmonic Distortion (Linear Load): THD＜1%
Harmonic Distortion (Non-linear Load): THD＜5.5%
Internal Bypass: Automatic Bypass, Manual Bypass
Maintenance Bypass: Yes
Typical Transfer Time ( ms ): 0
——–
Battery
——–
Recharge Power ( % ): Default 10% (Selectable from 1~20% x UPS Capacity)
Recharge Power Setting: Configurable
Charger Voltage Tolerance ( % ): ≤ 1 %
Smart Battery Management (SBM): Yes
—————————–
Surge Protection & Filtering
—————————–
EMI/RFI Filtration: Yes
—————————-
Management & Communications
—————————-
LED Indicators: Yes
———
Physical
———
Enclosure Construction: Metal
Color: Black
Ingress Protection: IP20
Rackmount Ears: Yes
—————————
Physical Size – Power Module
—————————
Dimensions (WxHxD) (mm.): 440 x 134 x 590
Weight (kg.): 22.5
——————–
Shipping Dimensions
——————–
Dimensions (WxHxD) (mm.): 620 x 235 x 780
Weight (kg.): 28.5
————–
Environmental
————–
Operating Temperature (°F): 32 ~ 104
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 90
Operating Elevation ( feet/meters ): ≤1000, Load Derated 1% per 100m from 1000m and 2000m
Storage Temperature (°F): -40 ~ 158
Storage Temperature (°C): -40 ~ 70
Storage Relative Humidity (Non-condensing) ( % ): 0 ~ 95
Audible Noise at 1.0M from Surface of Unit ( dBA ): 55
—————
Certifications
—————
Certifications: CE, IEC62040-1, IEC62040-2
—————-
Product Contents
—————-
Documentation: User’s Manual
———
WARRANTY
———
Product Warranty Period (Year): 2
