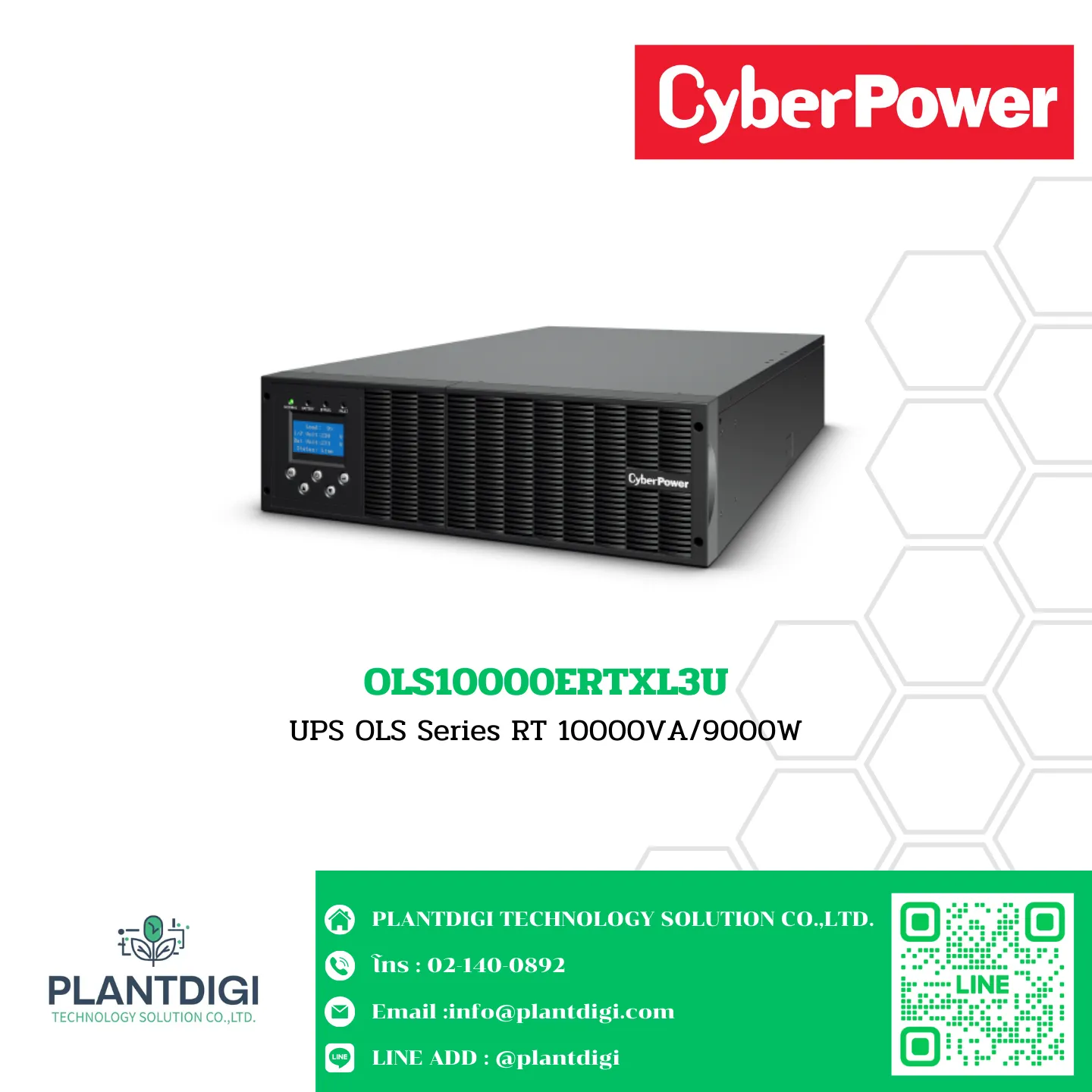

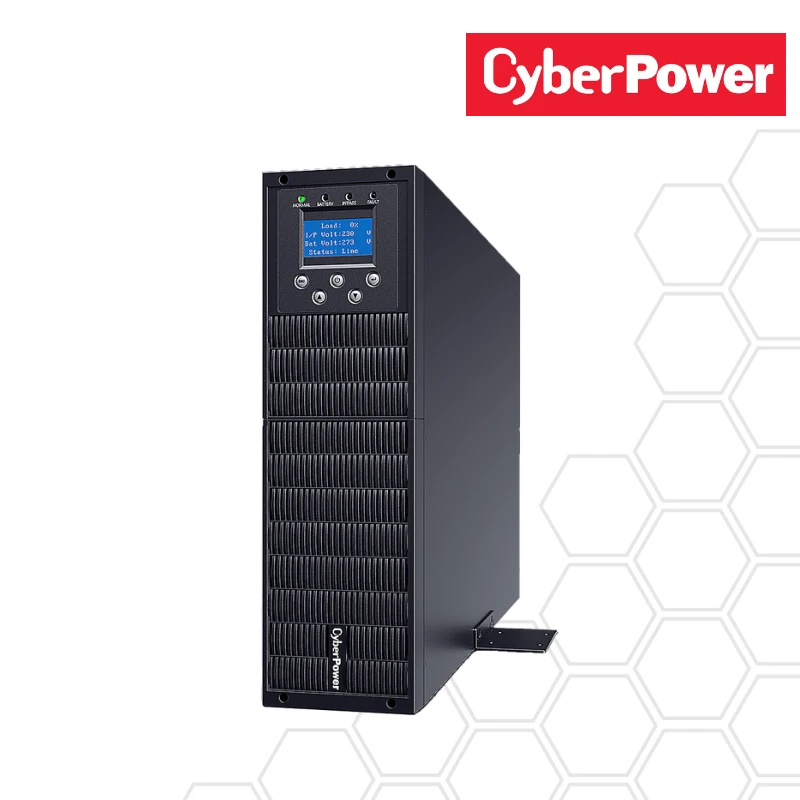

CyberPower OLS10000ERTXL3U
UPS OLS Series RT 10000VA/9000W
CyberPower Online S (Premium) TRUSTWORTHY ONLINE UPS TO PROTECT DATA CENTER The high-quality online double-conversion UPS that offers the ideal power protection for heavily loaded equipment
——–
General
——–
Phase: Single Phase
Form Factor: Rackmount, Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: ECO Mode Efficiency > 95%
Active PFC Compatibility: Yes
——
Input
——
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): 230
Input Voltage Range ( Vac ): 110 ~ 276
Adjustable Voltage Range ( Vac ): 0~80% Load for 110 ~ 276 Vac, 0~100% Load for 176 ~ 276 Vac
Input Frequency ( Hz ): 50 ± 5, 60 ± 5
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 45.5
Input Power Factor: 0.99
Input Connector Type: Hardwire Terminal Block
——-
Output
——-
Capacity (VA): 10000
Capacity (Watts): 9000
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 208 ± 1 %, 220 ± 1 %, 230 ± 1 %, 240 ± 1 %
Output Voltage Setting: Configurable
On Battery Frequency ( Hz ): 50 ± 0.1%, 60 ± 0.1%
Output Frequency Setting: Configurable
Power Factor: 0.9
ECO Mode Voltage Tolerance: ± 10 %
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode): 105~125% Load for 10 min, 125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec
Overload Protection (Battery Mode): 105~125% Load for 2 min, 125~150% Load for 30 sec, >150% Load for 1 sec
Overload Protection (Bypass Mode): 125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec
Crest Factor: 3 : 1
Harmonic Distortion (Linear Load): THD＜2%
Harmonic Distortion (Non-linear Load): THD＜5%
Internal Bypass: Automatic Bypass
Outlet(s) – Total: 1
Outlet Type: Hardwire Terminal Block x 1
Typical Transfer Time ( ms ): 0
——–
Battery
——–
Maximum Charging Current ( A ): 4
Start On Battery: Yes
Smart Battery Management (SBM): Yes
User-replaceable: No
Compatible Extended Battery Module (EBM): BPSE240V75ART3UOA
Max. EBM Quantity ( pcs ): 15
——————————
Surge Protection & Filtering
——————————
Surge Suppression ( Joules ): 445
EMI/RFI Filtration: Yes
—————————-
Management & Communications
—————————-
LCD Panel: Yes
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting
LED Indicators: Line Mode, Battery Mode, Bypass Mode, UPS Fault
HID Compliant USB Port(s): 1
Dry Contact (with Relay): Optional
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
Management Cable ( pcs ): USB Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes – with optional RMCARD205
———
Physical
———
Enclosure Construction: Metal
Color: Black
Rackmount Rail: Yes
—————————
Physical Size – Power Module
—————————
Dimensions (WxHxD) (in.): 17.24 x 5.14 x 26.77
Dimensions (WxHxD) (mm.): 438 x 130.5 x 680
Weight (lbs.): 44.1
Weight (kg.): 20
Installed Rack Height ( U ): 3
——————–
Shipping Dimensions
——————–
Dimensions (WxHxD) (in.): 21.69 x 11.14 x 34.13
Dimensions (WxHxD) (mm.): 551 x 283 x 867
Weight (lbs.): 62.4
Weight (kg.): 28.3
————–
Environmental
————–
Operating Temperature (°F): 32 ~ 104
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ): 20 ~ 90
Operating Elevation ( feet/meters ): ≤1000, Load Derated 1% per 100m from 1000m and 2000m
Storage Temperature (°F): 5 ~ 113
Storage Temperature (°C): -15 ~ 45
Storage Relative Humidity (Non-condensing) ( % ): 0 ~ 95
Storage Elevation ( feet/meters ): 0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation ( BTU/hr ): 2672
Audible Noise at 1.5M from Surface of Unit ( dBA ): 60
—————
Certifications
—————
Certifications: CE
RoHS: Yes
———
WARRANTY
———
Product Warranty Period (Year): 2
Battery Warranty Period (Year): 2
Connected Equipment Guarantee: 100,000 EUR ; 2 years
