เครื่องสำรองไฟ Eaton 9PX รุ่น 9PX1000IRT (9103-53748)

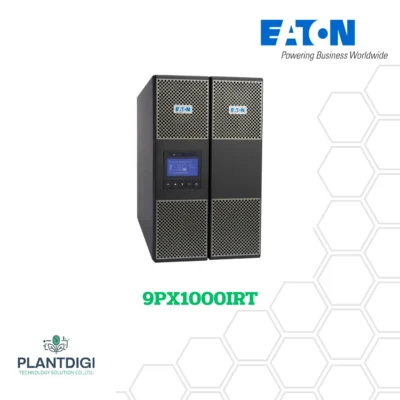

Eaton 9PX1000IRT

(9PX 1000I RT2U)

The Eaton 9PX1000IRT is a UPS that provides 1000 VA and 1000 W of power protection. It’s designed for both rack and tower setups, ensuring network and IT equipment stay operational during power disruptions.  Additionally, it supports extended battery modules for longer backup times.

Overview

The 9PX1000IRT offers 1000VA/1000W power capacity, ideal for sustaining critical infrastructure during power outages. It leverages double-conversion topology for maximum reliability and performance.

Key Features

• Output Power: 1000VA/1000W
• High Efficiency: Up to 91% efficiency, reducing energy and cooling costs
• Input Voltage Range: 100-276V
• Output Voltage Range: 200/208/220/230/240V±1%
• LCD Display: Graphical interface showing UPS status and key metrics
• Energy Metering: Monitors kWh values with integrated software
• Battery Management: Hot-swappable batteries with Advanced Battery Management (ABM) technology
• Connectivity: Supports Serial, USB, and relay connections
• Compatibility: Virtual environments like VMware, Hyper-V, Citrix Xen, Redhat
• Form Factor: Rack or tower adaptable, fitting 2U space
• Internal Bypass: Ensures continuity during internal faults
• Noise Level: Less than 35 dB

Specifications

• Efficiency: 91% in online double-conversion mode
• Input Voltage Range: 100-276V
• Output Voltage Range: 200/208/220/230/240V±1%
• Power Factor: 1 (Unity power factor)
• Connectivity: Serial, USB, relay
• Display: Graphical LCD
• Form Factor: 2U, adaptable for rack or tower
• Battery Management: Features ABM technology for extended battery life
• Bypass Mechanism: Internal bypass included
