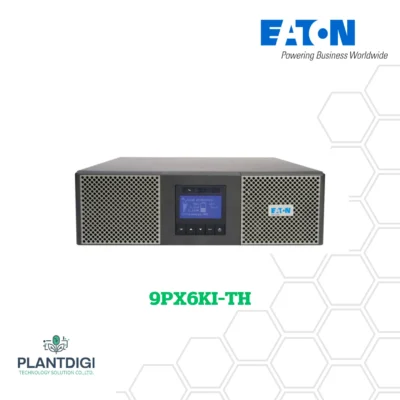

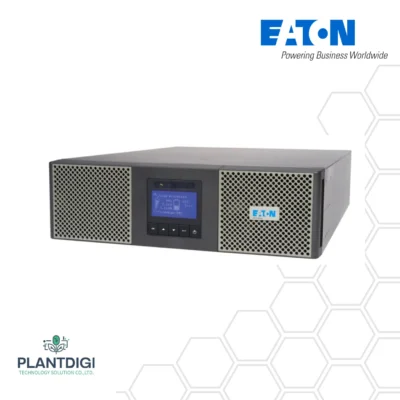

เครื่องสำรองไฟ Eaton 9PX รุ่น 9PX6KiRT

Eaton 9PX6KiRT

(9PX6KI-TH)

Eaton 9PX UPS, TH, 3U, 6000 VA, 5400 W, Input: hardware L-N-PE, 230V，Output: (8)IEC C13,(2)IEC C19, 230V

———————–
General specifications
———————–
Product Name: Eaton 9PX UPS
Catalog Number: 9PX6KI-TH
Product Length/Depth: 440 mm
Product Height: 130 mm
Product Width: 685 mm
Product Weight: 48 kg
Compliances: CE Marked
Certifications: IEC 61000-4, IEC/EN 62040-2, IEC/EN 62040-1, EN 62040-3

——–
Battery
——–
Runtime graph: View runtime graph
Battery quantity: 15
Battery rating: 12V/5Ah
Battery type: Sealed, lead-acid

——————
Electrical output
——————
Receptacle: Hardwired
Output power factor: 0.9
Output waveform: Sine wave
Voltage: 230V
VA rating: 6000 VA
Wattage: 5400 W
Output nominal voltage: 230V default (200/208/220/230/240V)
Voltage distortion output (linear load) – max: 2%
Feed type: 1
Topology: Online/Double-conversion

—————–
Electrical input
—————–
Input nominal voltage: 230V default (200/208/220/230/240V)
Nominal frequency: 50/60 Hz
Input frequency range: 40-70 Hz
Input power factor: >.99

—————
การสื่อสาร
—————
Expansion slots: One slot for optional communication card
Ethernet interface: No
Includes network card: No
Software compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
User interface: Multilingual graphical LCD display

————–
สภาพแวดล้อม
————–
Altitude: <1000m for nominal power, 10% power degrading every 1000m (up to 3000m)
Noise level: <45 dB at 1 meter
Relative humidity: 0-95% non-condensing
Temperature range: 0° to 40°C (32° to 104°F)

—————
ข้อมูลจำเพาะเพิ่มเติม
—————
Form factor: Rack/tower
Rack size: 3U
Construction type: 482.6 mm (19 inch) device
Color: Black/silver
Rack mounting kit: No
Package contents: 9PX Power module, USB Cable, Serial Cable, 2 supports for tower mounting, Safety guide, Quickstart
Efficiency: Up to 94%
Phase (input): Single-phase
Phase (output): Single-phase
Surge protection: Yes
Internal bypass: Yes
Hot swap power: No
Auto shutdown function: Yes
