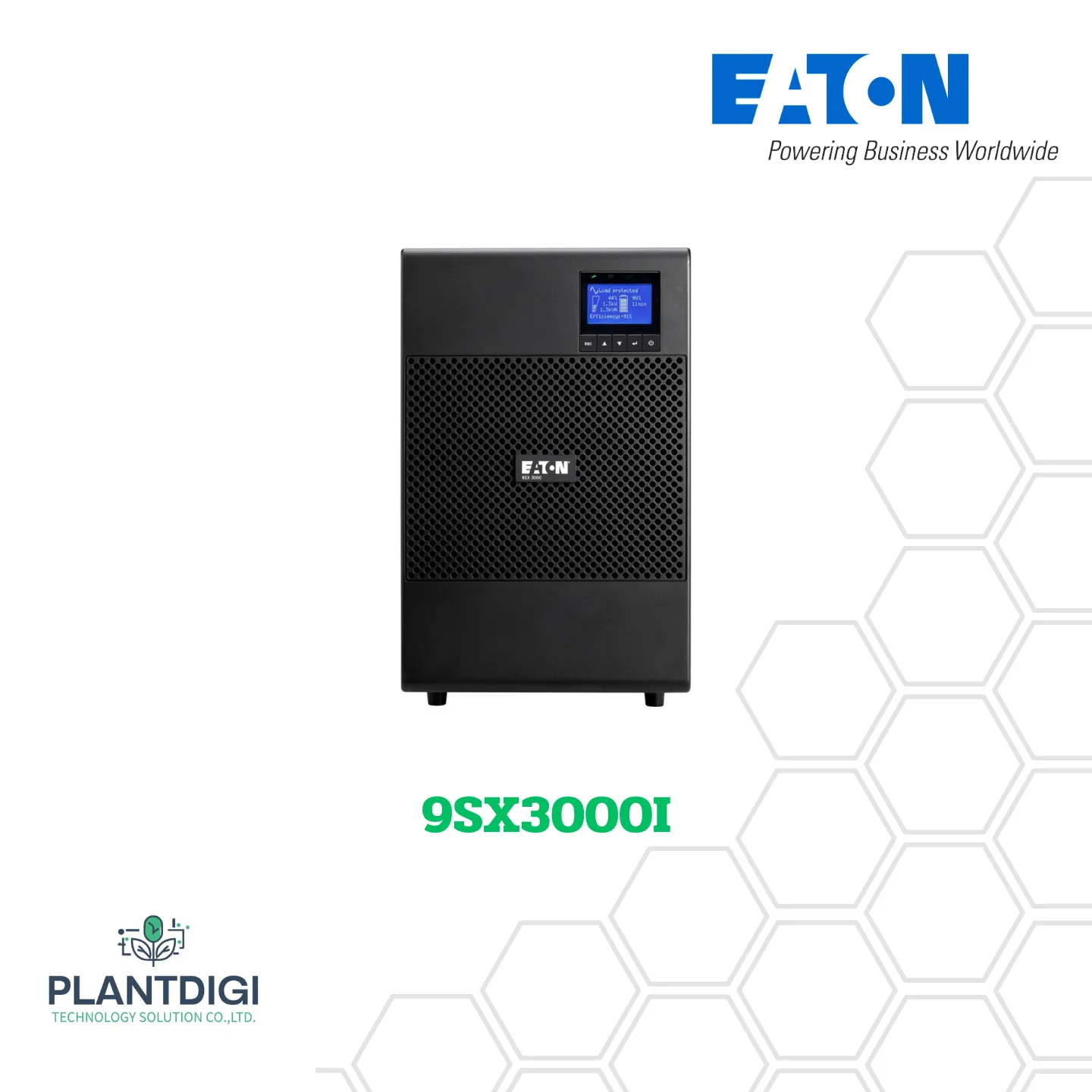

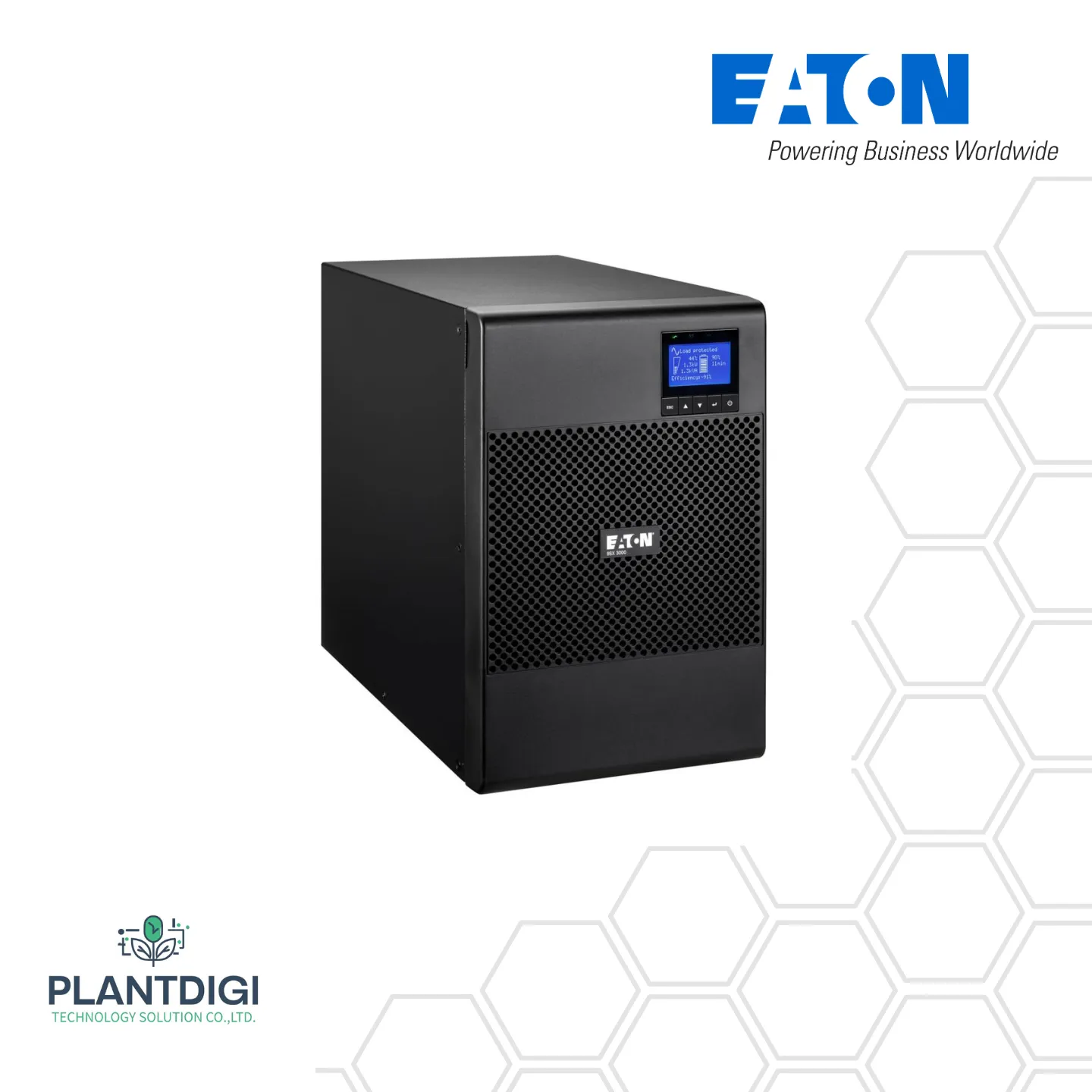

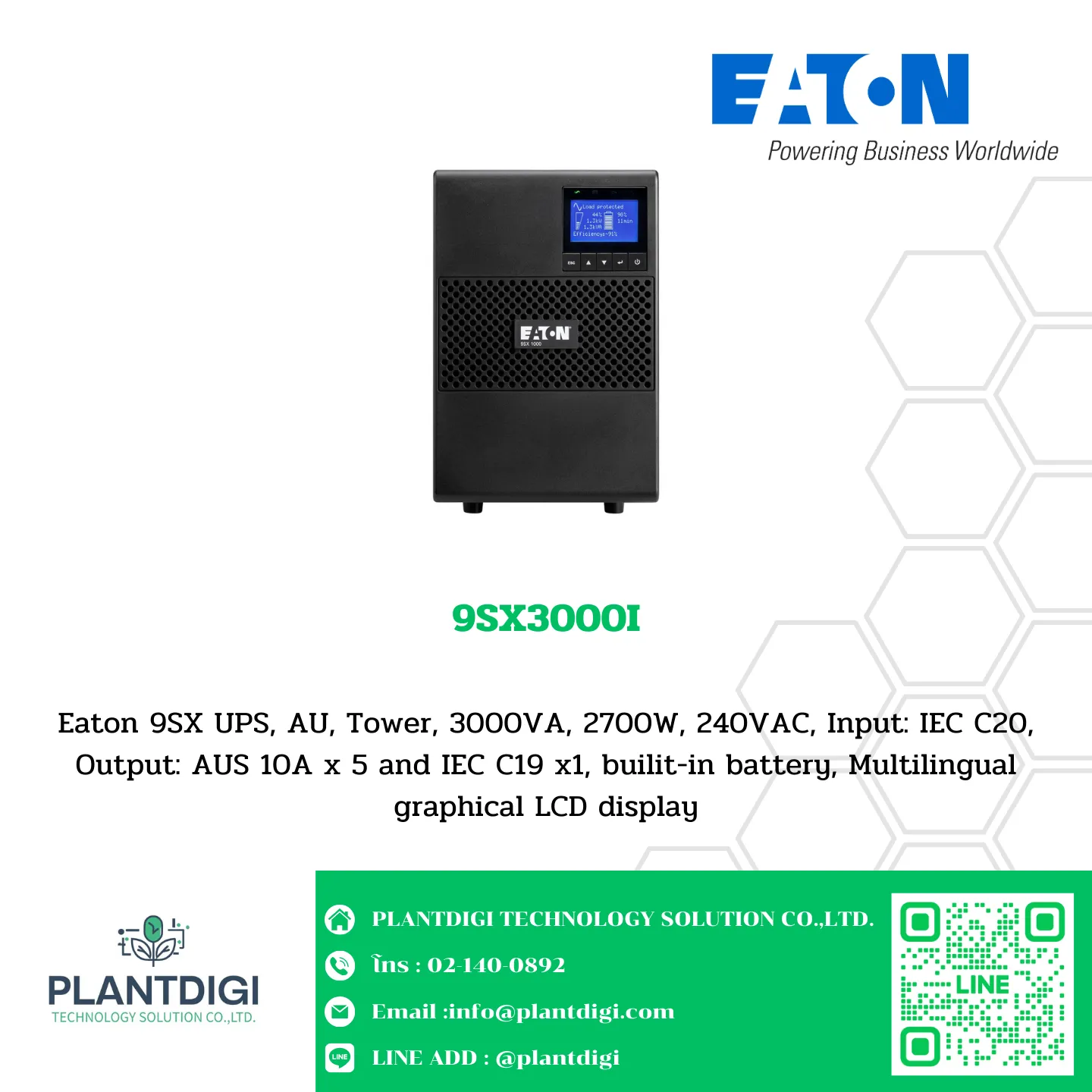

Eaton 9SX3000I
9SX UPS, 3000 VA, 2700 W, Input: C20, Outputs: (8) C13, (1) C19, Tower
——–
ข้อมูลทั่วไป
——–
Product Name: Eaton 9E UPS
Catalog Number: 9SX3000I-AU
Product Length/Depth: 214 mm
Product Height: 346 mm
Product Width: 412 mm
Product Weight: 33.4 kg
Compliances: CE Marked, CB, RCM
Certifications: IEC/EN 62040-1, IEC/EN 62040-2, IEC 61000-4, EN 62040-3
UPS Specifications
Topology: Online/Double-conversion
Form factor: Tower
Construction type: Free standing model
Color: Black
VA rating: 3000 VA
Wattage: 2700 W
Internal bypass: Yes
Hot swap power: No
Auto shutdown function: Yes
Input Specifications
Input nominal voltage: 240V
Nominal frequency: 50/60 Hz
Input frequency range: 40-70 Hz
Output Specifications
Receptacle: (8) C13, (1) C19
Output waveform: Sine wave
Voltage: 240V
Output nominal voltage: 240V
Voltage type: AC
Battery Specifications
Battery replacement: Hot swappable
Battery type: Sealed, lead-acid
Extended battery capability: Yes
Additional Features
Expansion slots: One slot for optional communication card
Includes network card: No
Software compatibility: Eaton Intelligent Power Manager, Intelligent Power Protector
User interface: Multilingual graphical LCD display
Environmental Specifications
Altitude: <1000m for nominal power, 10% power degrading every 1000m (up to 3000m)
Noise level: <45 dB at 1 meter
Relative humidity: 0-96% non-condensing
Temperature range: 0° to 40°C (32° to 104°F)
Input voltage range: 200-276 Vac without derating (up to 140-276 Vac with derating)
Output frequency: 50/60 Hz
Output power factor: 0.9
Phase (input): Single-phase
Phase (output): Single-phase
