เครื่องสำรองไฟ Eaton 9SX รุ่น 9SX3000IR (9103-83962)

Eaton 9SX3000IR

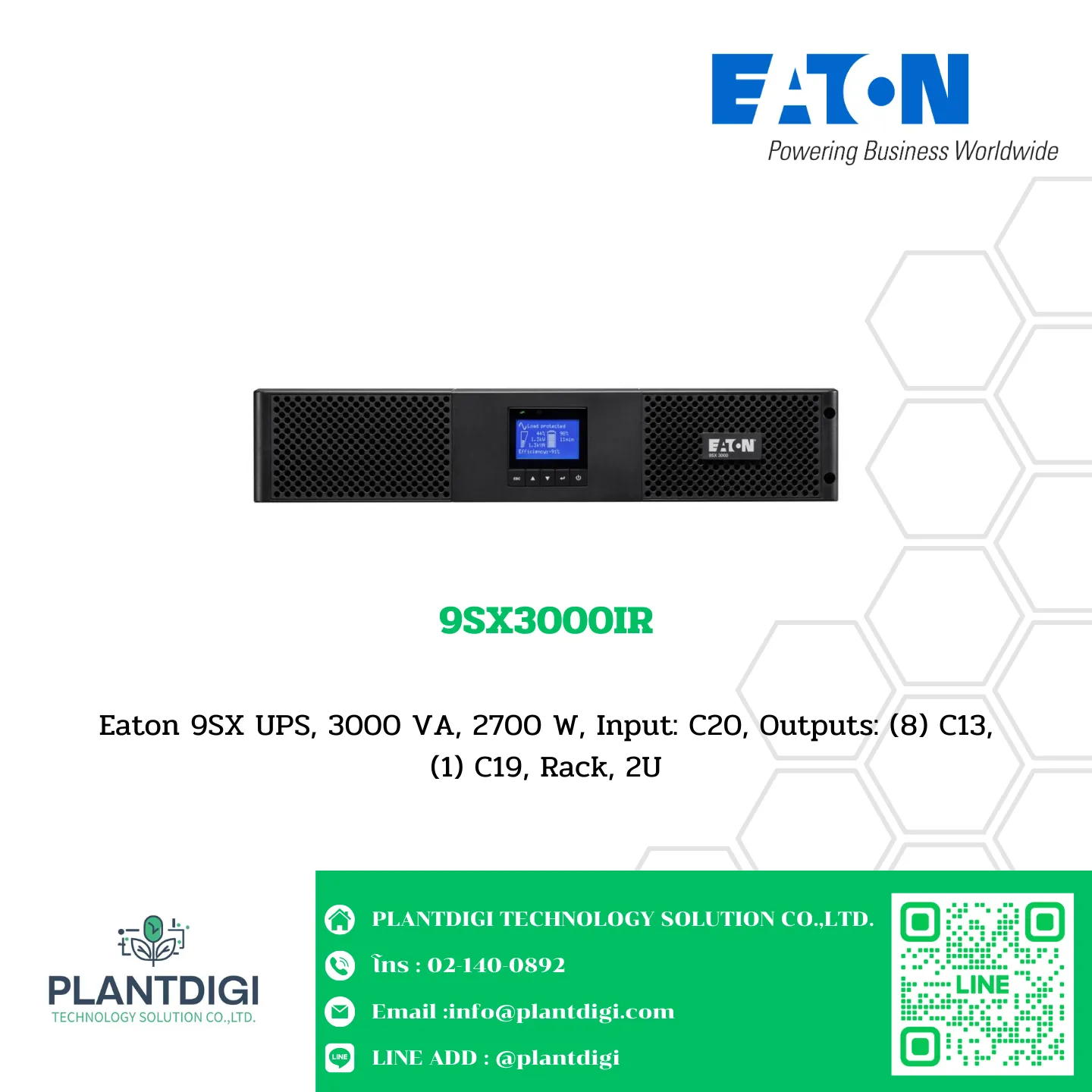

Eaton 9SX UPS, 3000 VA, 2700 W, Input: C20, Outputs: (8) C13, (1) C19, Rack, 2U

———————–
General specifications
———————–
Product Name: Eaton 9SX UPS
Catalog Number: 9SX3000IR
UPC: 743172091147
Product Length/Depth: 608 mm
Product Height: 86.5 mm
Product Width: 438 mm
Product Weight: 26.5 kg

——–
Battery
——–
Battery type: Sealed, lead-acid
Runtime graph: View runtime graph

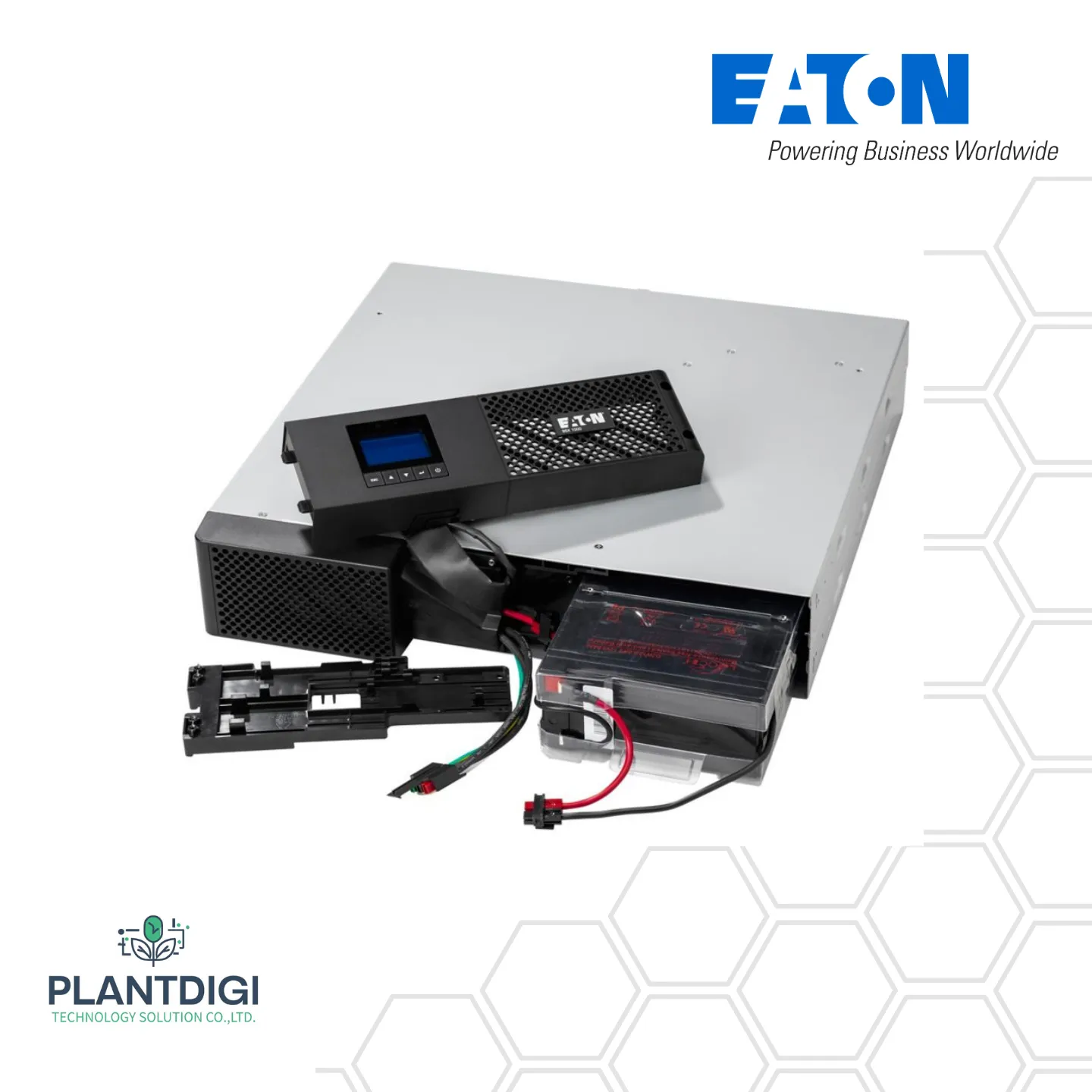

Battery replacement: Hot-swappable internal batteries and extended battery modules (EBMs)
Battery quantity: 6
Battery management: ABM & Temperature compensated charging method (user selectable), Automatic battery test, Deep discharge protection, Automatic recognition of external battery units
Battery rating: 12 V / 9 Ah
Extended battery capability: Yes

——————
Electrical output
——————

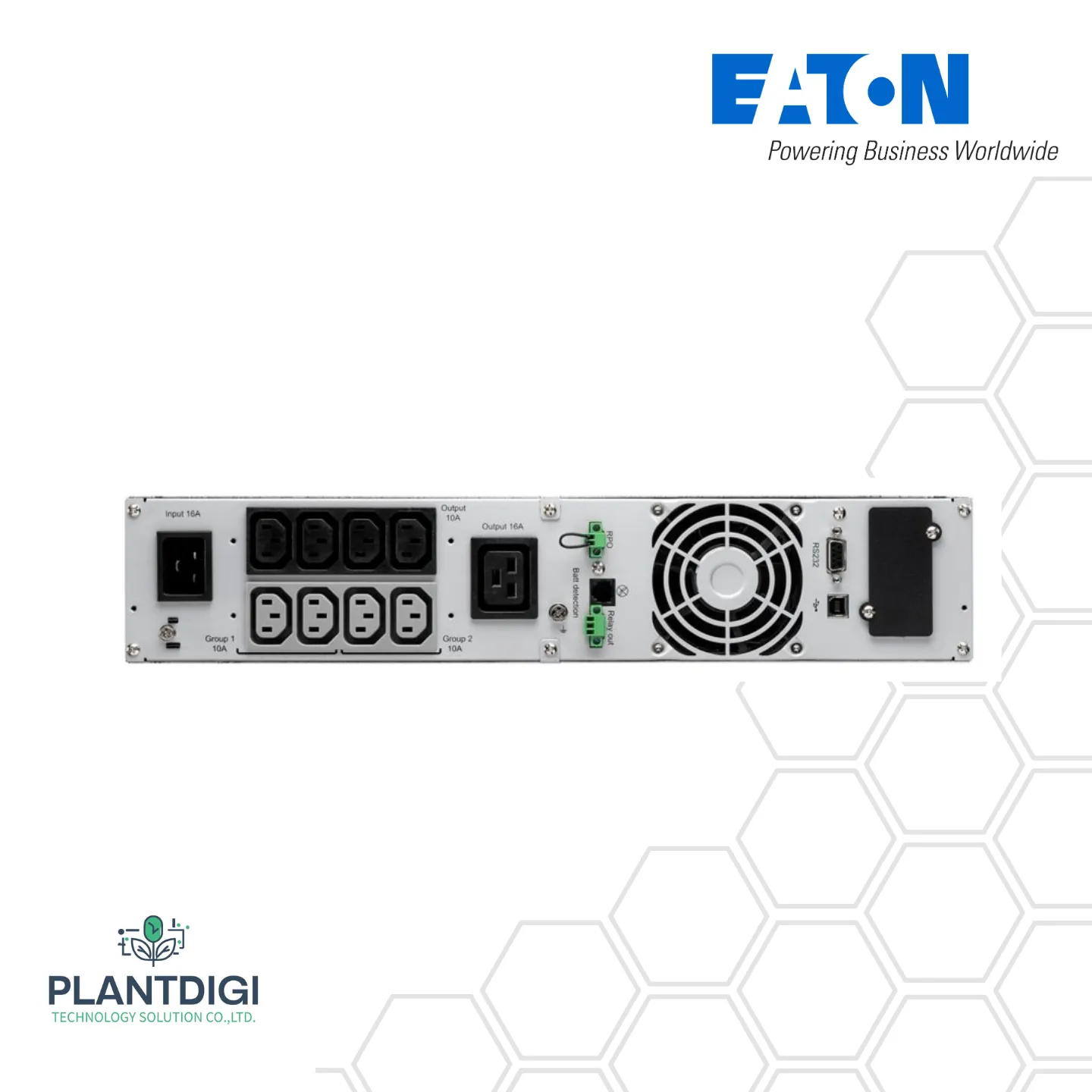

Receptacle: (8) C13, (1) C19
Voltage: 230V
Wattage: 2700 W
Output power factor: 0.9
Output voltage range: 200/208/220/230/240 V +/- 2%
Output waveform: Sine wave
Output nominal voltage: 230V default (200/208/220/230/240V)
Voltage distortion output (linear load) – max: 3
Feed type: 1
Topology: Online/Double-conversion
VA rating: 3000 VA

—————–
Electrical input
—————–
Input connection: C20
Input nominal voltage: 230V default (200/208/220/230/240/250V)
Nominal frequency: 50/60 Hz
Input power factor: >.99
Input cord length: 1.8m
Input voltage range: 200-276 Vac without derating (up to 140-276 Vac with derating)
Input frequency range: 40-70 Hz

—————
Communications
—————
Includes network card: No
Communication: USB port (HID compliant), Serial port (RS232), Mini-terminal block for remote power off, Mini-terminal block for output relay, Dry contacts (2 outputs, 1 input, optocoupler, DB9)
Ethernet interface: No

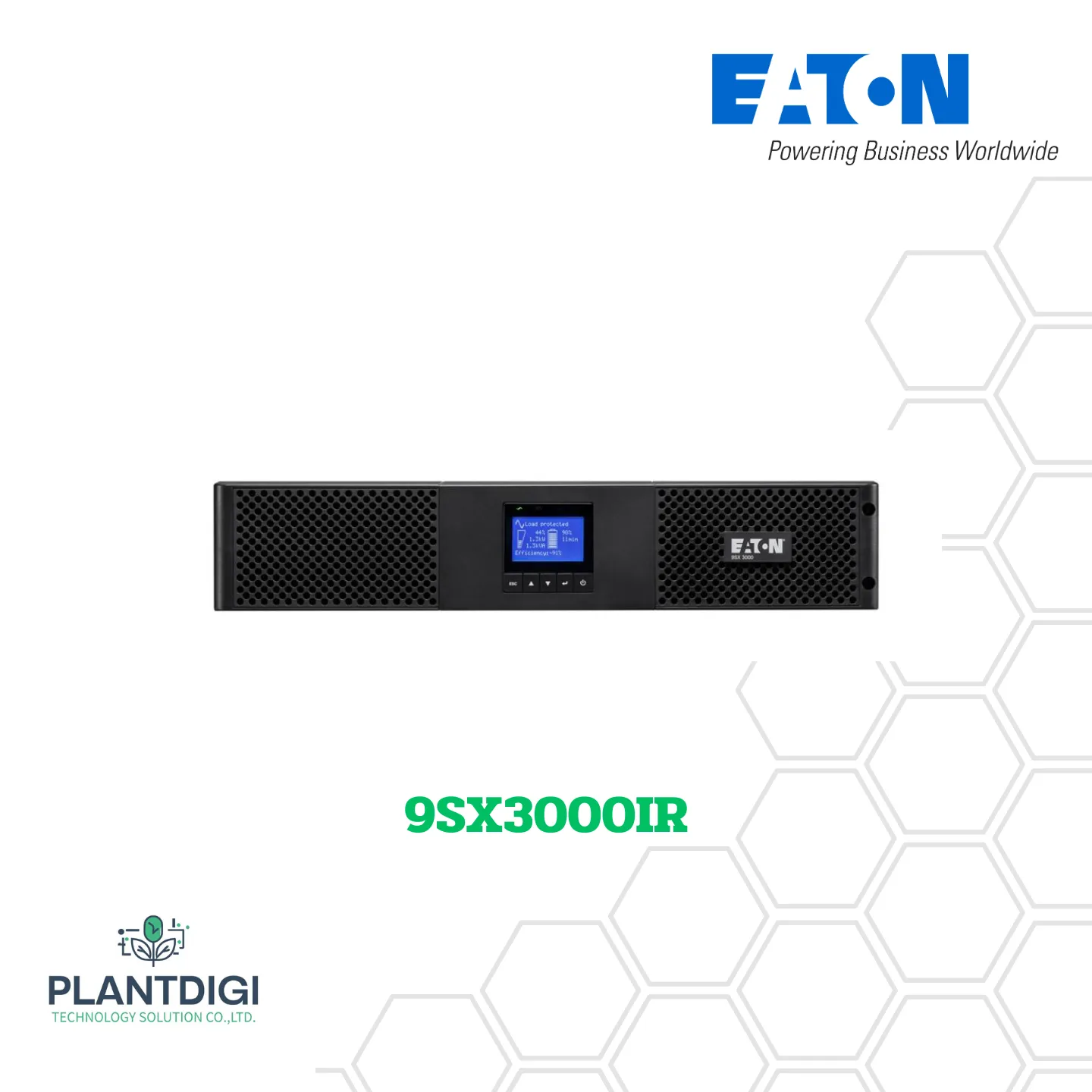

User interface: Multilingual graphical LCD display
Potential free switch contact: Yes
Expansion slots: One slot for optional communication card
Software compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Type of interface: Other

————–
Environmental
————–
Altitude: 3000 m
Noise level: <45 dB at 1 meter
Temperature range: 0° to 40°C (32° to 104°F)
Relative humidity: 0-96% non-condensing

————————–
Additional specifications
————————–

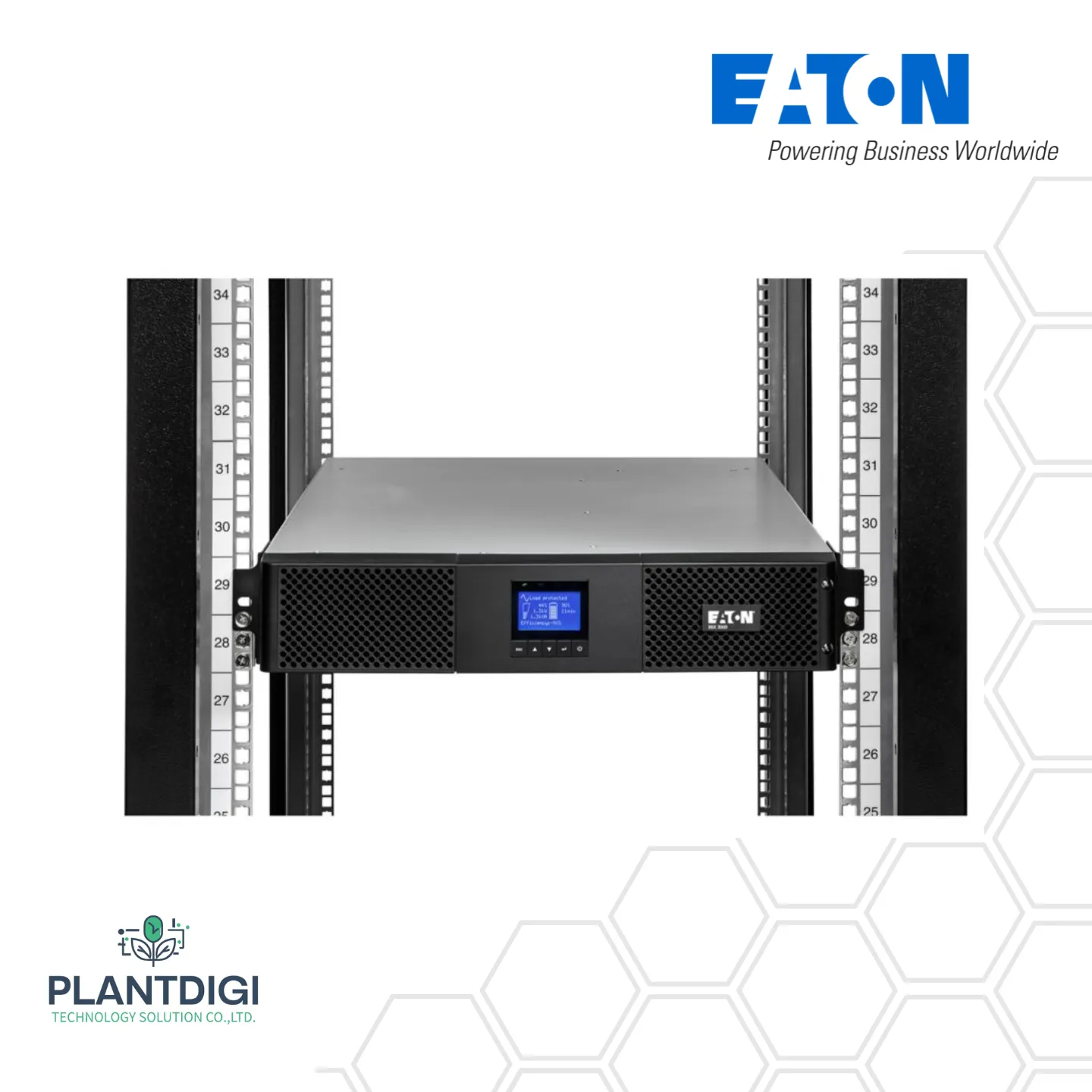

Construction type: 482.6 mm (19 inch) device
Package contents: UPS, Input cable, (2) IEC-IEC output cables, USB cable, Serial cable, (2) brackets for 19’ mounting, (2) Rack-mounting kit, Safety instructions, Quickstart guide
Phase (output): 1
Internal bypass: Yes
Auto shutdown function: Yes
Color: Black
Efficiency: 92
Rack mounting kit: Yes
Phase (input): 1
Hot swap power: No
