เครื่องสำรองไฟ Vertiv EDGE Series EDGE-1500IRT2UXL

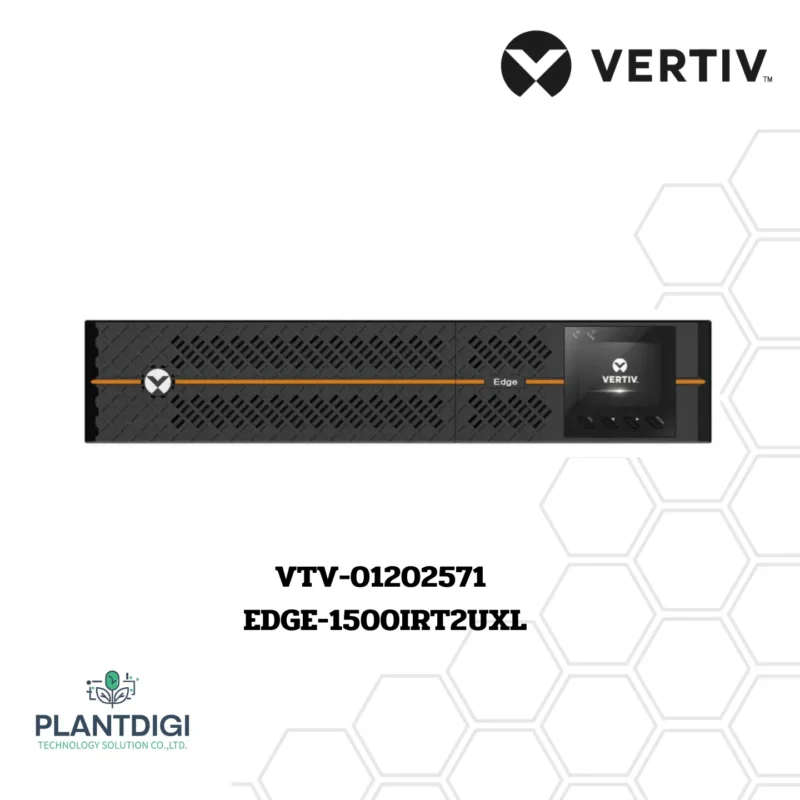

Vertiv EDGE-1500IRT2UXL

VTV-01202571 1500VA/1350W 230V PF0.9 Rack/Tower, 2U, Rail Kit Bundled, EBC supported

EDGE-1500IRT2UXL Vertiv Edge is a family of highly reliable, efficient, manageable and flexible line interactive sinewave UPSs, with models ranging from 500VA to 3000VA in tower, rack/tower and rack-mount form factors. With a 0.9 power factor, controllable outlets and extended runtime options, Vertiv Edge is the right choice for protecting server and networking equipment in distributed and Edge IT applications. Available in 1U and 2U options as well as a short-depth 3U 3000VA model, it can provide optimum runtime at the right size and power density in a cost effective UPS solution.

Model Number: EDGE1500IRT2UXL

Rating (VA/W): 1500 VA / 1350 W

Dimensions (mm)

• Unit (W x D x H): 438 x 510 x 86
• Shipping (W x D x H): 565 x 700 x 240

Weight (kg)

• Unit: 21
• Shipping: 26

Input AC Parameters

• Nominal Voltage Setting: 230V
• Voltage Range Without Battery Operation (230V default): 166 – 278
• Frequency Range (Hz): 45 – 65, autosensing

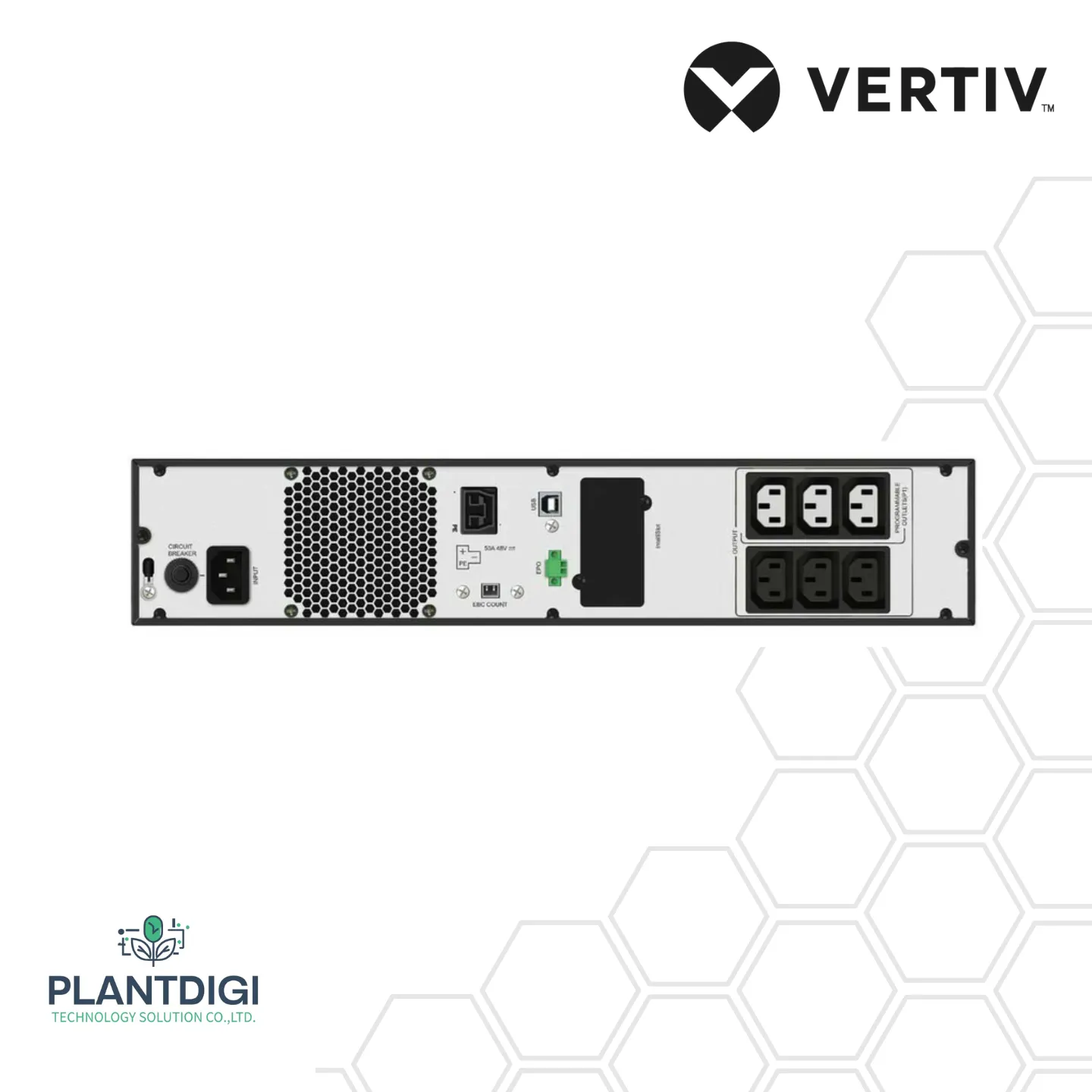

• Input Power Connector: IEC60320 C14
• Surge Protection (J): 624

Output AC Parameters

• Output Receptacles: 3 + 3 IEC60320 C13
• Output Receptacles – Controllable: Yes – 1 group
• Output Voltage: 200/208/220/230/240
• Waveform (Battery Operation): Pure sine wave
• Transfer Time: 4 – 6 ms Typical
• Output (AC Mode) Overload:
  • 106% – 125% @ 60 s
  • 126% – 150% @ 50 s
  • 151% – 200% @ 2 s
• Efficiency (full load, line mode, typical): 97%

Battery

• Type: Valve-regulated, non-spillable, lead acid
• Recharge Time (internal batteries, typical): 3 hr @ 90%
• Compatible External Battery Cabinet: GXT5-EBC48VRT2U

Environmental

• Operating Temperature (ºC): 0 to 40
• Storage Temperature (ºC): -25ºC to +55ºC without battery inside
• Relative Humidity (Operation): 20% to 90%
• Operating Altitude (m): 3000
• Audible Noise (line mode):
  • <40dB normal mode, <70% load
  • <45dB AVR mode, >70% load

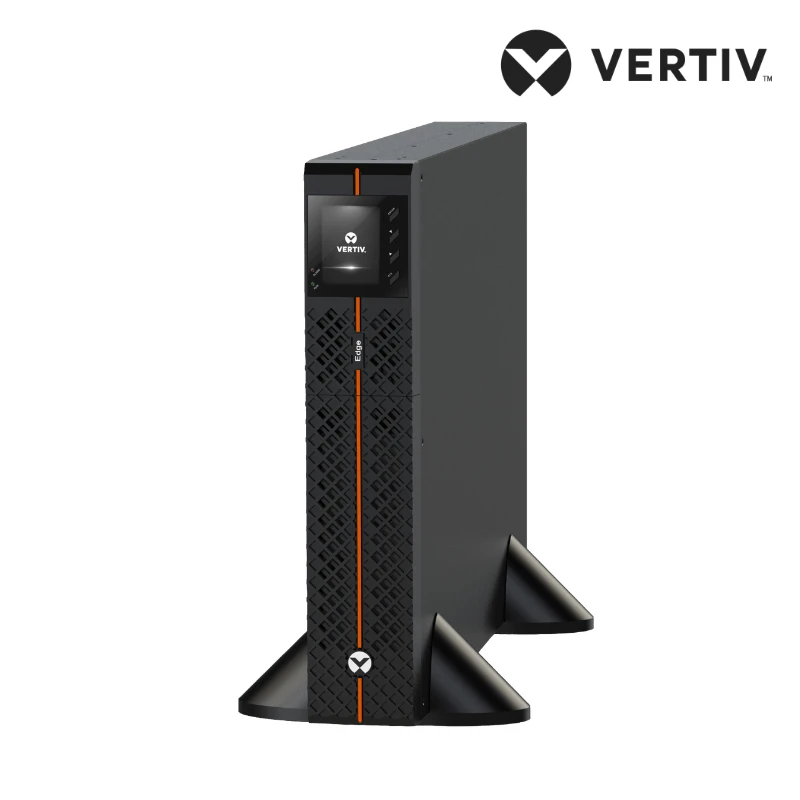

Form Factor: Rack / Tower (2U)

Agency Compliance: CE, CB Report, EAC, RCM, UKCA

Safety: IEC/EN62040-1

Transportation: ISTA 2A

Environmental: RoHS2 / REACH / WEEE
