เครื่องสำรองไฟ Vertiv PSA SOHO รุ่น PSA1500MT3-230U

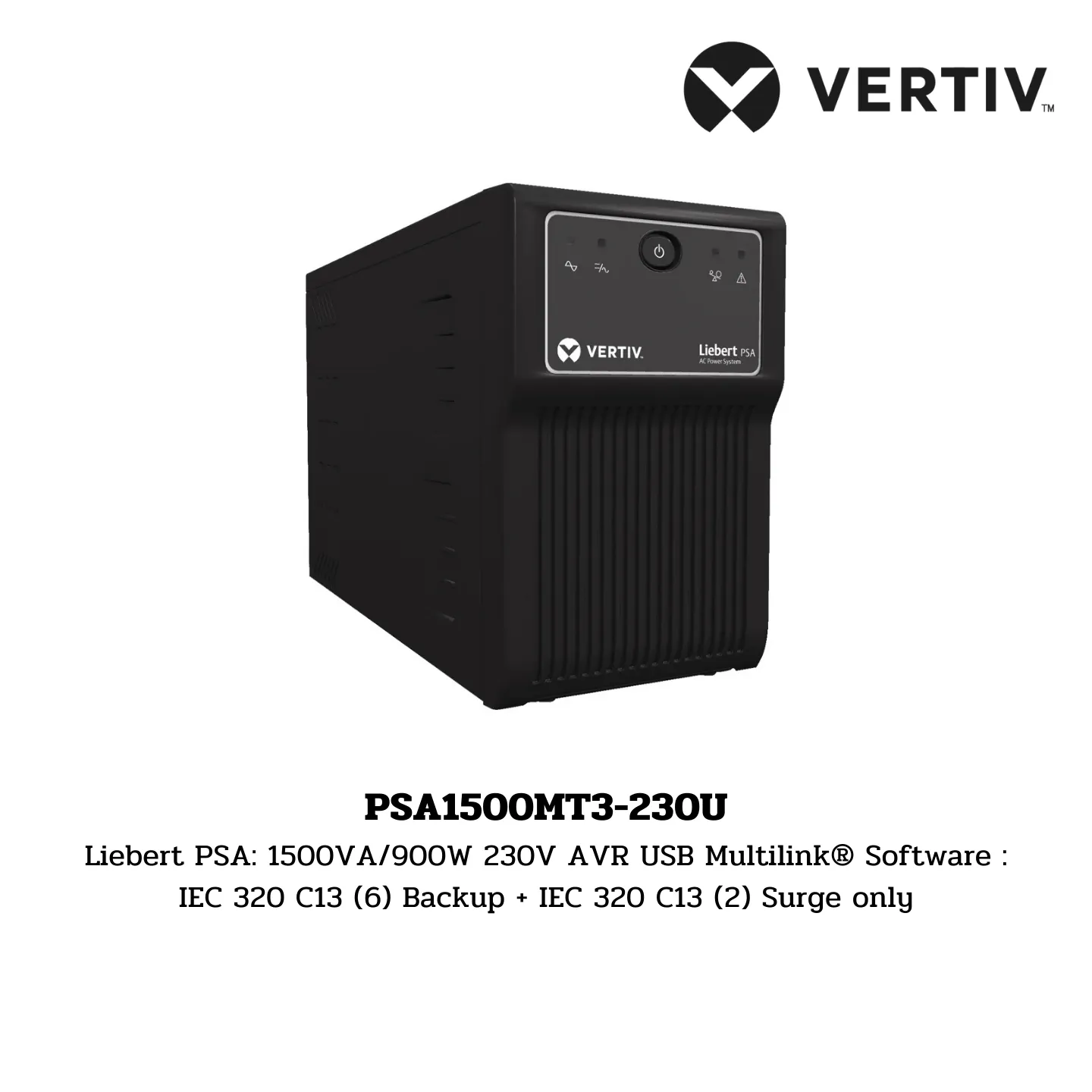

Vertiv PSA1500MT3-230U
Liebert PSA: 1500VA/900W 230V AVR USB Multilink® Software : IEC 320 C13 (6) Backup + IEC 320 C13 (2) Surge only

Specifications:

Capacity:

• 1500VA / 900W

Net Weight:

• 11.6 kg

Shipping Weight:

• 12.8 kg

Dimensions (W x D x H):

• 147 x 360 x 234 mm

On-Line Mains Voltage:

• 160-287VAC

On-Line Frequency:

• 50/60Hz ±5Hz

Output Voltage (Mains Normal):

• Typical 185-252VAC

Output Voltage (Battery Operation):

• 230VAC ±5%

On-Battery Wave Form:

• Stepped Sinewave

Battery Type – VDC x Ah – Quantity:

• 12V x 9Ah x 2

Typical Recharge Time:

• 6-8 hours to 90%

Battery Run Time (Full load):

• 3-5 minutes

Battery Run Time (Half load):

• 10-13 minutes

Audible and Visual:

• Audible alarm / LED

Backup Sockets:

• IEC 320 C13 (6)

Surge Sockets:

• IEC 320 C13 (2)

Operating Temperature:

• 0 to 40°C

Storage Temperature:

• -15 to 40°C

Operating / Storage Relative Humidity:

• 0%-90%, non-condensing
