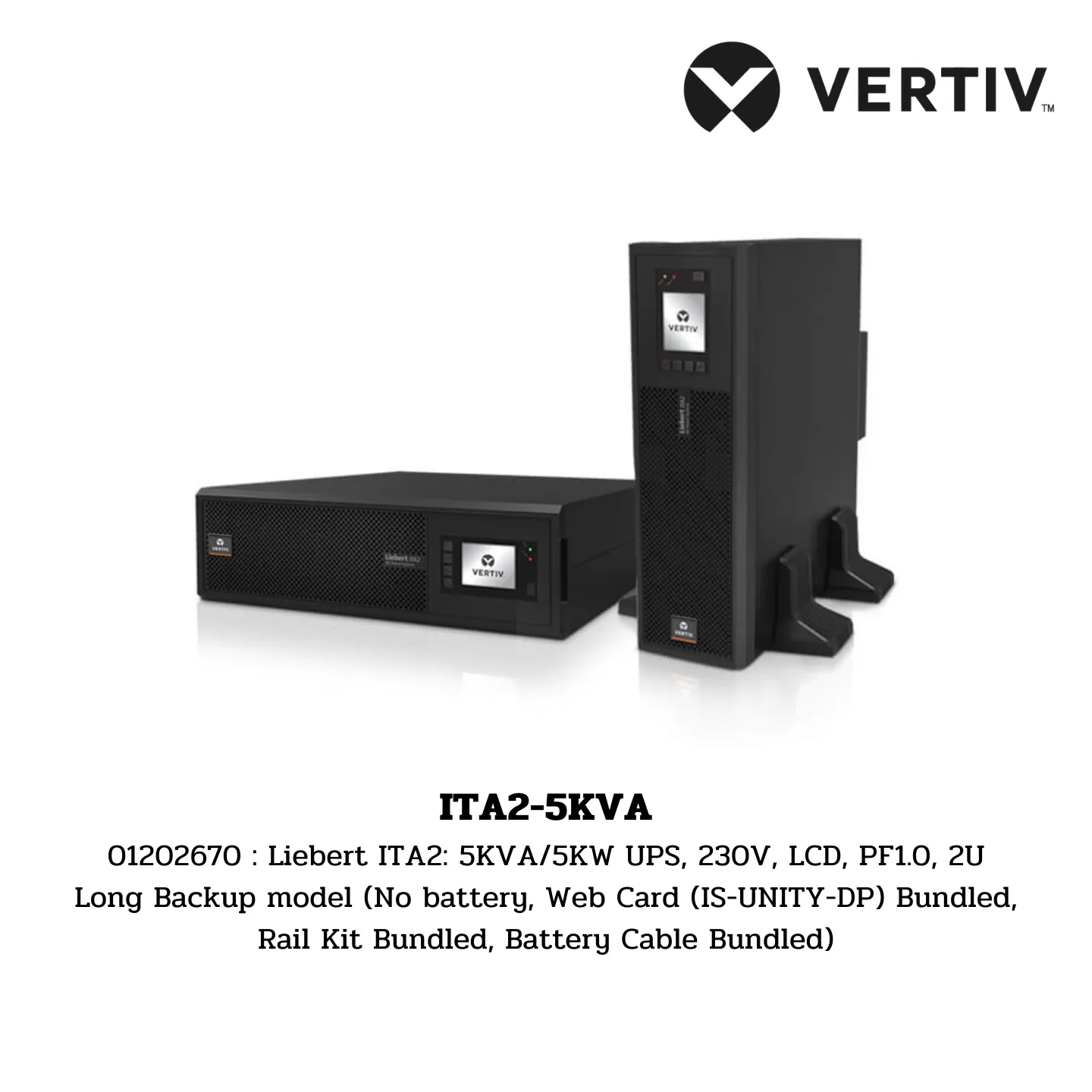

เครื่องสำรองไฟ Vertiv Liebert ITA2: 5KVA/5KW [ITA2-5KVA] (01202670)

ITA2-5KVA

01202670 : Liebert ITA2: 5KVA/5KW UPS, 230V, LCD, PF1.0, 2U Long Backup model (No battery, Web Card (IS-UNITY-DP) Bundled, Rail Kit Bundled, Battery Cable Bundled)

Specifications:

Input Parameters:

• Nominal Input Voltage: 220/230/240VAC 1-Phase, 2 Wire
• Input Voltage Range: 176-288VAC at full load; 100-176VAC at linear derating; 100VAC at half load
• Nominal Input Frequency: 50/60 Hz
• Input Frequency Range: 40-70 Hz
• Input Power Factor: 0.99
• Current THD at Full Linear Load (THDi%): <3

Battery:

• Battery Blocks Per String: 12*, 15, 16, 17, 18, 19, 20
• Battery Charger Max. Power: 5A
• Battery Option P/C: ITA-BCI0020K01 (built-in battery module of 16 blocks x 12V x 9Ah)
• Battery Cabinet Dimensions (W x D x H): 430 mm x 739 mm x 85 mm

Output:

• Nominal Output Voltage: 220/230/240 (1-phase)
• Nominal Output Frequency: 50/60 Hz
• Rated Power Factor: Unity (1.0)
• Voltage Harmonic Distortion: <2% for Linear loads & <5% for Non-linear loads
• Overload Capacity: At 25°C: 105% ~ 125%, 5min; 125% ~ 150%, 1min; 150%, 200ms
• Crest Factor: 3:1

Efficiency:

• Online Mode Efficiency: Up to 95.5%
• ECO Mode Efficiency: Up to 99%

Dimensions and Weight:

• Dimensions (W x D x H): 430 mm x 450 mm x 85 mm
• Weight: 11 kg

General:

• Noise at 1 m (dBA): 55
• Operating Temperature: 0 ~ 50°C
• Relative Humidity: 5 ~ 95%, non-condensing
• Altitude: ≤3000m

Certifications:

• General and Safety Requirements for UPS: IEC/EN 62040-1
• EMC Requirements for UPS: IEC/EN 62040-2
• UPS Classification According to IEC 62040-3: VFI-SS-111
