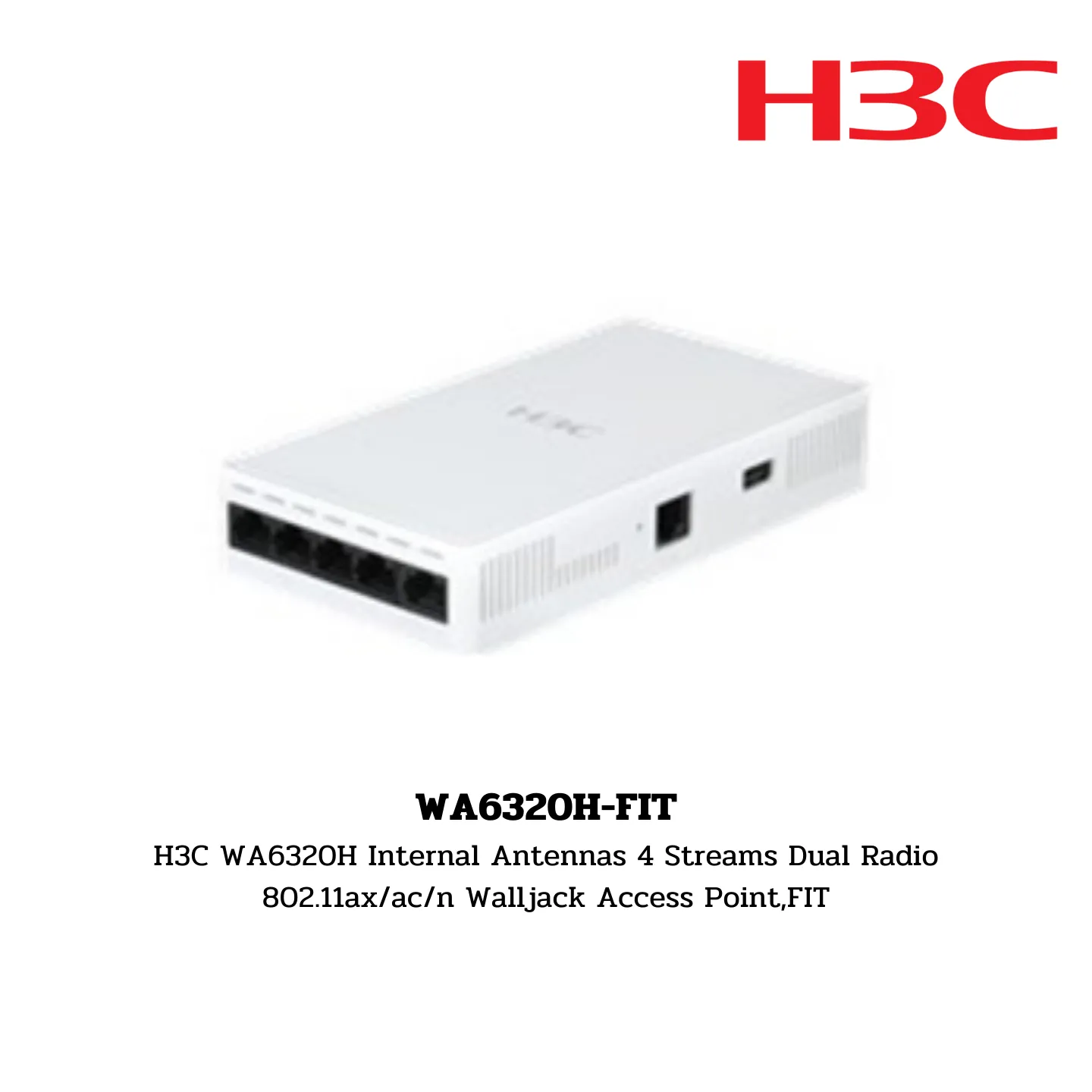

WA6320H-FIT
H3C WA6320H Internal Antennas 4 Streams Dual Radio 802.11ax/ac/n Walljack Access Point,FIT
Hardware Specifications
Weight:
- 0.25 kg
Dimensions (W × D × H):
- 86 mm × 160 mm × 30 mm
Interfaces:
- Front Panel:
- 4 × 1000M Ethernet port, RJ-45
- 1 × 1000M Ethernet port, RJ-45, pass-through
- Back Panel:
- 1 × Uplink 1000M Ethernet port, RJ-45, PoE input
- 1 × 1000M Ethernet port, RJ-45, pass-through
Console Port:
- 1 × Management console port (RJ-45)
USB Port:
- 1 (2.0) at 2.5W
PoE Input:
- 1 × Uplink 1000M Ethernet port, 802.3af
Local Power Supply:
- 54V DC
Antenna Type:
- Built-in omni-directional antenna
Antenna Gain:
- 5GHz peak gain: 4dBi
- 2.4GHz peak gain: 4dBi
- Note: The equivalent antenna gain is 3dBi in 5GHz, 3dBi in 2.4GHz
Built-in IoT Module:
- BLE 5.0
Frequency Bands:
- 2.400 to 2.4835GHz ISM
- 5.150 to 5.250GHz U-NII-1
- 5.250 to 5.350GHz U-NII-2A
- 5.470 to 5.725GHz U-NII-2C
- 5.725 to 5.850GHz U-NII-3/ISM
- Note: The available bands and channels depend on the configured regulatory domain (country)
Modulation Technology:
- OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
- DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
Modulation Mode:
- 11b: DSSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
- 11a/g: OFDM: 64-QAM@48/54Mbps, 16-QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
- 11n: MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM
- 11ac: MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
- 11ax: MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Maximum Transmit Power:
- 5GHz: 23 dBm
- 2.4GHz: 23 dBm
- Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations
Adjustable Power Granularity:
- 1 dBm
Reset/Restoration to Factory Default:
- Supported
Kensington Lock:
- Supported
Installation:
- Wall mounting
LED:
- Alternating flashing mode, orange/green/blue for different working states
Temperature:
- Operating Temperature: 0°C to +40°C
- Storage Temperature: –40°C to +70°C
Humidity:
- Operating Humidity: 5% to 95% (non-condensing)
- Storage Humidity: 5% to 95% (non-condensing)
Protection Class:
- IP31
Overall Power Consumption:
- 15.46W (including USB)
- 12.96W (excluding USB)
Safety Standards:
- IEC/EN 62368-1
- GB 4943.1
- SRRC
EMC Standards:
- EN 301 489-1
- EN 301 489-3
- EN 301 489-17
- EN 60601-1-2
- EN 55032
- EN 55035
- CISPR 32
- CISPR 35
- AS/NZS CISPR 32
- ICES-003 Issue 7
- GB/T 9254.1
- GB/T 9254.2
- GB 17625.1
- GB 17625.2
- IEC/EN 61000-4-2
- IEC/EN 61000-4-3
- IEC/EN 61000-4-4
- IEC/EN 61000-4-5
- IEC/EN 61000-4-6
- IEC/EN 61000-4-8
- IEC/EN 61000-4-11
- IEC/EN 61000-3-2
- IEC/EN 61000-3-3
Radio Standards:
- ETSI EN 300 328
- ETSI EN 301 893
- ETSI EN 300 440
- FCC Part 15E
RoHS Standards:
- DIRECTIVE 2011/65/EU
- (EU) 2015/863
Health Standards:
- EN 50385:2017
- EN IEC 62311:2020
MTBF:
- > 433891 hours
