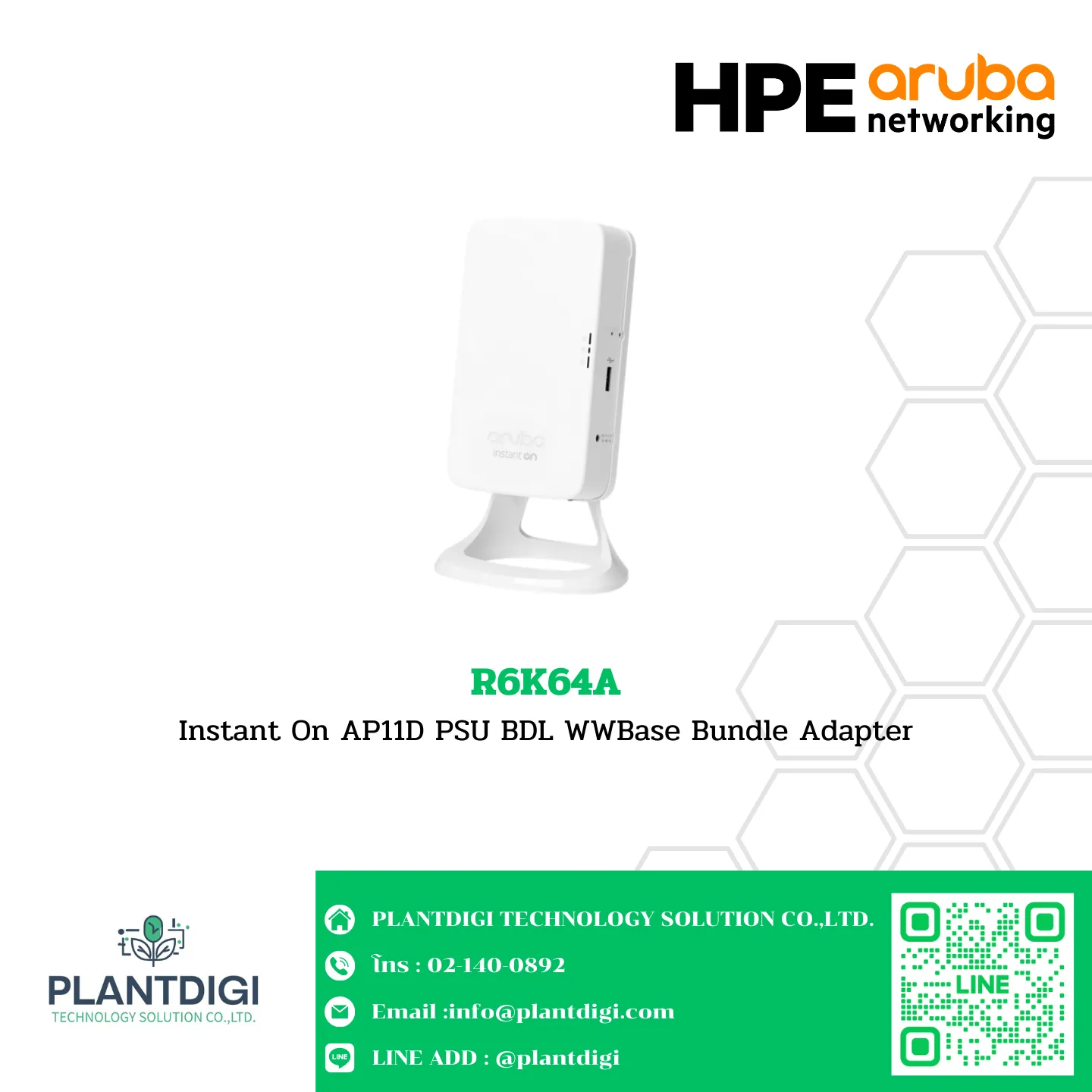

HPE Access Point Aruba รุ่น R6K64A

R6K64A
Instant On AP11D PSU BDL WWBase Bundle Adapter

Overview

The Aruba Instant On AP11D Desk/Wall Access Points provide a reliable, affordable, and business-grade Wave 2 802.11ac Wi-Fi experience for low- to medium-density small business environments requiring enhanced security and high performance, such as medical clinics, SOHO (small office/home office), or Airbnb setups. This bundle includes the AP and power supply unit.

Specifications

Model:

• R6K64A

Certifications:

• UL 2043 plenum rating
• EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
• Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)

Input Voltage:

• Power over Ethernet (PoE) on E0: 802.3af (class 3) or 802.3at (class 4). When using 802.3af, PoE-out on E3 is disabled
• DC power (48V)
  • Note: Power sources are sold separately

Wi-Fi Antenna:

• Integrated directional antennas with maximum individual antenna gain of 4.3dBi in 2.4GHz and 6.2dBi in 5GHz

Connectivity, Standard:

• IEEE 802.11ac, 802.11n

Ports:

• (1) uplink Gigabit Ethernet port (E0), with PoE-in support (802.3at/802.3af)
• (3) downlink Gigabit Ethernet ports (E1-E3), with PoE-out on E3 (802.3af)

Mounting:

• The access point ships with a single gang wall-box mount kit and desk mount kit.

Radio Coverage:

• Dual Radio for simultaneous dual-band operation
  • 5 GHz 802.11ac 2×2 MIMO for up to 867 Mbps wireless data rate, with Multi-User MIMO support (Wi-Fi 5)
  • 2.4 GHz 802.11n 2×2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

Warranty:

• Aruba Instant On 2 Year warranty with 24×7 phone support for the first 90 days and chat support for the entire warranty period. Community support as long as you own the products.

Weight:

• 313 g (0.7 lb)

Dimensions:

• 150 x 86 x 40 mm (5.9 x 3.4 x 1.6 in)

Key Features

• Reliable and Affordable: Ideal for low- to medium-density small business environments.
• High Performance: Peak data rate of up to 867 Mbps, scalable up to 25 access points.
• Dual-Band Operation: Simultaneous dual-band support with 802.11ac Wave 2 (Wi-Fi 5) and 802.11n (Wi-Fi 4) standards.
• PoE and DC Power: Flexible power options with Power over Ethernet (PoE) or DC power.
• Easy Installation: Comes with mounting kits for both wall and desk setups.
• Premium-Grade Wi-Fi: Enhanced Wi-Fi experience with Multi-User MIMO support.
• Comprehensive Warranty: 2 Year warranty with robust support options.
