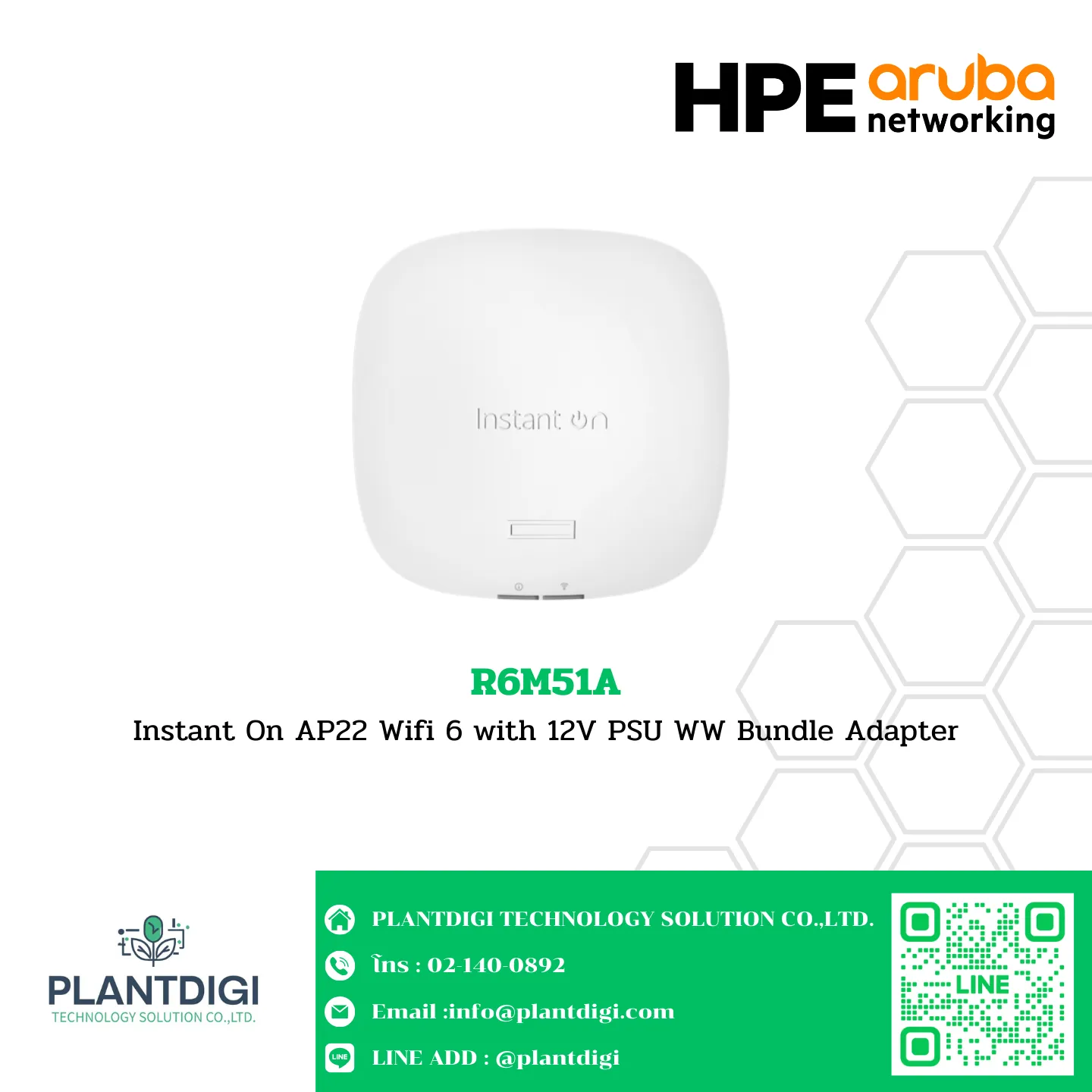

R6M51A
Instant On AP22 Wifi 6 with 12V PSU WW Bundle Adapter
Overview
The HPE Networking Instant On Access Point Bundle with PSU (WW) AP22 offers a reliable, affordable, and business-grade 802.11ax Wi-Fi experience for high performance and high-density small business environments, such as hotels, restaurants, and professional offices. Supporting the Wi-Fi 6 standard, this access point has a peak data rate of 1.2 Gbps and scales up to 25 access points without additional cost and complexity. This bundle includes the access point and a 12V/18W power adapter.
Specifications
Model:
- R6M51A
Certifications:
- EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
- Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Input Voltage:
- Power over Ethernet (PoE): 802.3af (class 3)
- DC power (12V)
- Note: Power sources are sold separately
Wi-Fi Antenna:
- Integrated down-tilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band)
Connectivity, Standard:
- IEEE 802.11ax
Ports:
- (1) uplink Gigabit Ethernet port, with PoE-in support (802.3af)
Mounting:
- The access point ships with a white mount clip that can attach to both wall and ceiling
- You can also purchase a mount (R6P90A) that matches the aesthetic design and looks of the APs, to blend seamlessly into your environment
Power Consumption:
- Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
Radio Coverage:
- Dual Radio for simultaneous dual-band operation
- 5 GHz 802.11ax 2×2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)
- 2.4 GHz 802.11ax 2×2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
Warranty:
- Aruba Instant On 2 Year warranty with 24×7 phone support for the first 90 days and chat support for the entire warranty period. Community support as long as you own the products
Weight:
- 500 g (1.1 lb)
Dimensions:
- 37 x 160 x 160 mm (1.5 x 6.3 x 6.3 in)
Key Features
- Reliable and Affordable: Ideal for high-density small business environments.
- High Performance: Peak data rate of 1.2 Gbps, scalable up to 25 access points.
- Dual-Band Operation: Simultaneous dual-band support with 802.11ax (Wi-Fi 6) standards.
- PoE and DC Power: Flexible power options with Power over Ethernet (PoE) or DC power.
- Easy Installation: Comes with mounting clips for wall and ceiling setups.
- Premium-Grade Wi-Fi: Enhanced Wi-Fi experience with Multi User MIMO support.
- Comprehensive Warranty: 2 Year warranty with robust support options.
