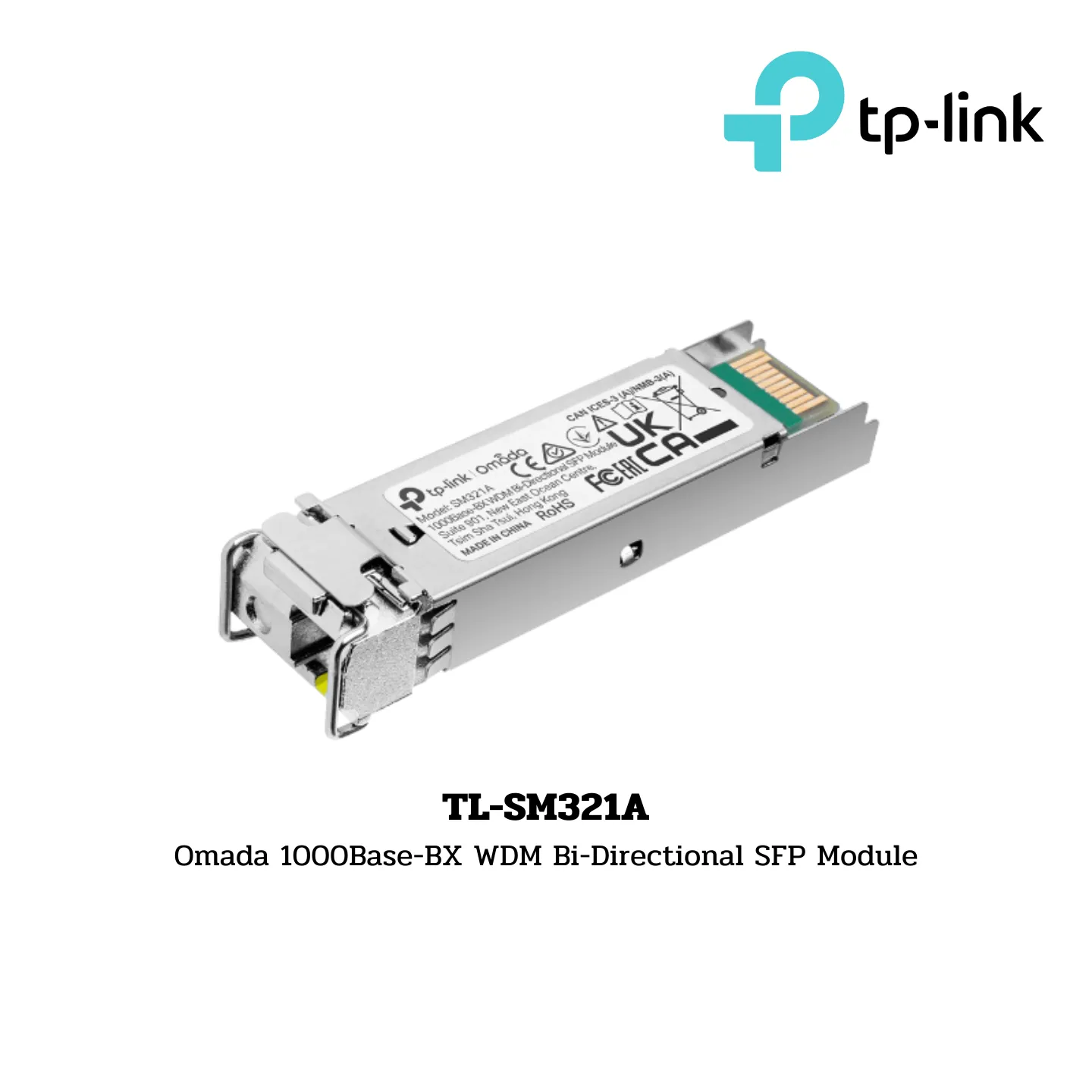

TP-Link TL-SM321A Omada 1000Base-BX WDM Bi-Directional SFP Module

TL-SM321A
Omada 1000Base-BX WDM Bi-Directional SFP Module

Brand:

• TP-Link

Specification:

• LC Connector, TX:1550nm/RX:1310nm
• Single-mode, 10 km

Media Converter & Module:

Standards and Protocols:

• IEEE 802.3z
• TCP/IP

Wave Length:

• TX: 1550 nm
• RX: 1310 nm

Dimensions (W x D x H):

• 2.2×0.6×0.5 in (55.4×14.6×12.9 mm)

Power Supply:

• 3.3 V

Safety & Emission:

• FCC
• CE

Cable:

• Single-Mode Fiber

Fiber Type:

• 9/125 μm Single-Mode

Max. Cable Length:

• 20 KM

Data Rate:

• 1.25 Gbps

Port Type:

• LC Simplex

Hardware Features:

• DDM
• SFP-MSA
• Hot Swappable

Package Contents:

• SM321A
• Installation Guide

Environment:

• Operating Temperature: 0–70 °C (32–158 °F)
• Storage Temperature: -40–85 °C (-40–185 °F)
• Operating Humidity: 10–90% RH, Non-Condensing
• Storage Humidity: 5–90% RH, Non-Condensing
