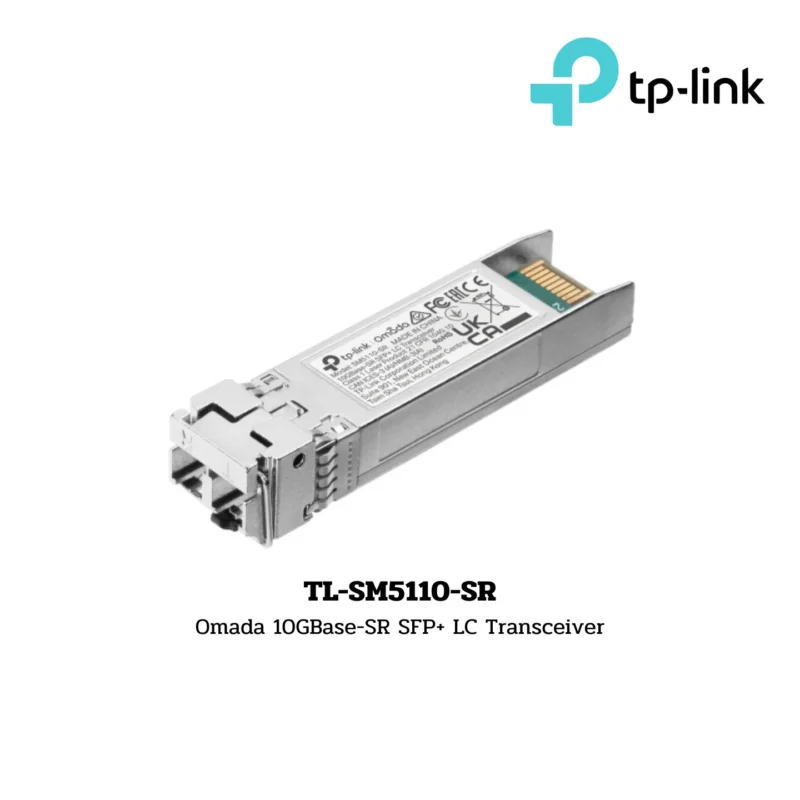

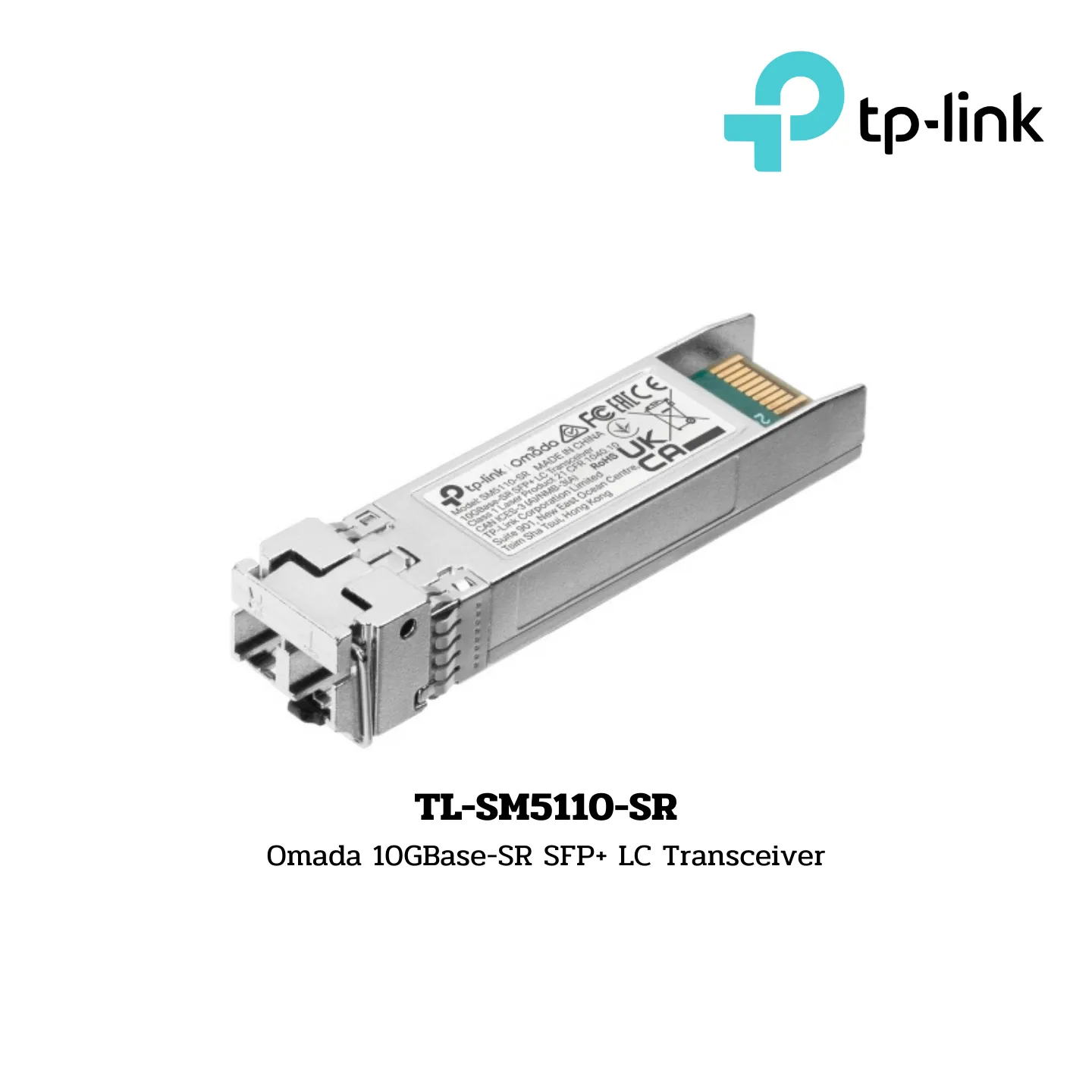

TP-Link TL-SM5110-SR Omada 10GBase-SR SFP+ LC Transceiver

TL-SM5110-SR
Omada 10GBase-SR SFP+ LC Transceiver

Brand:

• TP-Link

Specification:

• 850nm Multi-mode
• LC Duplex Connector
• Up to 300m Distance

Transceiver:

Standards and Protocols:

• IEEE 802.3ae
• TCP/IP
• SFF-8472

Wave Length:

• 850nm

Power Supply:

• 3.3V

Fiber Type:

• 50/125μm or 62.5/125μm Multi-mode

Max. Cable Length:

• 300m (OM3)

Data Rate:

• 10Gbps

Port Type:

• LC/UPC

Safety & Emission:

• FCC
• CE

Environment:

Operating Temperature:

• 0–70 ℃ (32–158 ℉)

Storage Temperature:

• -40–80 ℃ (-40–176 ℉)

Operating Humidity:

• 10–90% RH non-condensing

Storage Humidity:

• 5–90% RH non-condensing

Hardware Features:

DDM:

• Yes

SFP-MSA:

• Yes

Hot Swappable:

• Yes

Media Converter & Module:

Dimensions (W x D x H):

• 2.4 × 0.6 × 0.5 in (61.3 × 14.5 × 12.2 mm)

Package Contents:

• SM5110-SR
• Installation Guide
