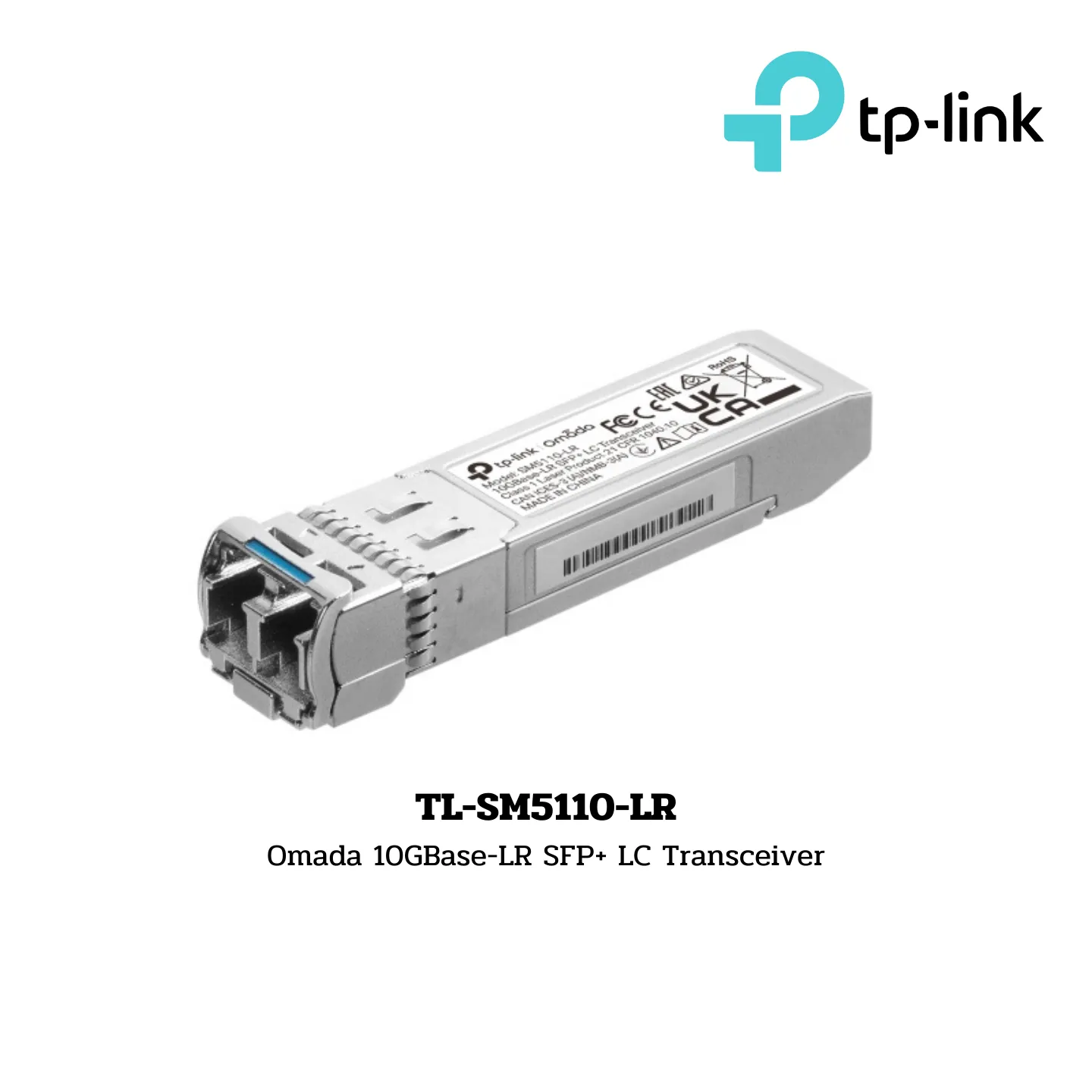

TL-SM5110-LR
Omada 10GBase-LR SFP+ LC Transceiver
Brand:
- TP-Link
Specification:
- 1310 nm Single-mode
- LC Duplex Connector
- Up to 10 km Distance
Transceiver:
Standards and Protocols:
- IEEE 802.3ae
- TCP/IP
Wave Length:
- 1310 nm
Power Supply:
- 3.3V
Fiber Type:
- 9/125μm Single-Mode
Max. Cable Length:
- 10 km
Data Rate:
- 10 Gbps
Port Type:
- LC Duplex
Safety & Emission:
- FCC
- CE
Environment:
Operating Temperature:
- 0–70 °C (32–158 °F)
Storage Temperature:
- -40–85 °C (-40–185 °F)
Operating Humidity:
- 10–90% RH, Non-Condensing
Storage Humidity:
- 5–90% RH, Non-Condensing
Hardware Features:
DDM:
- Yes
SFP-MSA:
- Yes
Hot Swappable:
- Yes
Media Converter & Module:
Dimensions (W x D x H):
- 2.2 × 0.5 × 0.4 in (56.7 × 13.9 × 10.35 mm)
Package Contents:
- SM5110-LR
- Installation Guide
