Cheval Arion V2 Rack 800x1200 45U, Complete set, BLK : S Series (RA2S812045B)

Cheval Arion V2 Rack 800×1200 45U, Complete set, BLK : S Series (RA2S812045B)

Name: Cheval Arion V2 Rack 800x1200 45U, Complete set, BLK : S Series (RA2S812045B) - Plantdigi
SKU: RA2S812045B

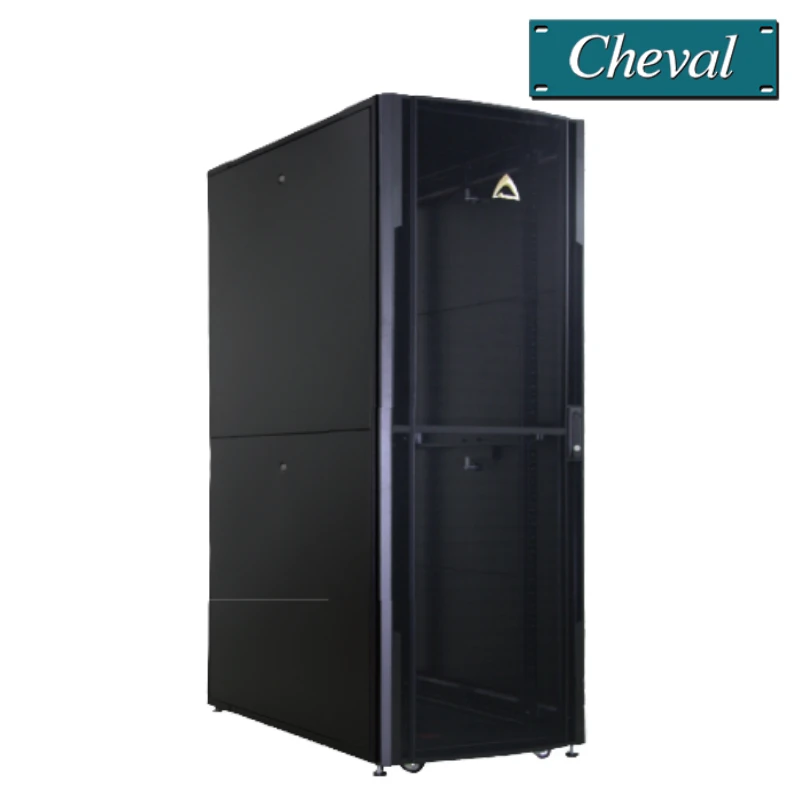

Cheval Arion V2 Rack 800×1200 45U, Complete set, BLK : S Series (RA2S812045B)
Rack Type: 19″ Rack Cabinet
Series: Arion V2 Rack S Series
Rack Size: 45U, 800W × 1200D mm
Load Capacity: 1,400 kg
Door: High Density Perforated Door (>80% Open Area)
Mounting Rails: Adjustable 19″ Vertical Rails, 6.35 mm Increments
Cable Management: 800 mm Wide Design
Material: Premium Grade Hot and Cold Rolled Steel
Frame: SAPH-440 Automobile Grade Steel
Assembly Time: Approximately 15 Minutes
Color: Low Gloss Textured Black
Standards: EIA-310E, IEC-60297-1/2, UL 2416
Compliance: RoHS Compliant

ติดต่อเราเพื่อสั่งซื้อ สอบถาม หรือขอใบเสนอราคา

โทร : 02-140-0892

มือถือ : 089-314-3423

Line ID : @plantdigi

Email : info@plantdigi.com

📋 ขอใบเสนอราคา สอบถามสต๊อกสินค้า

รหัสสินค้า: RA2S812045B หมวดหมู่: ARION 800 Series 19” Network Cabinet ป้ายกำกับ: Cheval, RA2S812045B

คำอธิบาย

Cheval Arion V2 Rack 800×1200 45U, Complete set, BLK : S Series (RA2S812045B)

The Arion 800 series of 19″ : cabinets are highly versatile and vendor neutral 19″ Cabinet designed for networking and structured cable installations, for IT and Data Center applications. Our HD top version comes with additional openings on the top panel for cable entry.

FEATURES

UL listed 1400 KG load rate and Grounding test
Contoured high density perforated door exceeds 80% open area
800 wide design ideal for cable management
Light weight and strong.
Split level side panels provide convenient access to installed equipment.
Depth adjustable 19” vertical mounting rails in 6.35 mm increments, with easy to read depth marking.
“U” numbers printed on 19″ rails.
Knock down design for efficient shipping.
Quick assembly time, approximately 15 minutes.
Lift off door type for quick release
Field reversible doors.
Flexible packing methods allows for convenient stocking and end user delivery.
Multiple sizes available.
Customization requests welcome.
Patents Pending: 1002000994, 1001000784, 1001000785, 1001000786 and 1001000787

STANDARDS & MATERIALS

UL listed : UL 2416 Issue No.2, CSA 22.2 No. 60950-1-07
Dimensions conform to EIA-310E, IEC-60297-1, 2
Five stage iron-phosphate pretreatment with textured powder coat finish, tested to 500 hours salt spray under ASTM-D610-01 and ASTM-B117
Standard color is low gloss textured black
Premium grade Hot and Cold rolled steel sheet
Structure of Frame Top and Frame Boottom are made of SAPH-440 (Automobile grade)
Designed and Manufactured under ISO 9001 : 2008 and ISO 14001
All materials RoHS compliant

ข้อมูลจำเพาะ (Specification)

รายการ	รายละเอียด (Description)
Brand	Arion
Series	Arion V2 Rack S Series
Model	RA2S812045B
Rack Type	19″ Rack Cabinet
Rack Unit	45U
Rack Width	800 mm
Rack Depth	1200 mm
Load Capacity	1,400 kg
Door Type	High Density Perforated Door, >80% Open Area
Side Panels	Split Level Side Panels, Removable
Mounting Rails	Adjustable 19″ Vertical Mounting Rails
Rail Adjustment	6.35 mm Increments
Depth Marking	Easy-to-Read Depth Marking
U Numbering	Printed on 19″ Rails
Door	Lift-off Door, Field Reversible
Design	Knock Down Design
Assembly Time	Approximately 15 Minutes
Cable Management	800 mm Wide Design for Improved Cable Management
Color	Low Gloss Textured Black
Material	Premium Grade Hot and Cold Rolled Steel
Frame Material	SAPH-440 Automobile Grade Steel
Standards	EIA-310E, IEC-60297-1, IEC-60297-2
Safety Standards	UL 2416 Issue No.2, CSA 22.2 No. 60950-1-07
Surface Treatment	Five Stage Iron-Phosphate Pretreatment with Textured Powder Coat
Corrosion Test	500 Hours Salt Spray under ASTM-D610-01 and ASTM-B117
Quality Management	ISO 9001:2008, ISO 14001
Compliance	RoHS Compliant
