Panduit Modular Plugs รุ่น FP6X88MTG

FP6X88MTG

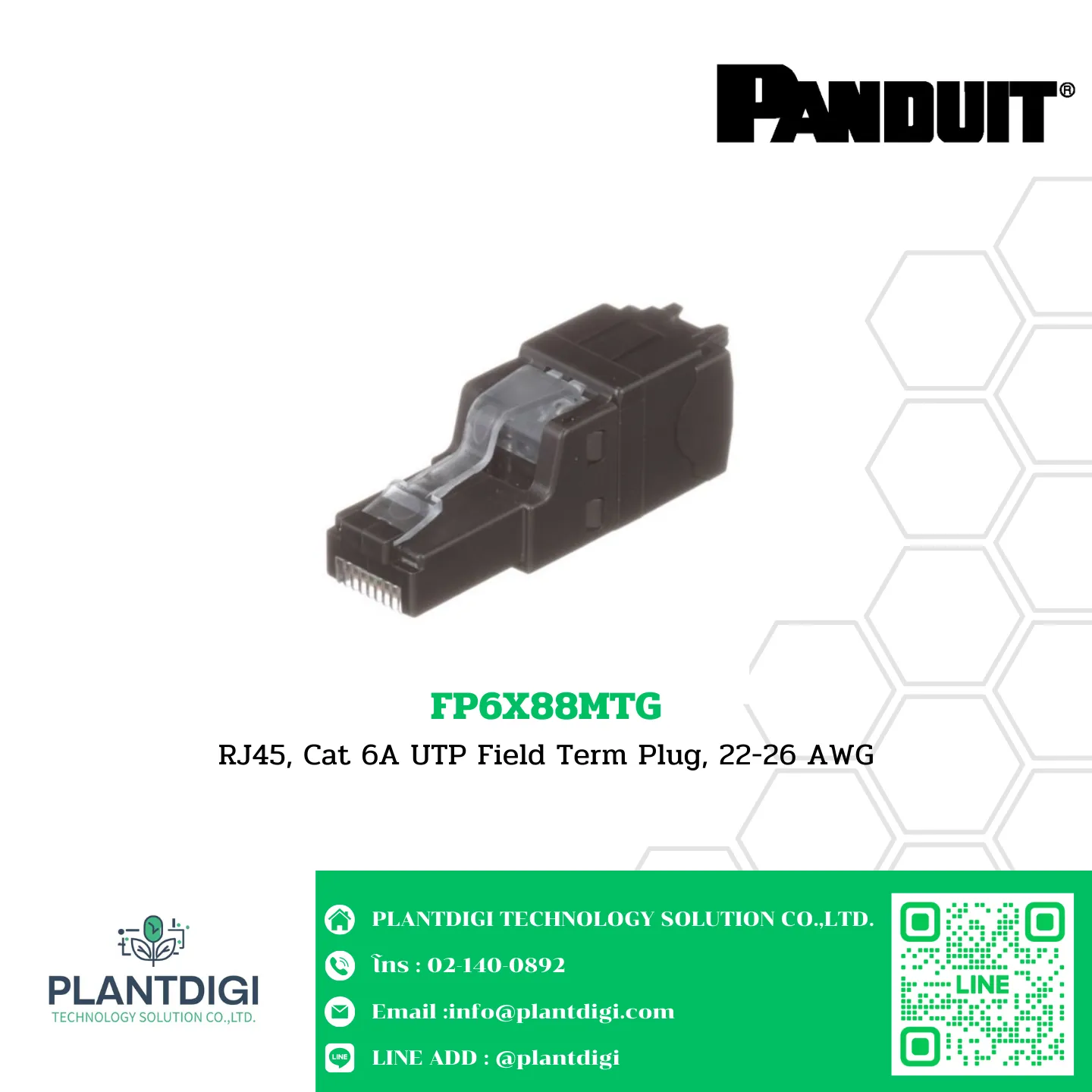

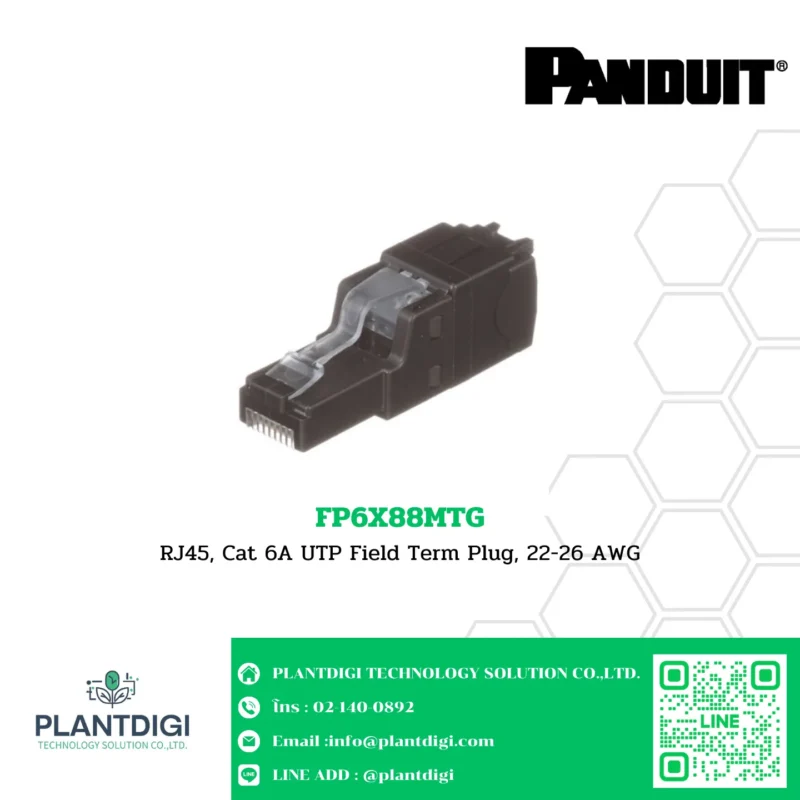

RJ45, Cat 6A UTP Field Term Plug, 22-26 AWG

Overview

The RJ45, Cat 6A UTP Field Term Plug, 22-26 AWG (FP6X88MTG) is designed for high-performance networking applications. This field terminable plug ensures reliable connectivity and efficient installation, making it ideal for various networking environments.

Specifications

Product Type:

• UTP Field Term Plug

Performance Level:

• Category 6A

Connector Type:

• Field Terminable Plug

Body Material:

• Polycarbonate

Contact Material:

• Gold Plated Phosphor Bronze

Number of Plugs:

• 1

Wiring Scheme:

• T568A/T568B

Dimensions:

• Overall Length:
  • 1.82 inches (46.2 mm)
• Overall Width:
  • 0.53 inches (13.5 mm)
• Overall Height:
  • 0.62 inches (15.8 mm)

Shield Type:

• Unshielded (UTP)

Operating Temperature:

• Maximum: 75°C (167°F)
• Minimum: -40°C (-40°F)

Compatible Wire Gauge:

• 22-26 AWG

Color:

• Black

Standards Met:

• Exceeds ANSI/TIA 568-C.2 Category 6A and ISO 11801 Class EA Channel performance requirements with up to two field term plugs in channel.
• Meets or exceeds proposed TIA Modular Plug Terminated Link requirements with up to two field term plugs in link.
• Meets ANSI/TIA-1096-A (formerly FCC Part 68), IEC 60603-7, IEC 60529 (IP 20).
• Supports IEEE 802.3af / 802.3at (PoE/PoE+) and proposed 802.3bt type 3 and type 4 (PoE++) applications.
• Supports Power over HDBaseT up to 100 watts.
• RoHS compliant.

IP Rating:

• IP20

Flammability Rating:

• UL94V-0

Sub Brand:

• Pan-Net®

Part Features:

• Proven electrical performance and quick installation speed from the same forward-motion termination technology used in Panduit’s Mini-Com TG modular jacks.

Packaging Details

UPC:

• 61305625655

Standard Package Quantity:

• 1

Standard Package Volume:

• 0.0023 cubic feet

Standard Carton Quantity:

• 50

Standard Carton Volume:

• 0.1156 cubic feet

Key Features

• High Performance: Ensures reliable data transmission with Cat6A standards.
• Durable Construction: Made from high-quality polycarbonate and gold plated phosphor bronze.
• Versatile Use: Suitable for various networking environments.
• Easy Installation: Field terminable plug for quick and efficient setup.
• Standards Compliant: Meets various international standards for safety and performance.
• Black Color: Easy identification and organization in cable management systems.
