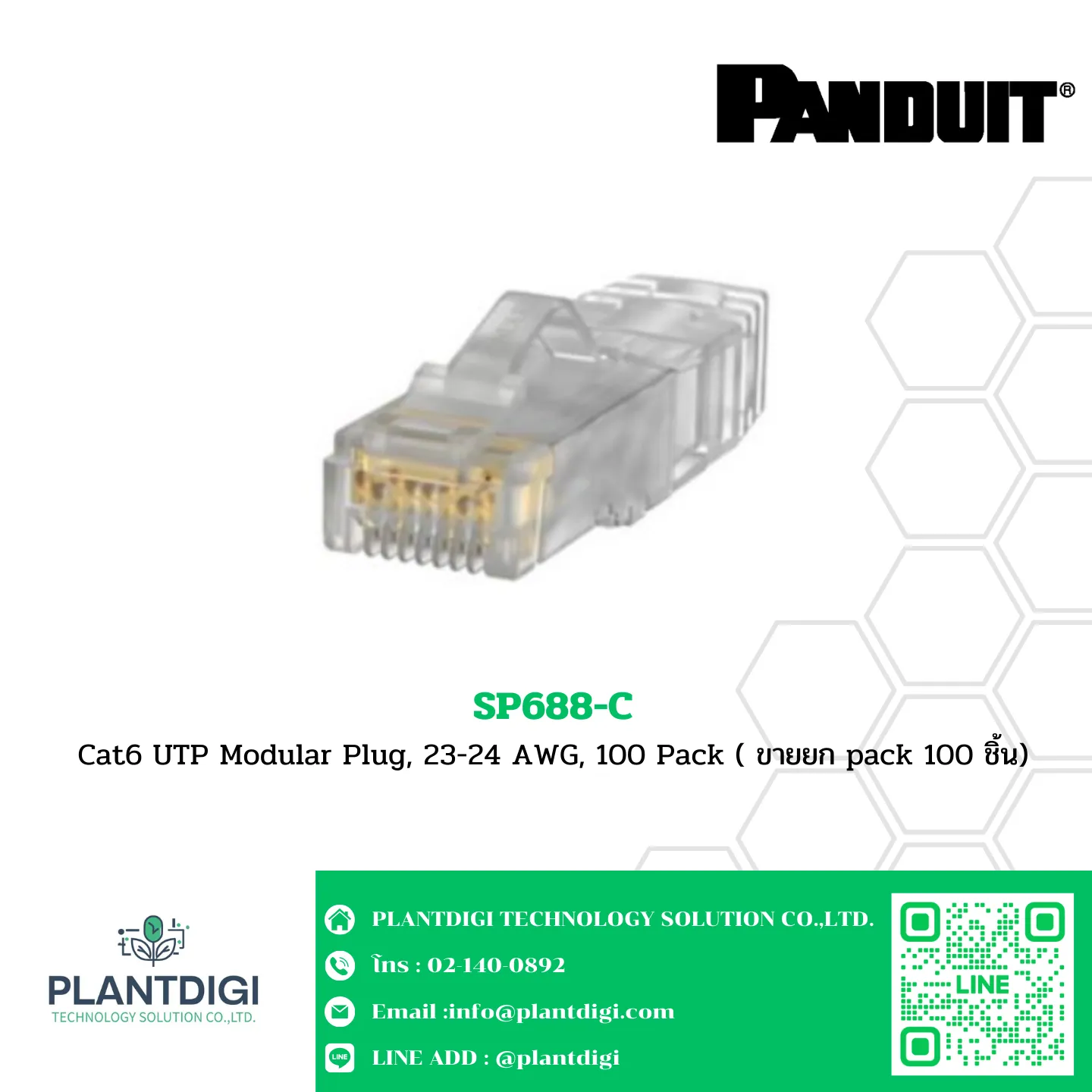

Panduit Modular Plugs รุ่น SP688-C

SP688-C
Cat6 UTP Modular Plug, 23-24 AWG, 100 Pack ( ขายยก pack 100 ชิ้น)

Overview

The Cat6 UTP Modular Plug, 23-24 AWG, 100 Pack (SP688-C) is designed for high-performance networking applications. This modular plug ensures reliable connectivity and efficient installation, making it ideal for various networking environments.

Specifications

Product Type:

• Modular Plug

Performance Level:

• Category 6

Connector Type:

• Modular Plug

Body Material:

• Plastic

Contact Material:

• Gold Plated Phosphor Bronze

Number of Plugs:

• 100

Shield Type:

• Unshielded (UTP)

Dimensions:

• Overall Width:
  • 0.46 inches (11.8 mm)
• Overall Height:
  • 0.52 inches (13.1 mm)
• Overall Depth:
  • 1.6 inches (40.6 mm)

Operating Temperature:

• Maximum: 60°C (140°F)
• Minimum: -10°C (14°F)

Compatible Wire Gauge:

• 23-24 AWG

Color:

• Clear

Standards Met:

• Exceeds ANSI/TIA Category 6 and ISO Class E performance requirements when properly terminated to Panduit Category 6 UTP copper cable.
• Meets ANSI/TIA-1096-A, IEC 60603-7.
• cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886).
• RoHS compliant.

Flammability Rating:

• UL94V-0

Sub Brand:

• TX6™

Key Features

• High Performance: Ensures reliable data transmission with Cat6 standards.
• Durable Construction: Made from high-quality plastic and gold plated phosphor bronze.
• Versatile Use: Suitable for various networking environments.
• Easy Installation: Modular plug for quick and efficient setup.
• Standards Compliant: Meets various international standards for safety and performance.
• Clear Color: Easy identification and organization in cable management systems.

Packaging Details

UPC:

• 07498391416

Standard Package Quantity:

• 100

Standard Package Volume:

• 0.1168 cubic feet

Standard Carton Quantity:

• 1000

Standard Carton Volume:

• 1.1685 cubic feet
