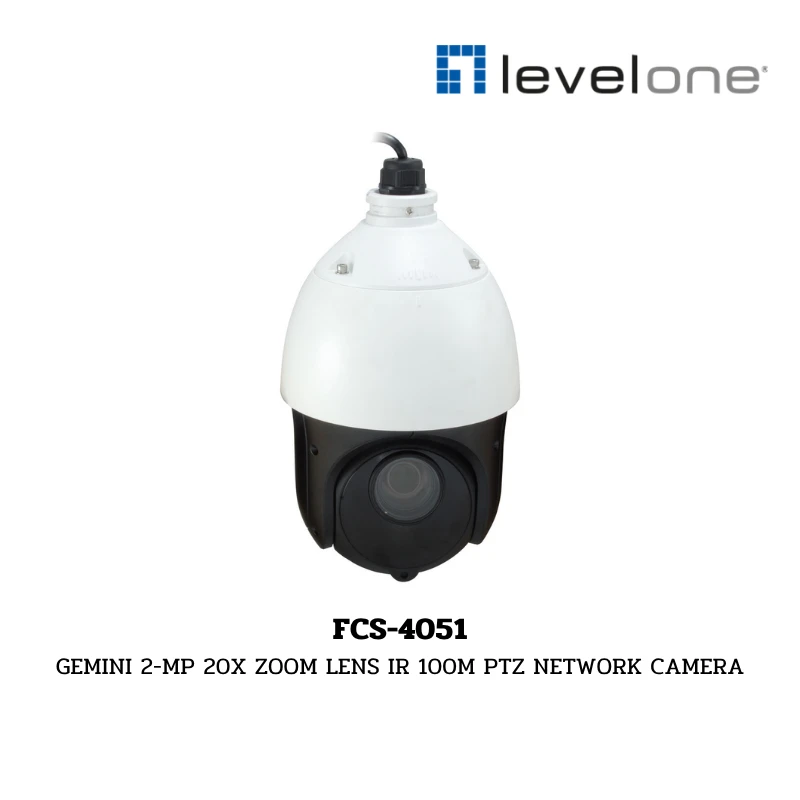

(FCS-4051) Levelone Camera GEMINI 2-MP 20X ZOOM LENS IR 100M PTZ NETWORK CAMERA

(FCS-4051) Levelone Camera GEMINI 2-MP 20X ZOOM LENS IR 100M PTZ NETWORK CAMERA

รายละเอียดสินค้า

(FCS-4051) Levelone Camera GEMINI 2-MP 20X ZOOM LENS IR 100M PTZ NETWORK CAMERA

2-Megapixel (1920 x 1080) high-definition resolution
Supports 20X optical zoom
360° pan and 105° tilt movements allow for a wide range of monitoring angles
Built-in infrared LEDs for night viewing up to 100m
Video compression: H.264, MJPEG
Dual power support: 12V DC/PoE (IEEE 802.3at)
Built-in Micro SD/SDHC card slot for local storage
Weatherproof IP66-rated housing
ISO9001:2015 and ISO14001:2015 CERTIFIED

📋 ขอใบเสนอราคา สอบถามเพิ่มเติม

รหัสสินค้า: FCS-4051 หมวดหมู่: GEMINI Series ป้ายกำกับ: IP Camera, Levelone

คำอธิบาย

(FCS-4051) Levelone Camera GEMINI 2-MP 20X ZOOM LENS IR 100M PTZ NETWORK CAMERA

LevelOne FCS-4051 เป็นกล้องวงจรปิด PTZ IP ระดับมืออาชีพที่ออกแบบมาเพื่อการใช้งานภายนอกอาคารโดยเฉพาะ มาพร้อมความละเอียด 2 ล้านพิกเซลและเลนส์ซูมแบบ Optical Zoom สูงถึง 20 เท่า ตัวกล้องสามารถหมุน (Pan) ได้รอบตัว 360 องศา และก้มเงย (Tilt) ได้ 105 องศา ช่วยให้ตรวจสอบพื้นที่ได้อย่างกว้างขวางและแม่นยำ พร้อมระบบอินฟราเรดระยะไกลถึง 100 เมตร และมาตรฐานกันน้ำกันฝุ่นระดับ IP66

ข้อมูลจำเพาะ (Specification)

รายการ (Feature)	รายละเอียด (Description)
Model Number	FCS-4051
Product Description	Key Features 2-Megapixel (1920 x 1080) high-definition resolution Video compression: H.264, MJPEG Built-in infrared LEDs for night viewing up to 100m Built-in Micro SD/SDHC card slot for local storage Supports 20X optical zoom Dual power support: 12V DC/PoE (IEEE 802.3at) Weatherproof IP66-rated housing 360° pan and 105° tilt movements allow for a wide range of monitoring angles ISO9001:2015 and ISO14001:2015 CERTIFIED The LevelOne FCS-4051 is a PTZ IP surveillance camera designed for use outdoors, boasting 2-Megapixel resolution and a 20X optical zoom. The camera features motorized Pan and Tilt features as well, enabling it to focus in a variety of directions and zoom in on a specific viewing area. The camera is also PoE, enabling it to run both power and data on the one Cat.5 cable, making deployments easy and efficient. An IP66-rated weatherproof casing allows for safe, reliable operation in outdoor conditions such as rain, heat, dust, snow and humidity.
Features	Digital Wide Dynamic Range (DWDR),rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser.3 Stream,SDK Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
2-way audio	Yes
DI/DO	Yes
IR LED for night vision	Yes
Max. Resolution	2 Megapixels
Resistance	Weatherproof
IP Camera series	GEMINI
Camera Type	Speed Dome
Zoom type	Motorization
PoE Supported	Yes
Angle of view (°)	Horizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele)
Audio format	G.711/G.722.1/G.726/MP2L2/PCM
Image sensor	1/2.8″ progressive scan CMOS
Indicators	Power
IR cut filter	Yes
IR range	Up to 100 meter
Lens	4.8 mm to 120 mm, F1.6
Minimum illumination (lux)	Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Mount	Wall mount
Pan (Swivel) range	360°,Pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Port Configuration	RJ45/DI/Power
Power consumption	Max. 24 W, including max. 9 W for supplement light
Power supply	VDC 12V /2A
Power supply included	Yes
Resolution	Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Shutter time	1s to 1/30,000 s
Standard	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Supported storage capacity	256 GB
Tilt range	-15° to 90° (auto flip), Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Video format	H.265/H.264/MJPEG
Weatherproof rating	IP66
Approval and Compliance	CE/FCC/UL,/IP66/RoHS UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) TVS 6000V lightning protection, surge protection and voltage transient protection
Compatibility	Onvif Version 19.12, Profile S, Profile G, Profile T Simultaneous Live View: Up to 20 channels Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Operating humidity	0% RH ~ 90% RH
Operating temperature	-30°C ~ 65°C
Supported browsers	Edge
Compatible operating systems	Windows 10
Package Contents	FCS-4051 Screw Kit Power adapter Quick Installation Guide Resource CD (User Manual, Utility, QIG)
Color	White
EAN	4015867227596
Dimensions (W x D x H)	295 x 164.5 x 164.5 mm
Product weight (kg)	2
