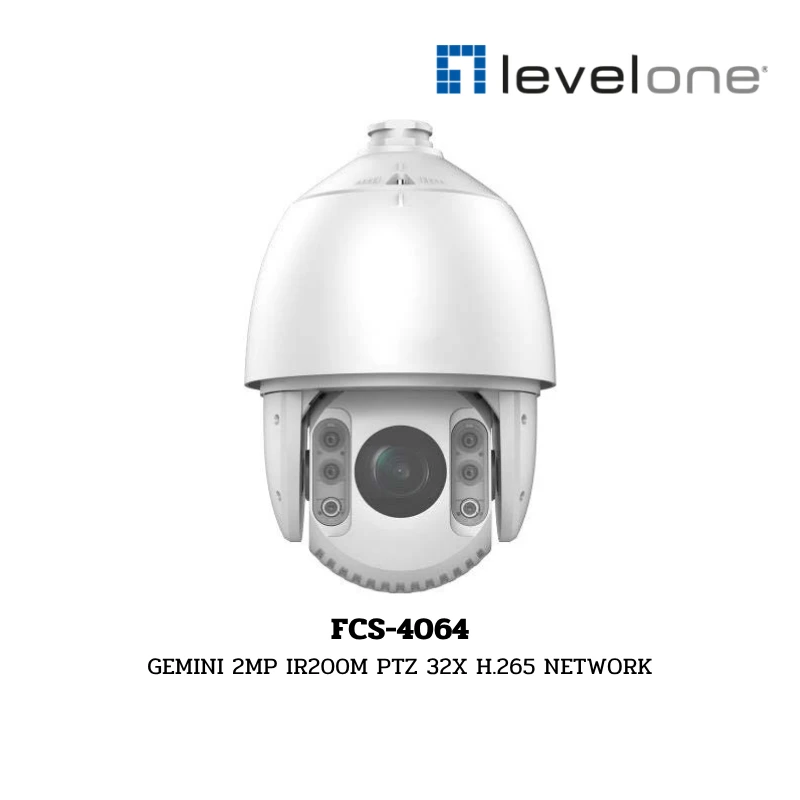

(FCS-4064) Levelone Camera GEMINI 2MP IR200M PTZ 32X H.265 NETWORK

Hardware version: 2

1/2.8” Progressive Scan CMOS

H.265+, H.265, H.264, MJPEG Video CODEC with Triple Stream Support

Up to 2 Megapixel (1920×1080) resolution with 30FPS support

32x Optical Zoom, 16x Digital Zoom

Smart Features such as Auto-Tracking, Face Detection, Unattended Baggage Detection

120 dB WDR, 3D DNR, HLC, BLC, Defog, DORI, 150M Smart IR

Built-in Micro SD/SDHC/SDXC card slot, up to 256 GB

802.3at PoE (24W Max), AC24V

Image Sensor: 1/2.8” Progressive CMOS

Minimum Illumination:

Color: 0.005 lux

Black and White: 0.001 lux, 0 lux (IR ON)

Shutter Speed: 1 ~ 1/30,000 sec

Lens: 4.8mm ~ 153.6mm, 32x Optical Zoom, 16x Digital Zoom, Auto Iris Control

Zoom Speed: Approximately 3.6 second (Optical Wide-Tele) Auto Focus, Semi-Focus, Manual Focus

Angle of View: 58.60°~2.40°, 33.60°~1.14°, 67.00°~2.80° (Horizontal, Vertical, Diagonal Field of View)

Minimum Working Distance: 4.80mm~153.60mm (Wide-Tele)

Aperture Range: Max F1.6

Day and Night: Automatic Day/Night Operation with IR Cut Filter (ICR)

Infrared: 200M Smart Infrared Built-in

Dynamic Range: Wide Dynamic Range (WDR) 120dB

Pan Range: 360° Endless

Pan Speed: Configurable 0.1°/s ~ 160°/s, Preset Pan Speed = 240°/s

Tilt Range: -15°~90° (Auto Flip)

Tilt Speed: Configurable 0.1°/s ~ 120°/s, Preset Pan Speed = 200°/s

Preset: 300

Patrol: 8 Patrols, up to 32 Preset per Patrol

Pattern: 4 Pattern, Recording time not less than 10 minutes per Pattern

Other: PTZ Position Display, Power-off Memory, 3D Positioning, Scheduled Task

Park Action: Preset/Pattern Scan, Patrol Scan, Auto Scan, Tilt Scan, Random Scan, Frame Scan, Panorama Scan

Smart Detection: Face, Intrusion, Line Crossing, Region Entrance/Exit, Object Removal, Unattended Baggage, Motion Detection, DI, DO, Video Tampering, and Exception

Detect: Definition = 25 px/m, Distance = 1600.0 m

Observe: Definition = 63 px/m, Distance = 634.90 m

Recognize: Definition = 125 px/m, Distance = 320.0 m

Identify: Definition = 250 px/m, Distance = 160.0 m

Video Stream: 3 Streaming Profile

Video CODEC: H.265+, H.265, H.264, MJPEG

Video Bit Rate: 32kbps ~ 16Mbps

Audio CODEC: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

Max Resolution: 1920 x 1080 (16:9 Aspect Ratio)

Frame Rate:

50Hz: 25fps (1920 × 1080, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)

60Hz: 30fps (1920 × 1080, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)

Privacy Mask: Up to 24 Programmable Masking Zones

Image Enhancement:

Automatic Gain Control (AGC)

Automatic White Balance (AWB)

Automatic Exposure Setting (AES)

Back Light Compensation (BLC)

High Light Compensation (HLC)

Defog

Scalable Video Codec for H.265 and H.264 encoding

3D Noise Reduction (3DNR)

Region of Interest (ROI)

Storage: Built-in SD/SDHC card slot, up to 256 GB

Alarm: 2 Input, 1 Output, Supported Actions are Preset, Patrol, Pattern, Memory Card Record, Relay Output, Client Notification

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, ARP, IPv4, IPv6, Bonjour

Security: User Login Authentication, IP Filtering, MAC Authentication

Standard: ONVIF (Profile S), PSIA, CGI, ISAPI, SDK

Interface: 1 x RJ45 10/100M Ethernet interface, 2 x Digital Input + 1 x Digital Output, Audio Line In, Audio Line Out, Reset Button

Power Supply: PoE IEEE802.3at 24W Max, AC24V

Power Supply Protection: Up to 6000V TVS Lightning Protection, Surge Protection, and Voltage Transient Protection

Power Consumption: 24W Max

Operating Temperature: -30°C to 65°C

Relative Humidity: Up to 90% non-condensing

Housing: IP66, IK10 Rating

Standards: FCC, CE (EN 55032:2015, 61000-3-2:2019, 61000-3-3:2013+A1:2019, 50130-4:2011+A1:2014), CE-LVD (EN 62368-1:2014+A11:2017), UL (62368-1), CB (IEC 62368-:2014+A11), BIS, WEEE, RoHS

Manufactured in ISO9001 and ISO14001-certified factory
