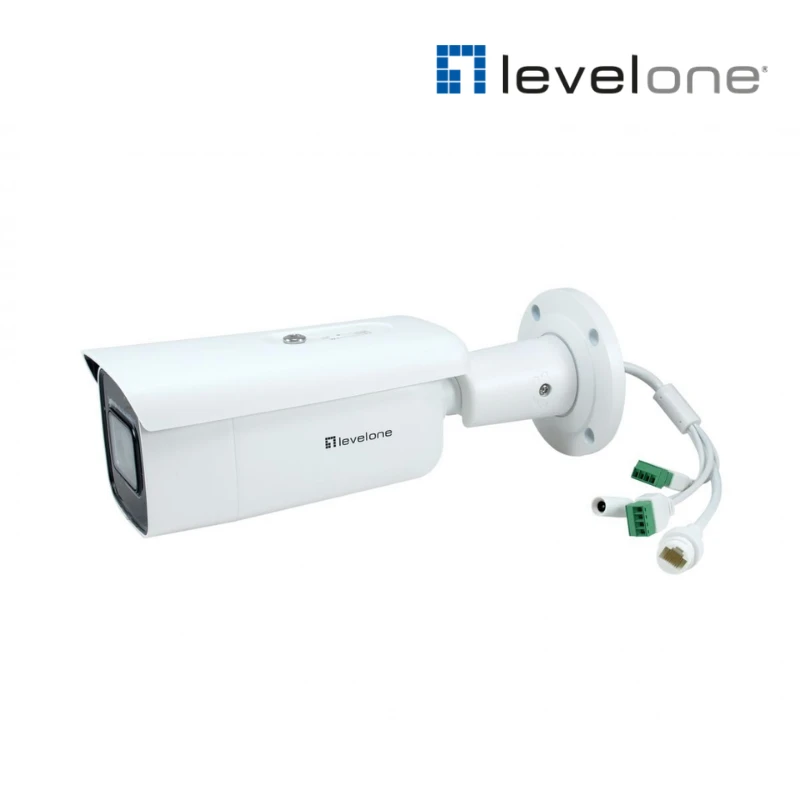

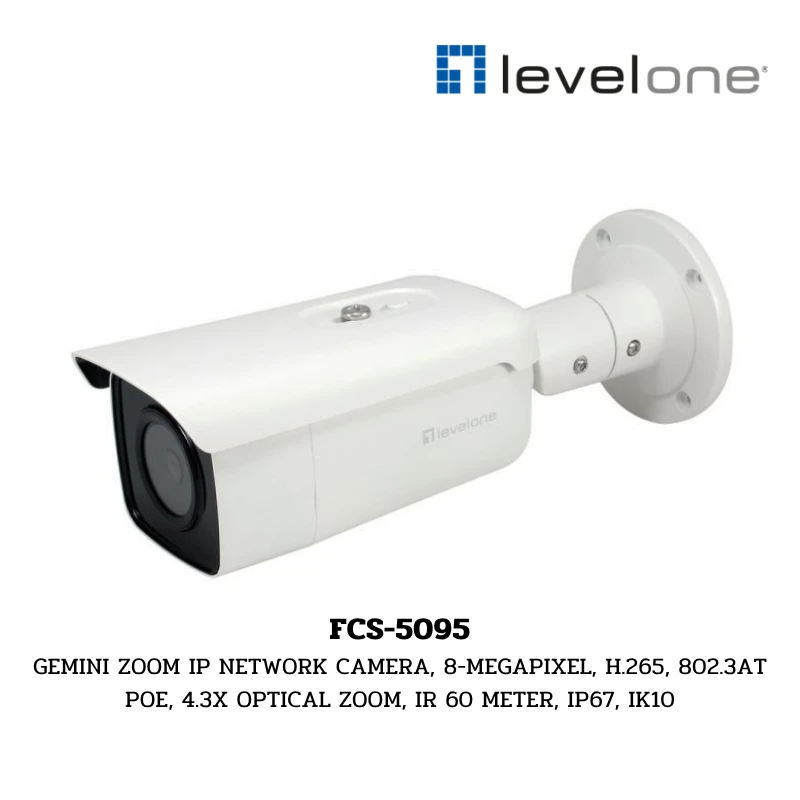

(FCS-5095) Levelone Camera GEMINI ZOOM IP NETWORK CAMERA, 8-MEGAPIXEL, H.265, 802.3AT POE, 4.3X OPTICAL ZOOM, IR 60 METER, IP67, IK10
FCS-5095 เป็นกล้องวงจรปิด IP Camera แบบทรงกระบอก (Bullet) ซีรีส์ GEMINI ที่ให้ความละเอียดสูงถึง 8 ล้านพิกเซล (4K) มาพร้อมเลนส์ซูมปรับระยะด้วยมอเตอร์ 4.3 เท่า โดดเด่นด้วยระบบอินฟราเรดส่องสว่างไกลถึง 60 เมตร ตัวกล้องออกแบบมาเพื่อความทนทานสูงสุดด้วยมาตรฐานกันน้ำกันฝุ่น IP67 และป้องกันการทุบทำลายระดับ IK10 รองรับฟีเจอร์อัจฉริยะในการแยกแยะเป้าหมายมนุษย์และยานพาหนะ พร้อมระบบเสียงสองทิศทางและช่องเชื่อมต่ออุปกรณ์แจ้งเตือนภายนอก
ข้อมูลจำเพาะ (Specification)
| รายการ (Feature) | รายละเอียด (Description) |
| Model Number | FCS-5095 |
| Product Description |
8-Megapixel high-definition resolution Video compression: H.264/H.265 Supports 4.3X optical zoom Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments Vandal-proof IK10-rated housing Weatherproof IP67-rated housing Built-in infrared LEDs for night viewing up to 60m Built-in Micro SDHC/SDXC card slot for local storage |
| Features |
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Smart Event: Face detection,Line crossing detection, intrusion detection (support alarm triggered by specified target types (human and vehicle)) Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
| 2-way audio | Yes |
| DI/DO | Yes |
| IR LED for night vision | Yes |
| Max. Resolution | 8 Megapixels |
| Resistance | Weatherproof |
| IP Camera series | GEMINI |
| Camera Type | Bullet |
| Zoom type | Motorization |
| PoE Supported | Yes |
| Angle of view (°) | FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35° |
| Audio format | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Image sensor | 1/2.8″ Progressive Scan CMOS |
| Indicators | Powe /Link Act |
| IR cut filter | Yes |
| IR range | Up to 60 Meter |
| Lens | Motorized lens, 2.8 to 12 mm |
| Minimum illumination (lux) | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Mount | Wall mount |

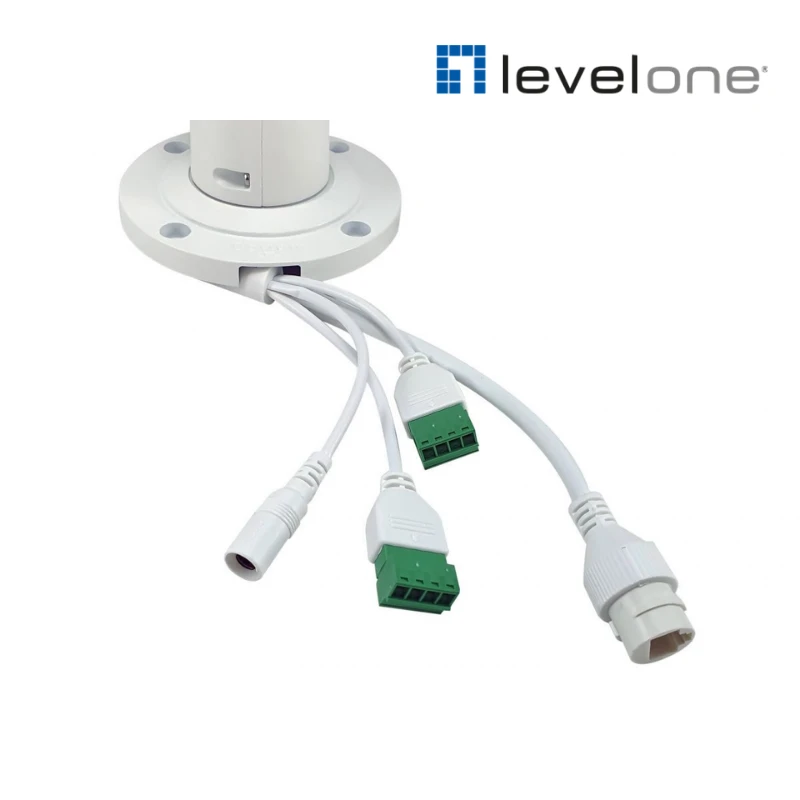

| Port Configuration | RJ-45, DI/DO (terminal block), Audio In/Out (terminal block) |
| Power consumption |
12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W |
| Power supply included | No |
| Resolution |
Main Stream 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Shutter time | 1/3 s to 1/100,000 s |
| Standard | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| Supported storage capacity | 256 GB |
| Video format | H.265/H.264/MJPEG |
| Weatherproof rating | IP67 |
| Approval and Compliance | CE/FCC/UL |
| Compatibility |

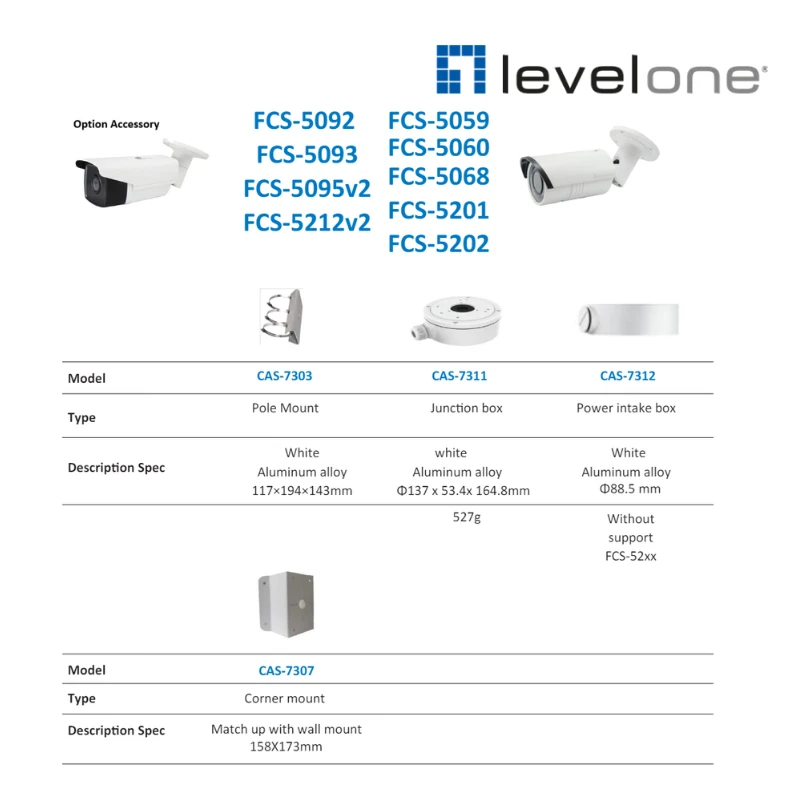

Onvif Ooption accessory Mounting Kit : CAS-7303 Pole Mount CAS-7307 Corner mount CAS-7311 Junction Box CAS-7312 Power intake box |
| Operating humidity | 5% RH ~ 95% RH |
| Operating temperature | -30°C ~ 60°C |
| Supported browsers |
Plug-in required live view: IE 10, IE 11,Edge Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Storage humidity | 5% RH ~ 95% RH |
| Storage temperature | -30°C ~ 70°C |
| Package Contents |
Screw Kit QIG |
| Color | White |
| EAN | 4015867228654 |
| Dimensions (W x D x H) | 385x190x180 |
| Product weight (kg) | 1.385 |
