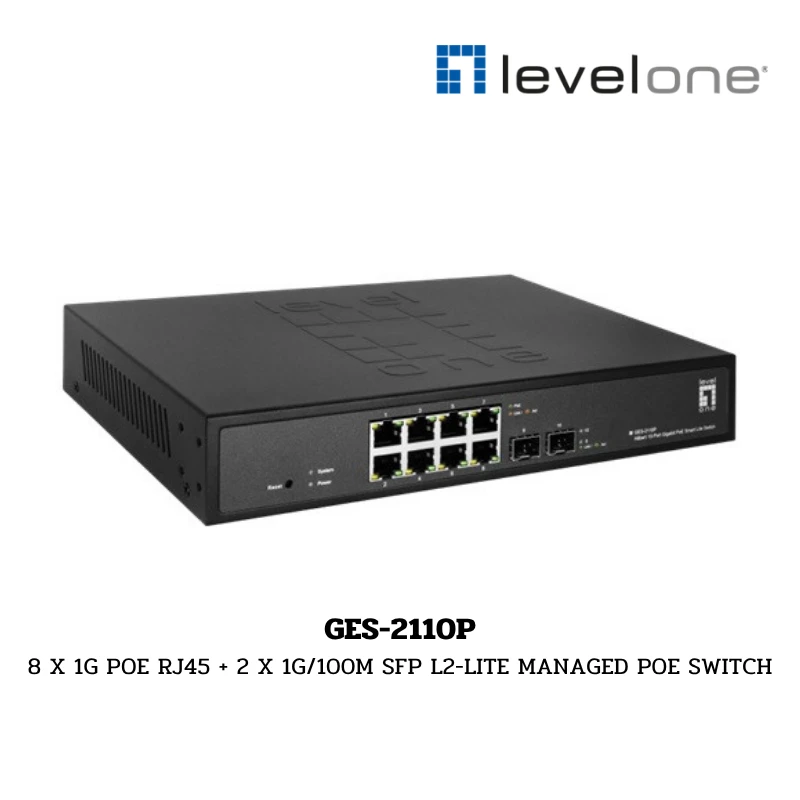

(GES-2110P) Levelone 8 X 1G POE RJ45 + 2 X 1G/100M SFP L2-LITE MANAGED POE SWITCH
LevelOne GES-2110P เป็นสมาร์ทสวิตช์ในซีรีส์ HILBERT ที่ออกแบบมาเพื่อการจัดการเครือข่ายระดับเริ่มต้น (L2-Lite Managed) มาพร้อมพอร์ต Gigabit PoE+ จำนวน 8 พอร์ต และพอร์ต SFP สำหรับการเชื่อมต่อ Fiber Uplink อีก 2 พอร์ต จุดเด่นคือการทำงานแบบไร้พัดลม (Fanless) ทำให้ไม่มีเสียงรบกวน (0 dB) เหมาะสำหรับติดตั้งในสำนักงานหรือพื้นที่ที่ต้องการความเงียบ รองรับงบประมาณกำลังไฟ PoE รวม 130 วัตต์ และสามารถจัดการผ่าน Web GUI ได้อย่างง่ายดาย
-
Port Configuration: 8 Gigabit PoE+ Ethernet ports for edge devices and 2 Gigabit SFP uplink slots for fiber connectivity
-
PoE Power Budget: Total PoE power budget of 130W, delivering up to 30W per port for IEEE 802.3af/at devices
-
Performance: 10/100/1000Mbps auto-negotiation, 9K jumbo frames and 8K MAC address table for high-speed traffic
-
Smart PoE Management: PoE Watchdog helps automatically recover frozen powered devices for higher reliability
-
Extended PoE: Supports 250m Extended PoE in 10Mbps mode to reach distant IP cameras or APs
-
Traffic & Security: 802.1Q tag-based VLAN, IEEE 802.1p QoS with 4 priority queues, IGMP Snooping and storm control
-
Easy Management: Web-based Smart Lite management and LevelOne IP Locator utility for simple switch discovery and IP management
-
Rugged Protection: 4kV surge protection plus 6kV contact / 8kV air ESD protection for stable long-term operation
-
Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet reduces power usage without sacrificing throughput
ข้อมูลจำเพาะ (Specification)
| รายการ (Feature) | รายละเอียด (Description) |
| Model Number | GES-2110P |
| Features |
L2 Switching Features ● IGMP Snooping ● Link Aggregation (Supports static link aggregation) ● Port Mirroring ● Cable Test
VLAN ● Supports up to 32 VLANs (out of 4K VLAN IDs) ● MTU/Port/802.1Q VLAN
Quality of Service (QoS) ● Support Port-based/802.1p/DSCP priority ● Support 4 priority queues ● Rate Limit ● Storm Control |
| Management |
● Web-based Graphic User Interface (GUI) ● Supports LevelOne IP Locator for easier IP management. |
| PoE Power Budget | Total 130.00 |
| PoE Supported | Yes |
| Concurrent ports | Total 10.00 |
| Fanless | Yes |
| Manageable | Yes |
| Series | HILBERT series |
| Grade | Commercial |
| Switching capacity | 20 Gbps |
| Approval and Compliance |
● CE ● UKCA ● FCC Part 15, Subpart B Class B ● RoHS |
| Operating humidity | 10% RH ~ 90% RH |
| Operating temperature | 0°C ~ 50°C |
| Storage humidity | 5% RH ~ 95% RH |
| Storage temperature | -40°C ~ 70°C |
| Package Contents |
● GES-2110P ● Power Cord ● 19″ Rack Mount Kit ● Quick Installation Guide ● Declaration of Conformity |
| Color | Black |
| EAN | 4015867229217 |
| Dimensions (W x D x H) | 271 x 181.5 x 44.5 mm |
| Product weight (kg) | 1.2 kg |
| Acoustic noise (dB) | 0 dB (A) |
| Backplane (Gbps) | 20 |
| Data Rate | 1Gbps |
| Flash memory size | 2 MB |
| Packet forwarding rate | 14.88 Mpps |
| Heat dissipation | 40.94 (Btu/H) |
| Indicators | Link/Act, System, Power, PoE |
| Jumbo frame (KB) | 9 K |
| MAC address table | 8 K |
| Mount | 19″ rack mount, Desk mount |
| MTBF | 43,800 hrs |
| Packet buffer | 4.1 Mbits |
| Pin assignment and polarity | 1/2 (+), 3/6 (-) |
| Port Configuration | 8x 10/100/1000 Ethernet PoE+ ports, 2x 100/1000 SFP Ports |
| Power consumption | 150W (full loading/PoE on) |
| Power supply | 100-240 VAC, 50-60 Hz |
| Power supply included | Yes |
| Standard |
● IEEE 802.3 10-BASE-T (Ethernet) ● IEEE 802.3u 100-BASE-TX (Fast Ethernet) ● IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) ● IEEE 802.3z 1000BASE-X (Gigabit Ethernet) ● IEEE 802.3x Flow Control (full-duplex flow control) ● IEEE 802.3af Power over Ethernet (PoE) ● IEEE 802.3at Power over Ethernet Plus (PoE+) ● IEEE 802.3az: Energy Efficient Ethernet |
