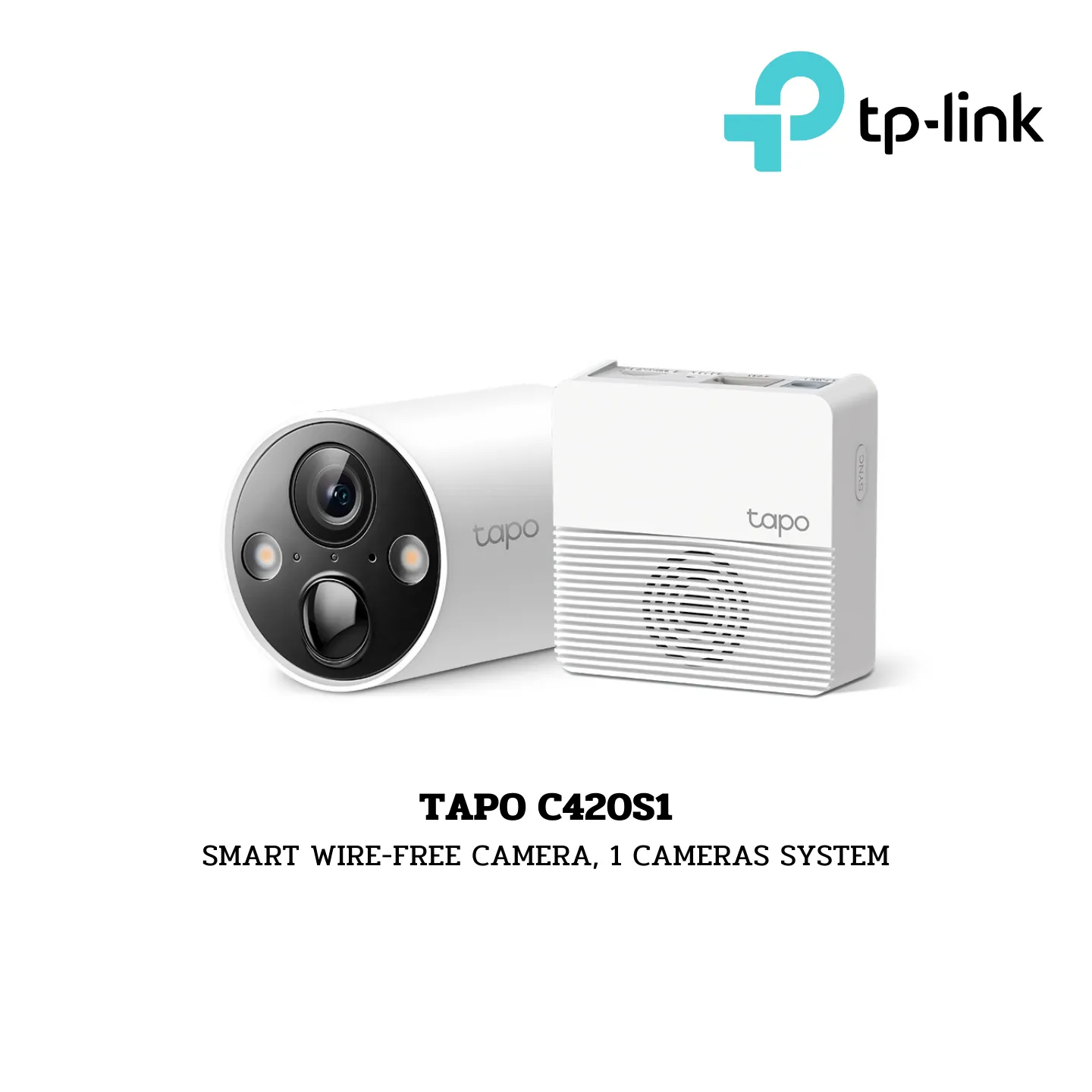

TP-Link TAPO Smart Camera รุ่น TAPO C420S1

TAPO C420S1
SMART WIRE-FREE CAMERA, 1 CAMERAS SYSTEM

Brand:

• TP-Link

Description:

• Smart Wire-Free Security Camera, 1 Camera System

Components:

• 1 × Tapo C420
• 1 × Tapo H200

Specifications:

• Resolution:
  • 2K QHD (2560×1440)
• Connectivity:
  • 2.4 GHz Wi-Fi
• Battery:
  • 5200mAh rechargeable lithium-ion battery

Features:

• 180 Days Battery Life: Long-lasting battery for continuous security.
• Smart Detection and Notifications: Detects motion, people, pets, and cars, and sends alerts to your phone.
• Color Night Vision: Clear visibility in color even at night.
• Sound and Light Alarm: Activates alarms to deter potential intruders.
• Remote Control: Control the camera remotely via the Tapo app.
• Two-Way Audio: Communicate with visitors through the built-in microphone and speaker.
• Voice Control: Compatible with Google Assistant and Alexa for hands-free operation.
• Local Storage: Supports microSD card storage (up to 256 GB).
• Tapo App: Easy setup and management through the Tapo app.
• Weatherproof: Rated IP65 for outdoor use.
• Night Vision: Clear visibility in the dark, up to 15 m.

Detailed Specifications:

Camera:

• Image Sensor:
  • 1/3“
• Lens:
  • F/NO: 1.61±10%
  • Focal Length: 3.18mm±5%
• Night Vision:
  • 850 nm IR LED up to 49 ft/15m
• Lighting:
  • 2× Built-in Spotlights
• Interface & Button:
  • 1× SYNC/RESET Button
• Hub Compatibility:
  • Compatible with Tapo H200 (Included)
• Viewing Angle:
  • 113°
• Resolution:
  • 2K QHD (2560 × 1440 px)

Hub:

• Device Compatibility:
  • Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells.
• Connection Capacity:
  • Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells
• Interface & Button:
  • 1× Ethernet Port
  • 1× RESET Button
  • 1× SYNC Button
  • 1× MicroSD Card Slot (Up to 512 GB)

Video & Audio:

• Maximum Resolution:
  • 2K QHD 4MP (2560 × 1440 px)
• Frame Rate:
  • 15 fps/20 fps
• Digital Zoom:
  • 12×
• Video Compression:
  • H.264
• Live View:
  • Yes
• Image Enhancement:
  • 3DNR, WDR
• Audio Input & Output:
  • Built-in Microphone and Speaker
• Audio Communication:
  • Two-Way Audio with Noise Cancellation
• Siren Volume:
  • Camera: 92 dB (Level measured at 4-inch/10-cm distance)
  • Hub: 100 dB (Level measured at 4-inch/10-cm distance)

Storage:

• Local Storage:
  • MicroSD Card Slot on Hub (Up to 512 GB)
• Cloud Storage:
  • Tapo Care Cloud Storage Services (Subscription required)

Detection and Notifications:

• Sensor:
  • Single Motion Sensor (FOV: 110° horizontal), Single Ambient Light Sensors
• AI Detection:
  • Motion Detection, Person Detection, Pet Detection, Vehicle Detection
• Activity Zones:
  • Yes
• Output Notification:
  • System Notification, System Notification with Snapshot (Tapo Care Services)

Audio:

• Audio Communication:
  • Two-way audio
• Audio Input & Output:
  • Built-in microphone and speaker

Network:

• Network Connectivity:
  • Connect via Wi-Fi or Ethernet
• Wireless Connectivity:
  • IEEE 802.11b/g/n, 2.4 GHz Wi-Fi, Sub-1G, 868MHz or 922MHz (Used for local connection between camera and hub)
• Protocol:
  • TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
• Ethernet Port:
  • 1× 10/100 Mbps RJ45 Port on Hub
• Wireless Security:
  • WPA/WPA2-PSK
• Wi-Fi Protocol:
  • IEEE 802.11b/g/n, 2.4 GHz
• Frequency:
  • 2.4 GHz

Security:

• Security:
  • 128-bit AES Encryption with SSL/TLS, WPA/WPA2-PSK

Power:

• Power Source:
  • Hub: 9V DC Power Adapter
  • Camera: 6700 mAh Removable Rechargeable Lithium-ion Battery, Optional Solar Panel (Tapo A200) (Sold separately)
• Input Voltage:
  • Camera Battery Pack Adapter Input: 100-240 V, 50/60 Hz
  • Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A
• Output Voltage:
  • Camera Battery Pack Adapter Output: 5.0 V, 1.0 A
  • Hub Adapter Output: 9.0 V, 0.85 A

Activity Notifications:

• Input Trigger:
  • Motion detection, Person detection, Pet detection, Vehicle detection
• Output Notification:
  • Notification, Snapshot (Tapo Care), Clips (Tapo Care)

Hardware:

• Button:
  • Camera Button: Reset/SYNC Button
  • Hub Button: Reset Button; SYNC Button
• Indicator LED:
  • Camera Indicator LED: System LED
  • Hub Indicator LED: System LED
• Adapter Input:
  • Camera Adapter Input: 100-240V, 50/60Hz
  • Hub Adapter Input: 100-240V, 50/60Hz, 0.3A
• Adapter Output:
  • Camera Adapter Output: 5.0V, 1.0A
  • Hub Adapter Output: 9.0V, 0.85A
• Dimensions (W x D x H):
  • Camera Dimensions: 4.35 x 2.52 x 2.52 in. (110.6 x 64.2 x 64.2 mm)
  • Hub Dimensions (L x W x H): 2.8 x 2.8 x 1.2 in. (71.45 x 71.45 x 31.25 mm)

General:

• Smart Integration:
  • Google Assistant, Amazon Alexa
• Weather Resistance:
  • Camera: IP65
• System Requirements:
  • Tapo App: iOS 11.0 or higher, Android 5.0 or higher
• Mounting Options:
  • Tabletop, Ceiling-Mounted, Wall-Mounted
• Operating Temperature:
  • Camera: -20℃~45℃
  • Hub: 0℃~40℃
• Storage Temperature:
  • -20℃~60℃
• Operating Humidity:
  • 10%~90% RH, Non-condensing
• Storage Humidity:
  • 5%~90% RH, Non-condensing
• Charging Temperature:
  • 0-55℃

Package Contents:

• Tapo C420 Camera
• Tapo A100 Battery
• Tapo H200 Hub
• USB Adapter
• USB Adapter Cable
• DC Power Adapter
• Mounting Anchors
• Mounting Screws
• Mounting Template
• Camera Bracket
• Quick Start Guide
• RJ45 Ethernet Cable

Certifications:

• CE, FCC, RoHS, RCM

Video/Image:

• Video Compression:
  • H.264
• Frame Rate & Resolutions:
  • 15/20 fps
• Video Streaming:
  • 2K QHD

Environment:

• Operating Temperature:
  • -20℃~45℃(-4°F ~113 °F)
• Storage Temperature:
  • -20℃~60℃ (-4°F~140°F)
• Operating Humidity:
  • 10%~90% RH, Non-condensing
• Storage Humidity:
  • 5%~90% RH, Non-condensing
