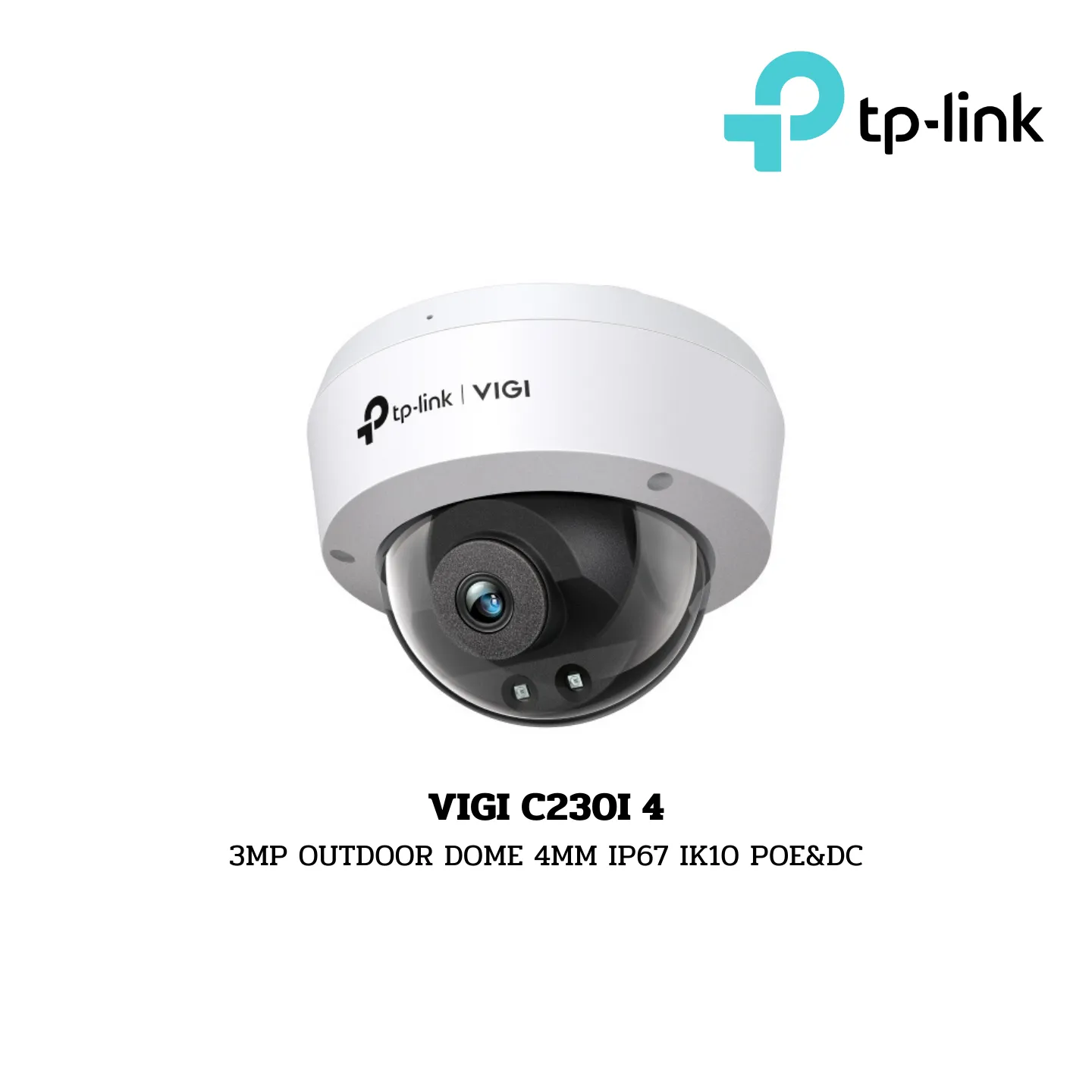

TP-Link Camera IR SERIES รุ่น VIGI C230I 4

VIGI C230I 4
TP-Link 3MP OUTDOOR DOME 4MM IP67 IK10 POE&DC

Brand:

• TP-Link

Camera:

• Image Sensor:
  • 1/2.8” Progressive Scan CMOS
• Shutter Speed:
  • 1/3 to 1/10000 s
• Slow Shutter:
  • Yes
• Minimum Illumination:
  • Color: 0.01 Lux; 0 Lux with IR
• Day/Night Mechanism:
  • IR Cut Filter
• Day/Night Switch:
  • Unified/ Scheduled/ Auto

Lens:

• Type:
  • Fixed Focal Lens
• Focal Length:
  • 2.8 mm/4 mm
• Aperture:
  • F2.2 (for 2.8 mm), F2.0 (for 4 mm)
• FOV:
  • 2.8 mm: Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9°
  • 4 mm: Horizontal FOV: 82.8°, Vertical FOV: 44.5°, Diagonal FOV: 98.1°
• Lens Mount:
  • M12
• DORI Distance:
  • 2.8 mm: Detect: 49 m (161 ft), Observe: 20 m (67 ft), Recognize: 10 m (32 ft), Identify: 5 m (16 ft)
  • 4 mm: Detect: 65 m (214 ft), Observe: 27 m (89 ft), Recognize: 13 m (43 ft), Identify: 7 m (21 ft)

Manual Angle Adjustment:

• Pan:
  • 0° to 355°
• Tilt:
  • 0° to 75°

Illuminator:

• IR LED:
  • Quantity: 2, Range: 30m, Wavelength: 850nm
• White LED:
  • N/A
• Illuminator On/Off Control:
  • Auto/Scheduled/Always on/Always off

Video:

• Max. Resolution:
  • 2304 × 1296

Main Stream:

• Frame Rate:
  • 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Resolution:
  • 2304×1296, 2048×1280, 1920×1080, 1280×720
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream:

• Frame Rate:
  • 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Resolution:
  • 704×576, 640×480, 352×288, 320×240
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control:
  • CBR, VBR
• Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
• Video Bit Rate:
  • Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps

Image Settings:

• Options: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
• Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Parameters Switch: Yes
• Privacy Mask: Up to 4 Masks
• ROI: 1 Region
• OSD Setting: Yes

Audio:

• Communication: N/A
• Input: Yes
• Output: N/A
• Compression: Yes
• Sampling Rate: 8KHz
• Noise Filtering: Yes
• Bit Rate: 64 Kbps (G.711 alaw)

Network:

• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SNMP, IEEE 802.1x
• ONVIF: Yes
• API: Open Network Video Interface (Profile S)
• Live View: 3 Main Streams & 3 Sub-Streams
• Client: VIGI App, VIGI Security Manager, Web UI
• Browser: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above
• Cloud: Yes
• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Alarm & Event Management:

• Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Abnormal Sound Detection, People Detection, Vehicle Detection
• Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login)
• Alarm Linkage: Message Push

Interfaces:

• Network: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm: N/A
• Reset Button: N/A
• Power: DC Power Port
• Storage: N/A
• Microphone: Yes; Records anything within a 15-ft radius
• Speaker: N/A

General:

• Operating Temp: -30–60 °C
• Storage Temp: -40–60 °C
• Operating Humidity: 95% or Less (Non-Condensing)
• Storage Humidity: 95% or Less (Non-Condensing)
• Material: Plastic
• Net Weight: 0.27 Kg
• Gross Weight: 0.45 Kg
• Power Supply: 12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 5.5 W
• Protection: IP67 Waterproof, IK10 Vandal Proof
• Dimensions: 115× 115× 86 mm (4.53× 4.53× 3.39 in)

Certifications:

• CE, NTRA, VCCI, BSMI

Package Contents:

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
