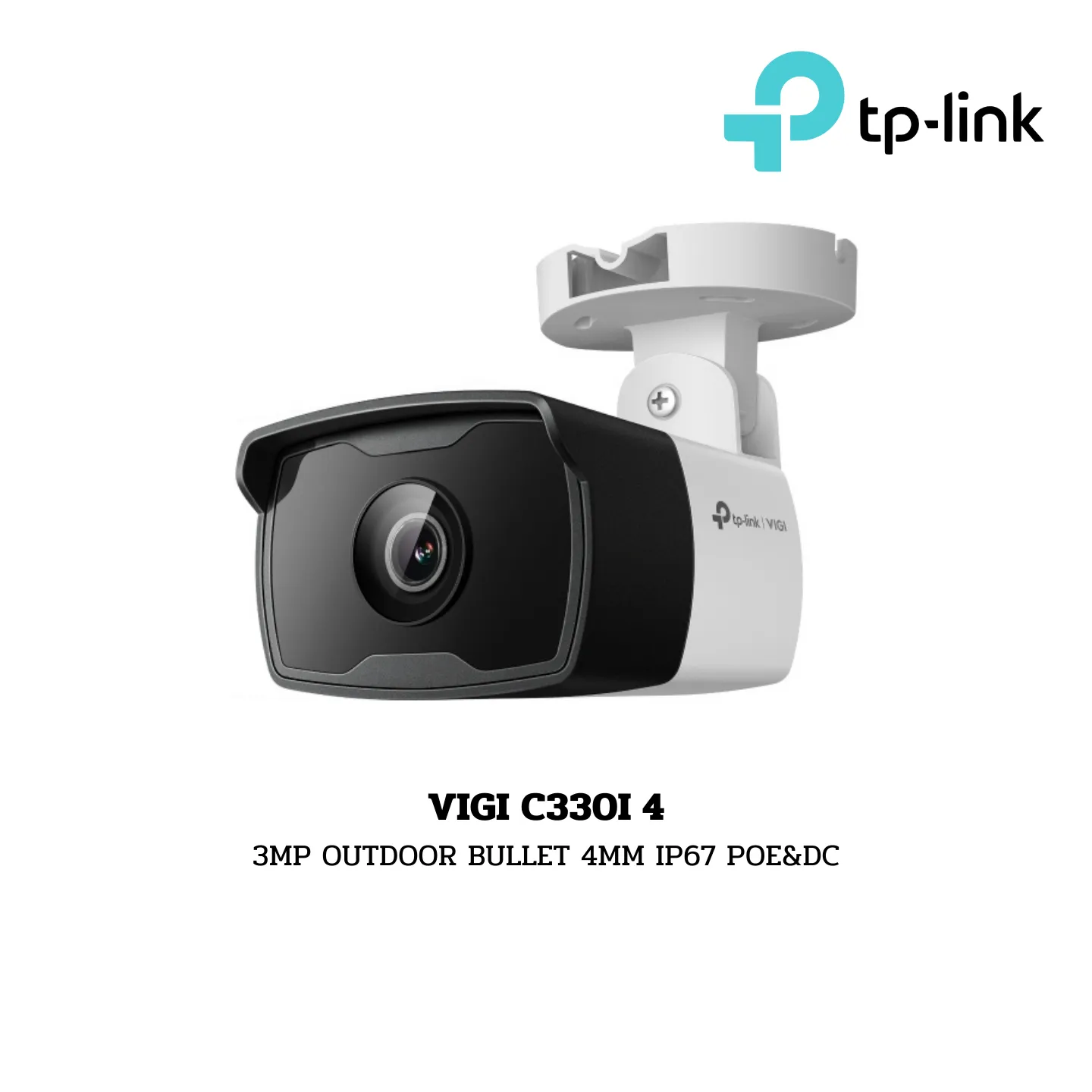

TP-Link Camera IR SERIES รุ่น VIGI C330I 4

VIGI C330I 4
3MP OUTDOOR BULLET 4MM IP67 POE&DC

Brand:

• TP-Link

Camera:

• Image Sensor: 1/2.8” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter: Yes
• Aperture:
  • 2.8 mm: F2.2
  • 4 mm: F2.0
  • 6 mm: F2.0
• Lens: 2.8 mm/4 mm/6 mm
• Lens Mount: M12
• Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Day/Night/Auto/Schedule-Switch
• Digital Noise Reduction: 3D DNR
• Wide Dynamic Range: DWDR
• Weatherproof Rating: IP67
• IR Working Distance: 30m
• Viewing Angle:
  • 2.8 mm: Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9°
  • 4 mm: Horizontal FOV: 82.5°, Vertical FOV: 44.9°, Diagonal FOV: 99.3°
  • 6 mm: Horizontal FOV: 51.9°, Vertical FOV: 28.7°, Diagonal FOV: 60°

Lens:

• Type: Fixed Focal Lens
• Focal Length: 2.8 mm/4 mm/6 mm
• Aperture:
  • 2.8 mm: F2.2
  • 4 mm: F2.0
  • 6 mm: F2.0
• FOV:
  • 2.8 mm: Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9°
  • 4 mm: Horizontal FOV: 82.5°, Vertical FOV: 44.9°, Diagonal FOV: 99.3°
  • 6 mm: Horizontal FOV: 51.9°, Vertical FOV: 28.7°, Diagonal FOV: 60°
• Lens Mount: M12
• DORI Distance:
  • 2.8 mm: Detect: 49 m (161 ft), Observe: 20 m (67 ft), Recognize: 10 m (32 ft), Identify: 5 m (16 ft)
  • 4 mm: Detect: 65 m (214 ft), Observe: 27 m (89 ft), Recognize: 13 m (43 ft), Identify: 7 m (21 ft)
  • 6 mm: Detect: 98 m (321 ft), Observe: 41 m (134 ft), Recognize: 20 m (64 ft), Identify: 10 m (32 ft)

Manual Angle Adjustment:

• Pan: -90° to 90°
• Tilt: -90° to 90°

Illuminator:

• IR LED:
  • Quantity: 2, Range: 30m, Wavelength: 850nm
• White LED: N/A
• Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

Video:

• Max. Resolution: 2304 × 1296

Main Stream:

• Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream:

• Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 704×576, 640×480, 352×288, 320×240
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control: CBR, VBR
• Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264
• Video Bit Rate:
  • Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps

Image Settings:

• Options: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
• Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Parameters Switch: Yes
• Privacy Mask: Up to 4 Masks
• ROI: 1 Region
• OSD Setting: Yes

Audio:

• Audio Communication: N/A
• Audio Input: N/A
• Audio Output: N/A
• Audio Compression: N/A
• Audio Sampling Rate: N/A
• Environment Noise Filtering: N/A
• Audio Bit Rate: N/A

Network:

• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SNMP, IEEE 802.1x
• ONVIF: Yes
• API: ONVIF
• Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above
• Cloud: Yes
• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Network Storage: NAS (NFS, SMB/CIFS)

Alarm & Event Management:

• Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
• Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login)
• Alarm Linkage: Message Push

Interfaces:

• Network: 1 RJ45 10/100M Self-Adaptive Ethernet Port
• Alarm: N/A
• Reset Button: N/A
• Power: DC Power Port
• Storage: N/A
• Microphone: N/A
• Speaker: N/A

General:

• Operating Temp: -30–60 °C
• Storage Temp: -40–60 °C
• Operating Humidity: 95% or Less (Non-Condensing)
• Storage Humidity: 95% or Less (Non-Condensing)
• Material: Plastic
• Net Weight: 0.2 Kg
• Gross Weight: 0.35 Kg
• Power Consumption:
  • 12V DC: Max 5W
  • PoE: Class 0
• Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug; PoE (802.3af/at, class 0)
• Protection: IP67
• Dimensions: 174 × 74 × 71 mm

Certifications:

• CE, BSMI, VCCI, ONVIF

Package Contents:

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
