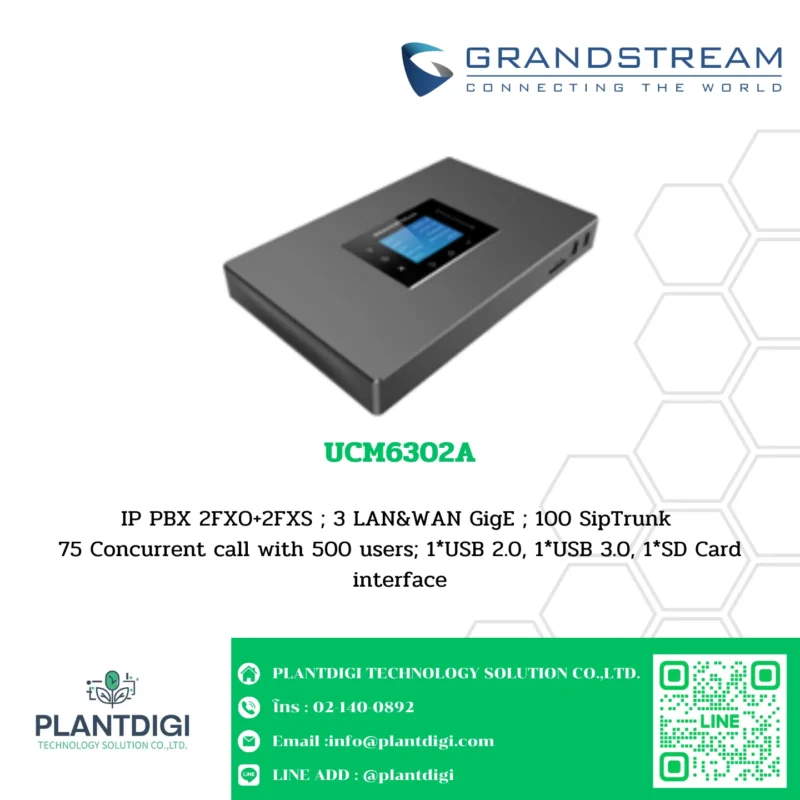

GrandStream IP PBX รุ่น UCM6302A

Name: GrandStream IP PBX รุ่น UCM6302A ตัวแทนจำหน่าย Grandstream ราคา ขาย ติดต่อสอบถาม
SKU: UCM6302A
Price: 19400.00 THB
Availability: InStock

฿19,400.00

UCM6302A

IP PBX 2FXO+2FXS ; 3 LAN&WAN GigE ; 100 SipTrunk
75 Concurrent call with 500 users; 1*USB 2.0, 1*USB 3.0, 1*SD Card interface

ติดต่อเราเพื่อสั่งซื้อ สอบถาม หรือขอใบเสนอราคา
โทร : 02-140-0892
มือถือ : 089-314-3423
Line ID : @plantdigi
Email : info@plantdigi.com

📋 ขอใบเสนอราคา สอบถามเพิ่มเติม

สั่งจองสินค้าได้

รหัสสินค้า: UCM6302A หมวดหมู่: IP PBX GrandStream, UCM6300 Series, ระบบโทรศัพท์ VoIP ป้ายกำกับ: Grandstream, UCM-6302-A, UCM6302A

คำอธิบาย

UCM6302A

Grandstream UCM6302A IP PBX 2FXO+2FXS ; 3 LAN&WAN GigE ; 100 SipTrunk 75 Concurrent call with 500 users; 1*USB 2.0, 1*USB 3.0, 1*SD Card interface

The UCM6300 Audio series enables businesses to create robust and scalable unified communication and collaboration solutions. This series of IP PBXs integrates essential business communication needs, including voice, instant messaging (IM), voice meetings, audio web meetings, data, analytics, mobility, facility access, and intercoms. Supporting up to 1500 users, it includes built-in IM, voice/web conferencing, and the free Wave App for communication across desktops, mobile devices, IP phones, and other SIP endpoints. It supports UCM RemoteConnect cloud service for a hybrid platform that combines on-premise IP PBX control with cloud manageability, offering a comprehensive communication solution for organizations.

Analog Telephone FXS Ports

2 RJ11 ports
All ports have lifeline capability in case of power outage

PSTN Line FXO Ports

2 RJ11 ports
All ports have lifeline capability in case of power outage

Network Interfaces: Three self-adaptive Gigabit ports (switched, routed or dual mode) with PoE+

NAT Router: Yes (supports router mode and switch mode)

Peripheral Ports

1*USB 2.0
1*USB 3.0
1*SD card interface

LED Indicators: None

LCD Display: 320×240 color LCD with touch screen for Shortcut Keys and Scroll Bar

Reset Switch: Yes, long press for factory reset and short press for reboot

Voice-over-Packet Capabilities

LEC with NLP Packetized Voice Protocol Unit
128ms-tail-length carrier grade Line Echo Cancellation
Dynamic Jitter Buffer
Modem detection & auto-switch to G.711
NetEQ, FEC 2.0, jitter resilience up to 50% audio packet loss

Voice and Fax Codecs

s LEC with NLP Packetized Voice Protocol Unit
128ms-tail-length carrier grade Line Echo Cancellation
Dynamic Jitter Buffer, Modem detection & auto-switch to G.711
NetEQ
FEC 2.0
jitter resilience up to 50% audio packet loss

Video Codecs: Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.1 5.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38

QoS: Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

API: Full API available for third-party platform and application integration

Telephony Operating System: Based on Asterisk version 16

DTMF Methods: In-band audio, RFC2833, and SIP INFO

Provisioning Protocol & Plug-and-Play

Mass provisioning using AES encrypted XML configuration file
Auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk

Network Protocols:TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP, TLS, LDAP,
HDLC, HDLC-ETH, PPP, Frame Relay (pending), IPv6, OpenVPN®

Disconnect Methods: Busy/Congestion/Howl Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect

Media Encryption: SRTP, TLS, HTTPS, SSH, 802.1X

Universal Power Supply

Input: 100 ~ 240VAC, 50/60Hz
Output: DC 12V, 1.5A

Dimensions: 270mm(L) x 175mm(W) x 36mm(H)

Weight

Unit Weight: 755g
Package Weight: 1221g

Temperature & Humidity

Operating: 32 – 113ºF / 0 ~ 45ºC, Humidity 10 – 90% (non-condensing)
Storage: 14 – 140ºF / -10 ~ 60ºC, Humidity 10 – 90% (non-condensing)

Mounting: Wall mount & Desktop

Multi-Language Support

Web UI: English, Simplified Chinese, Traditional Chinese, Spanish, French, Portuguese, German, Russian, Italian, Polish, Czech, Turkish
Customizable IVR/voice prompts: English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew, Arabic, Nederlands
Customizable language pack to support any other languages

Caller ID: Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT

Polarity Reversal/Wink: Yes, with enable/disable option upon call establishment and termination

Call Center Features: Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/ workload, in-queue
announcement

Customizable Auto Attendant: Up to 5 layers of IVR (Interactive Voice Response) in multiple languages

Maximum Call Capacity

Users: 500
Concurrent Calls (G.711): 75
Max Concurrent SRTP Calls (G.711): 75

Conference Bridges

Video Conference Rooms: Up to 25 simultaneous rooms
Participants: Up to 300 simultaneous participants across all rooms
Video Feeds: Up to 9 video feeds in all conference rooms

Wave App: Free; Available for desktop (Windows 10+, Mac OS 10+), web (Firefox and Chrome Browsers) and mobile (Android & iOS), allows users
to join UCM-hosted meetings, communicate with other users/solutions and make/receive calls using SIP accounts registered to a
UCM6300 Audio series IP PBX

Call Features: Call park, call forward, call transfer, call waiting, caller ID, call record, call history, ringtone, IVR, music on hold, call routes, DID, DOD, DND, DISA, ring group, ring simultaneously, time schedule, PIN groups, call queue, pickup group, paging/intercom, voicemail, call wakeup, SCA, BLF, voicemail to email, fax to email, speed dial, call back, dial by name, emergency call, call follow me, blacklist/whitelist, voice meeting, eventlist, feature codes, busy camp-on/ call completion, voice control

Firmware Upgrade: Supported by Grandstream Device Management System (GDMS), a zero-touch cloud provisioning and management system, It provides a centralized interface to provision, manage, monitor and troubleshoot Grandstream products

Internet Protocol Standards: RFC 3261, RFC 3262, RFC 3263, RFC 3264, RFC 3515, RFC 3311, RFC 4028. RFC 2976, RFC 3842, RFC 3892, RFC 3428, RFC 4733, RFC 4566, RFC 2617, RFC 3856, RFC 3711, RFC 5245, RFC 5389, RFC 5766, RFC 6347, RFC 6455, RFC 8860, RFC 4734, RFC 3665, RFC 3323, RFC 3550

Compliance

FCC: Part 15 (CFR 47) Class B, Part 68
CE: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 62368.1, ES 203 021, ITU-T K.21
IC: ICES-003, CS-03 Part I Issue 9
RCM: AS/NZS CISPR 32, AS/NZS 62368.1, AS/CA S002, AS/CA S003.1/.2
Power adapter: UL 60950-1 or UL 62368-1

สอบถามค่าติดตั้ง Service Installation
