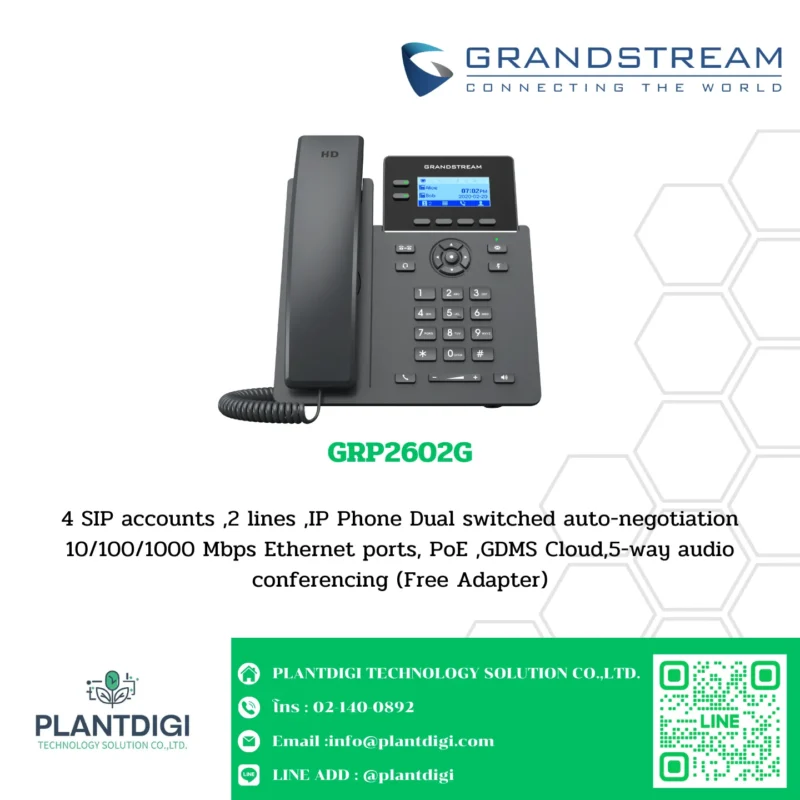

GrandStream IP Phone รุ่น GRP2602G

GRP2602G

4 SIP accounts ,2 lines ,IP Phone Dual switched auto-negotiation 10/100/1000 Mbps Ethernet ports, PoE ,GDMS Cloud,5-way audio conferencing
(Free Adapter)

The GRP2602 features 5-way voice conferencing to maximize productivity, integrated PoE (GRP2602P/GRP2602G), Wi-Fi support (GRP2602W), and is supported by Grandstream’s Device Management System (GDMS).



Protocols/Standards

SIP: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, SNMP, 802.1x, TLS, SRTP, IPv6

Network Interfaces

• Dual switched auto-negotiation 10/100 Mbps Ethernet ports, integrated PoE (GRP2602P only)
• Dual switched auto-negotiation 10/100/1000 Mbps Ethernet ports, integrated PoE (GRP2602G only)

Wi-Fi: GRP2602W: Integrated dual-band (2.4GHz and 5GHz) Wi-Fi 6 (802.11a/b/g/n/ac/ax) – hardware version 5.0 and above

Graphic Display: 132 x 48 (2.41’’) backlit graphical LCD display

Feature Keys

• 2 line keys with dual-color LED and support for 4 SIP accounts
• 4 XML programmable context-sensitive soft keys
• 5 navigation/menu keys
• 8 dedicated function keys for: MESSAGE (with LED indicator), TRANSFER, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL-

Auxiliary Port: RJ9 headset jack (allowing EHS with Plantronics & Jabra & Sennheiser headsets)

Voice Codecs and Capabilities

• Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G.723, iLBC, OPUS
• In-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
• VAD, AEC, CNG, PLC, AGC, AJB

Telephony Features

• Hold, transfer, forward, 5-way conference, call park, call pickup
• Shared-call appearance (SCA)/bridged-line appearance (BLA)
• Downloadable phonebook (XML, LDAP, up to 2000 items)
• Call waiting, call log (up to 800 records)
• Off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking
• Personalized music ringtones and music on hold, server redundancy and fail-over

HD Audio: Yes, HD handset and speakerphone with support for wideband audio

Base Stand: Yes, 1 angle position available (45°), Wall Mountable (Wall mount sold separately)

QoS: Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and administrator level passwords, MD5 and MD5-sess based authentication
• 256-bit AES encrypted configuration file
• SRTP, TLS, 802.1x media access control, secure boot

Multi-language Support: Simplified Chinese, Traditional Chinese, English, Arabic, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Korean, Latvian, Dutch, Polish, Portuguese, Russian, Swedish, Slovenian, Slovak, Turkish, Ukrainian

Upgrade/Provisioning

• Firmware upgrade via FTP/TFTP/HTTP/HTTPS
• Mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file

Power & Green Energy Efficiency

• Universal Power Supply:
  • Input: 100-240VAC 50-60Hz
  • Output: +5VDC, 600mA
• PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (GRP2602P/GRP2602G only)

Temperature and Humidity

• Operation: 0°C to 40°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing

Package Content

• GRP2602 phone
• Handset with cord
• Base stand
• Universal power supply (GRP2602 / GRP2602W / GRP2602G only)
• Network cable
• Quick Installation Guide

Physical Dimensions

• Dimension: 208mm (L) x 180mm (W) x 63.4mm (H) (with handset)
• Unit Weight: 670g
• Package Weight:
  • 880g (GRP2602 / GRP2602G / GRP2602W)
  • 830g (GRP2602P)



Compliance

GRP2602 / GRP2602P / GRP2602G:

• FCC: Part 15 Subpart B, Class B; Part 68 HAC
• CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1
• RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004
• IC: ICES-003; CS-03 Part V

GRP2602W:

• FCC: Part 15 Subpart B, Class B; Part 15 Subpart E, 15.407; Part 15 Subpart C, 15.247
• CE: ETSI EN 301 893; ETSI EN 301 489-1/-17; ETSI EN 300 328; EN 62368-1; EN 62311; EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3
• IC: RSS-247 Issue 2; RSS-Gen Issue 5; ICES-003 Issue 7; CS-03, Part V
• RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 2772.2; AS/NZS 62368.1; AS/CA S004

สอบถามค่าติดตั้ง Service Installation
