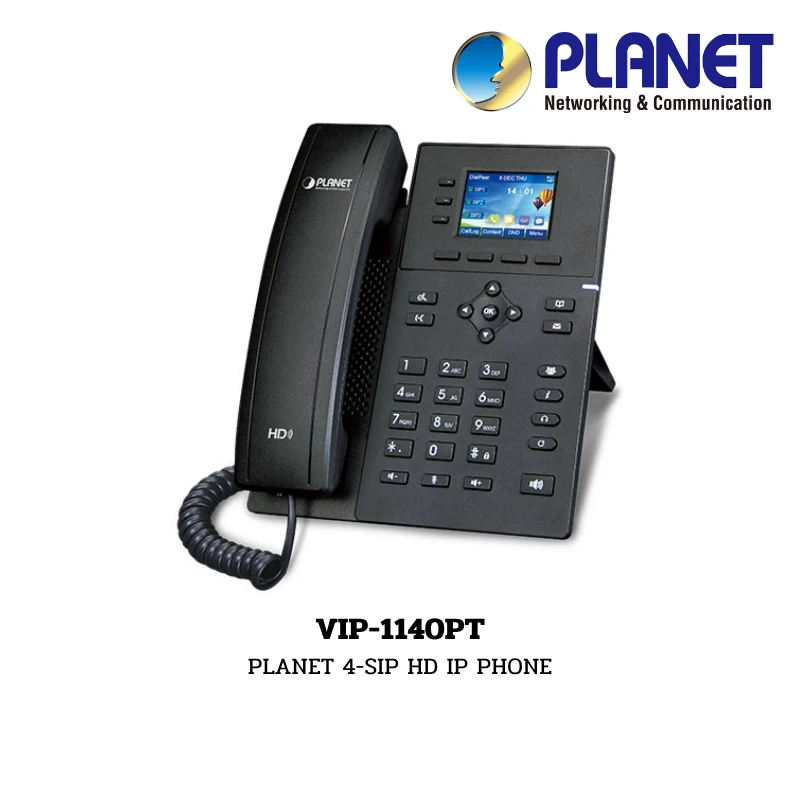

(VIP-1140PT) PLANET 4-SIP HD IP PHONE
Planet VIP-1140PT เป็นโทรศัพท์ไอพีคุณภาพสูงที่รองรับการใช้งานได้ถึง 4 SIP Lines มาพร้อมหน้าจอสีแบบ WVA ขนาด 2.4 นิ้ว ที่ให้ความคมชัดและมุมมองที่กว้างขึ้น ออกแบบมาเพื่อเพิ่มประสิทธิภาพในการสื่อสารด้วยระบบเสียง HD Voice ทั้งจากตัวหูฟังและลำโพง Hands-free รองรับการจ่ายไฟผ่านสายแลน (PoE) มาตรฐาน 802.3af ช่วยให้การติดตั้งทำได้สะดวกโดยไม่ต้องใช้ Adpater ภายนอก นอกจากนี้ยังรองรับฟีเจอร์การประชุมสายในตัวได้สูงสุดถึง 6 สาย (6-way conferencing) และมีระบบรักษาความปลอดภัยในการสนทนาด้วยการเข้ารหัส SRTP และ TLS เหมาะสำหรับพนักงานออฟฟิศที่ต้องการโทรศัพท์ที่มีฟังก์ชันครบครันและใช้งานง่าย
ข้อมูลจำเพาะ (Specifications)
| รายการ (Feature) | รายละเอียด (Description) |
| Lines (Direct Numbers) | 4 SIP Lines |
| Physical Interfaces |
LCD x 1: 2.4-inch (320 x 240) WVA color LCD Keypad: 36 keys, including: 3 line keys with tri-color LED 4 soft-keys 5 navigation keys 8 function keys 12 standard phone digit keys 3 volume control keys — Up, Down, Mute (microphone) 1 hands-free key HD hands-free speaker (0 ~ 7KHz) x 1 HD hands-free microphone (0 ~ 7KHz) x 1 HD handset (RJ9) x 1 |
| Connectors |
RJ9 phone jacket x 2: Handset x 1, Headphone x 1 RJ45 10/100BASE-TX Ethernet jacket x 2: Network x 1 (802.3af PoE Class 1 enabled) PC x 1 (Bridged Network) |
| Protocols |
SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP PPPoE 802.1x L2TP (basic unencryption) OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR069 |
| Request for Comments (RFCs) | 354, 1321, 1350, 1769, 1889, 1890, 2131, 2132, 2616, 2617, 2661, 2833, 2976, 3261, 3262, 3263, 3264, 3265, 3268, 3311, 3489, 3711, 4346, 4566, 5630, 5865 |
| Networking |
Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass IP Configuration: Static, DHCP, PPPoE Network Access Control: 802.1x VPN: L2TP (basic unencryption), OpenVPN VLAN QoS |
| Deployment & Maintenance |
Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069 Web management portal Web-based packet dump Configuration backup/restore Auto/Manual online software upgrade Syslog |
| Call Features |
Call out, answer, reject Mute/unmute (microphone) Call hold, resume Call waiting Intercom Caller ID display Call forwarding (always/busy/no answer) Call transfer (attended/unattended) Call parking, pick-up (depending on server) Redial Do-not-disturb (per line/per phone) Auto-answering (per line) Voice message (on server) Local 6-way conferencing Hot line |
| Phone Features |
Phone accessibility control by user PIN Intelligent phonebook (up to 500 entries in total) Remote phonebook (XML/LDAP) Intelligent contact number matching/filtering Call log (300 entries in total, in/out/missed) Voice message waiting indication (VMWI) Network time synchronization Multi-language support (English, Chinese, Russian, Italian, German, French, etc.) |
| Audio Features |
HD voice microphone/speaker (handset/hands-free, 0~7KHz frequency response) Wideband ADC/DAC 16KHz sampling Narrowband codec: G.711a/u, G.723.1, G.726-32K, G.729A/B. iLBC Wideband codec: Opus, G.722 Full-duplex acoustic echo canceller (AEC) – 96ms tail-length Voice activity detection (VAD), comfort noise generation (CNG), background noise estimation (BNE), noise reduction (NR) Packet loss concealment (PLC) Dynamic adaptive jitter buffer up to 300ms DTMF: In-band, out-of-band – DTMF-relay (RFC 2833), SIP info |
| Power Requirements |
IEEE 802.3af/at Power over Ethernet 5V 600mA |
| Weight | 665g |
| Dimensions (W x D x H) | 210 x 168 x 60 mm |
| Environment |
Operating Temperature: 0 ~ 45 degrees C Operating Humidity: 10 ~ 65% (non-condensing) |
| Emission | CE, FCC, RoHS |
