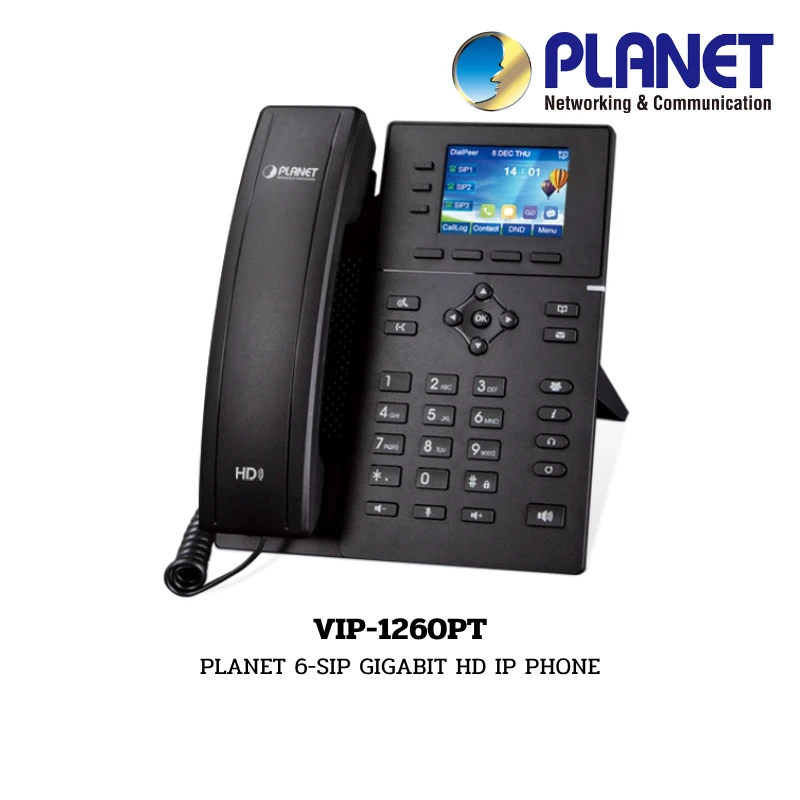

(VIP-1260PT) PLANET 6-SIP GIGABIT HD IP PHONE

LCD x 1: 2.8-inch (320 x 240) WVA color LCD

Keypad: 36 keys, including:

3 line keys with tri-color LED

4 soft-keys

5 navigation keys

8 function keys

12 standard phone digit keys

3 volume control keys — Up, Down, Mute (microphone)

1 hands-free key

HD hands-free speaker (0 ~ 7KHz) x 1

HD hands-free microphone (0 ~ 7KHz) x 1

HD handset (RJ9) x 1

RJ45 Ethernet jacket x 2:

Network x 1 (Gigabit 10/100/1000Mbps, 802.3af PoE Class 1 enabled)

PC x 1 (Gigabit 10/100/1000Mbps, Bridged Network)

SIP2.0 over UDP/TCP/TLS

RTP/RTCP/SRTP

STUN

DHCP

PPPoE

802.1x

L2TP (basic unencryption)

OpenVPN

SNTP

FTP/TFTP

HTTP/HTTPS

TR069

Physical: 10/100/1000Mbps Ethernet, bridged port for PC bypass

IP Configuration: Static, DHCP, PPPoE

VLAN

QoS

RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Network Access Control: 802.1x

VPN: L2TP (basic unencryption), OpenVPN

Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069

Web management portal

Web-based packet dump

Configuration Import/Export

Auto/Manual online software upgrade

Syslog

Call out, answer, reject

Mute/unmute (microphone)

Call hold, resume

Call waiting

Intercom

Caller ID display

Call forwarding (always/busy/no answer)

Call transfer (attended/unattended)

Call parking, pick-up (depending on server)

Redial

Do-not-disturb (per line/per phone)

Auto-answering (per line)

Voice message (on server)

Local 6-way conferencing

Hot line

Phone accessibility control by user PIN

Intelligent phonebook (up to 1000 entries in total)

Remote phonebook (XML/LDAP)

Intelligent contact number matching/filtering

Call log (600 entries in total, in/out/missed)

Voice message waiting indication (VMWI)

Network time synchronization

Multi-language support (English, Chinese, Russian, Italian, German, French, etc.)

HD voice microphone/speaker (handset/hands-free, 0~7KHz frequency response)

Wideband ADC/DAC 16KHz sampling

Narrowband codec: G.711a/u, G.723.1, G.726-32K, G.729A/B. iLBC

Wideband codec: Opus, G.722

Full-duplex acoustic echo canceller (AEC) – 96ms tail-length

Voice activity detection (VAD), comfort noise generation (CNG), background noise estimation (BNE), noise reduction (NR)

Packet loss concealment (PLC)

Dynamic adaptive jitter buffer up to 300ms

DTMF: In-band, out-of-band – DTMF-relay (RFC 2833), SIP info

IEEE 802.3af Power over Ethernet

5V 600mA

Operating Temperature: 0 ~ 45 degrees C

Operating Humidity: 10 ~ 95% (non-condensing)
