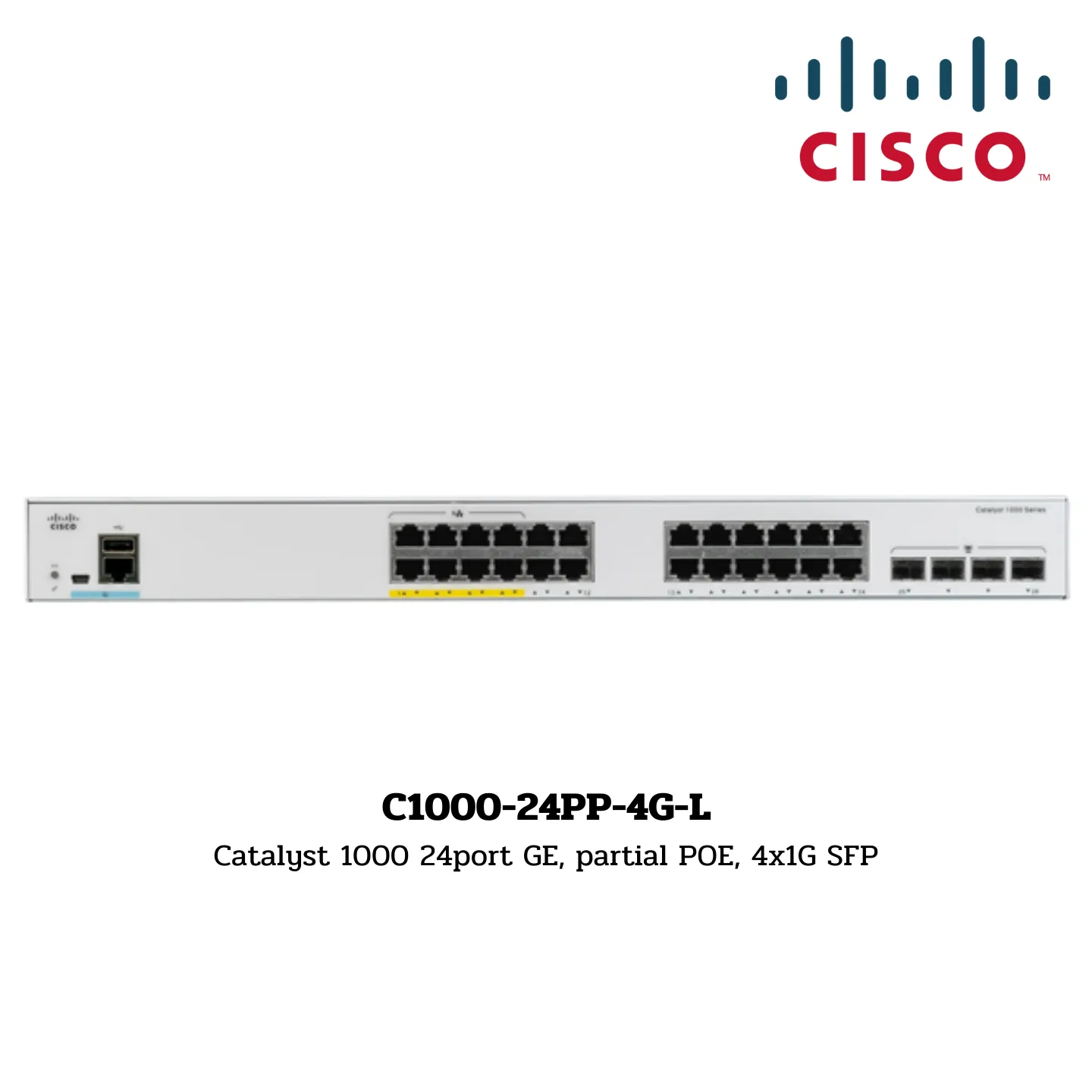

Switch Cisco Catalyst รุ่น C1000-24PP-4G-L

C1000-24PP-4G-L
Catalyst 1000 24port GE, partial POE, 4x1G SFP

The Cisco Catalyst C1000-24PP-4G-L is a managed switch designed for small to medium-sized businesses needing robust and efficient network solutions. Here’s an overview and its key features:

Overview

The Catalyst 1000 Series 24-port GE with partial PoE and 4x1G SFP is perfect for delivering reliable network connectivity. It offers partial Power over Ethernet (PoE) capabilities, making it suitable for powering devices like IP phones, wireless access points, and security cameras. This switch is designed to provide network efficiency, security, and manageability.

Key Features

• Port Configuration: 24 x Gigabit Ethernet (10/100/1000) PoE+ ports
• Uplink Ports: 4 x 1 Gigabit SFP ports
• PoE Power Budget: Supports up to 195W, providing adequate power for connected PoE devices.
• Switching Capacity: Offers up to 56 Gbps, ensuring efficient data transfer.
• Forwarding Rate: 41.66 Mpps (Million packets per second)
• Layer 3 Capabilities: Supports VLAN management and basic static routing for better network segmentation.
• Security Features: Includes Access Control Lists (ACLs), 802.1X support, and secure port connectivity to protect network integrity.
• Energy Efficiency: Meets Energy Efficient Ethernet (EEE) standards, helping reduce power consumption.
• Management: Managed via Cisco IOS software using Command-Line Interface (CLI) and an intuitive on-box web UI for easy setup and monitoring.

Specifications:

Network Interface:

• 24 x 10/100/1000 Ethernet (8 PoE+ and 16 standard ports)
• 4 x 1G SFP uplinks

Standards and Protocols:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1Q VLAN
• IEEE 802.3ab
• IEEE 802.3af and IEEE 802.3at
• IEEE 802.3az
• Bluetooth 4.0
• IEEE 802.1p
• IEEE 802.1X
• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
• IEEE 802.3ad (LACP)
• IEEE 802.3ah
• IEEE 802.1ab LLDP
• IEEE 802.1AX

Switching Capacity:

• Up to 56 Gbps

MAC Address Table:

• Supports up to 16,000 MAC addresses

Forwarding Rate:

• Up to 41.67 Mpps (Million packets per second)

Jumbo Frame:

• 10,240 bytes

CPU:

• ARM 800 MHz

Memory:

• 512 MB RAM
• 256 MB flash memory

PoE Power Budget:

• Supports up to 195W, providing sufficient power for multiple PoE devices

Security and Authentication:

• Kerberos
• Secure Shell (SSH)
• RADIUS
• TACACS+
• Secure Shell v2 (SSH2)

Layer 3 Capabilities:

• Supports VLAN management and basic static routing

Advanced Security:

• Access Control Lists (ACLs)
• 802.1X
• Intrusion Detection System (IDS)
• Dying Gasp
• IP source guard
• Weighted Tail Drop (WTD)
• Quality of Service (QoS)

Energy Efficiency:

• Compliant with Energy Efficient Ethernet (EEE) standards

Management:

• Managed via Cisco IOS software (CLI and web UI)
• Supports SNMP 1, 2c, and 3; RMON 1 and 2; Telnet; HTTP; TFTP; SSH; NTP; ICMP, DHCP, and TACACS+

Remote Management:

• SNMP 1, 2c, 3
• RMON 1 and 2
• Telnet
• HTTP
• SSH
• ICMP
• CLI
• NTP
• TACACS+
• RADIUS

Environment:

• Operating relative humidity: 5% to 90% at 40°C (non-condensing)
• Storage temperature: -25°C to 70°C (-13°F to 158°F)
• Storage altitude: up to 15,000 ft (4500m)
• Storage relative humidity: 5% to 95% at 65°C (non-condensing)

Physical Dimensions:

• Dimensions (W x D x H): 44.39 x 28.80 x 4.39 cm
• Net Weight: 3.95 kg
• Package Dimensions (W x D x H): 16.00 x 55.00 x 45.00 cm
• Gross Weight: 7.20 kg
• Volume: 39,600 cm³
