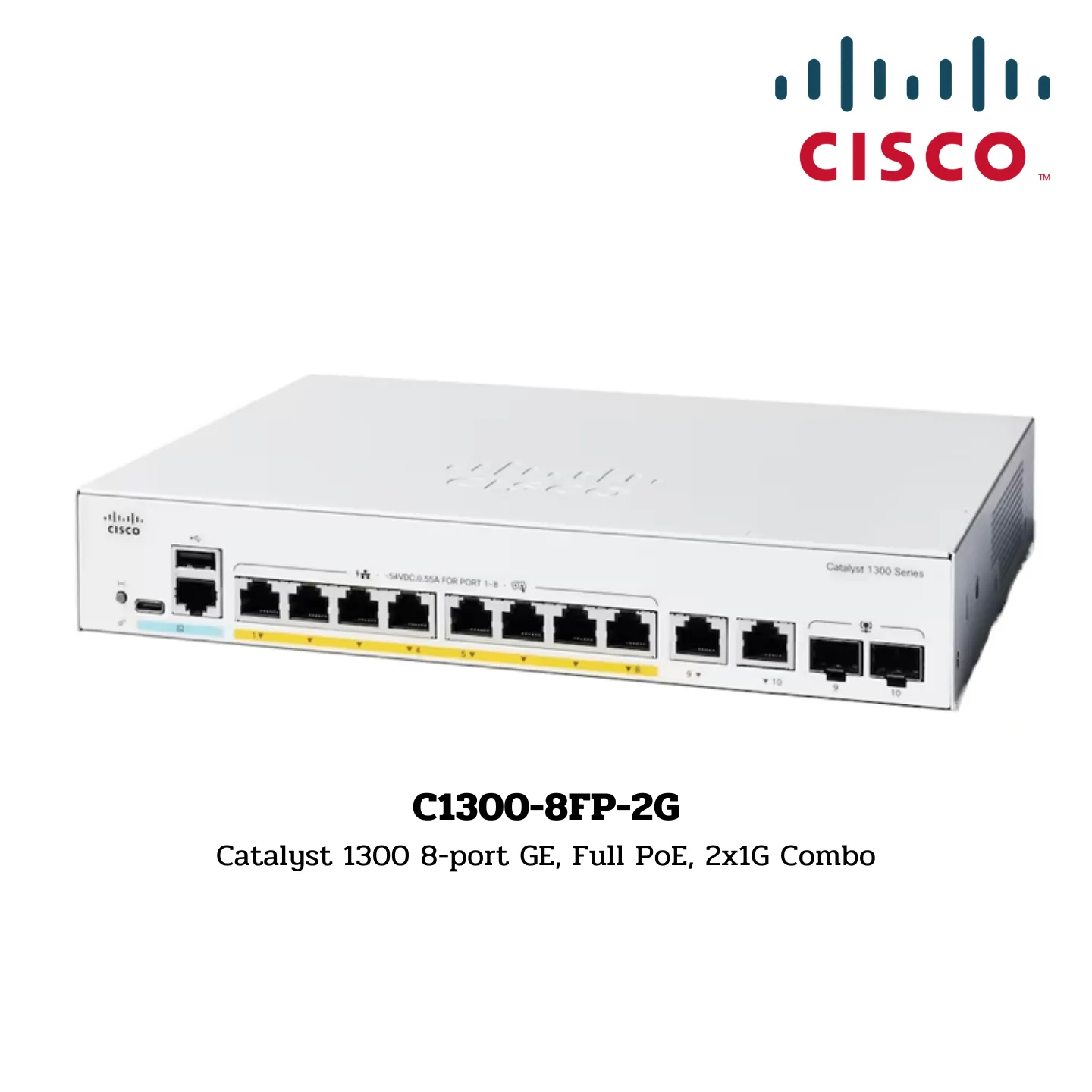

Switch Cisco Catalyst รุ่น C1300-8FP-2G

C1300-8FP-2G
Catalyst 1300 8-port GE, Full PoE, 2x1G Combo

The Cisco Catalyst C1300-8FP-2G is a high-performance enterprise-class switch designed for small to medium-sized businesses and branch offices. It offers full Power over Ethernet (PoE) capability along with advanced networking features. Here’s a detailed overview and its key features:

Overview

The Catalyst 1300 Series 8-port GE with Full PoE and 2x1G Combo switch is designed to provide robust network connectivity and support for various PoE devices. It ensures efficient data transfer and high availability, making it suitable for modern business applications.

Key Features

• Port Configuration: 8 x Gigabit Ethernet (10/100/1000) PoE+ ports.
• Uplink Ports: 2 x 1 Gigabit SFP combo ports, providing flexible uplink options.
• PoE Power Budget: Supports up to 120W, powering multiple PoE devices.
• Switching Capacity: Offers up to 20 Gbps, ensuring high-speed data handling.
• Forwarding Rate: 14.88 Mpps (Million packets per second), handling substantial traffic loads.
• Advanced Security: Includes features like Access Control Lists (ACLs) and secure port connectivity to maintain network integrity.
• Energy Efficiency: Complies with Energy Efficient Ethernet (EEE) standards, helping reduce power consumption.
• Management: Managed through the Cisco Business Dashboard and Cisco Business mobile app, simplifying network setup and monitoring.

Specifications:

Model:

• C1300-8FP-2G

Network Interface:

• 8 x 10/100/1000 PoE+ ports with 120W power budget
• 2 x Gigabit copper/SFP combo ports

USB Port:

• USB Type C port

Switching Capacity:

• 20.0 Gbps

MAC Address Table:

• 8K addresses

Jumbo Frame:

• Frame sizes up to 9000 bytes
• Default MTU: 2000 bytes

Packet Buffer Memory:

• 1.5 MB

CPU:

• ARM dual-core 1.4 GHz

RAM:

• 1 GB DDR4 SDRAM

Flash Memory:

• 512 MB

LED Indicators:

• System, Link/Act, PoE, Speed

MTBF:

• 1,786,412 hours

Fan Quantity:

• Fanless
