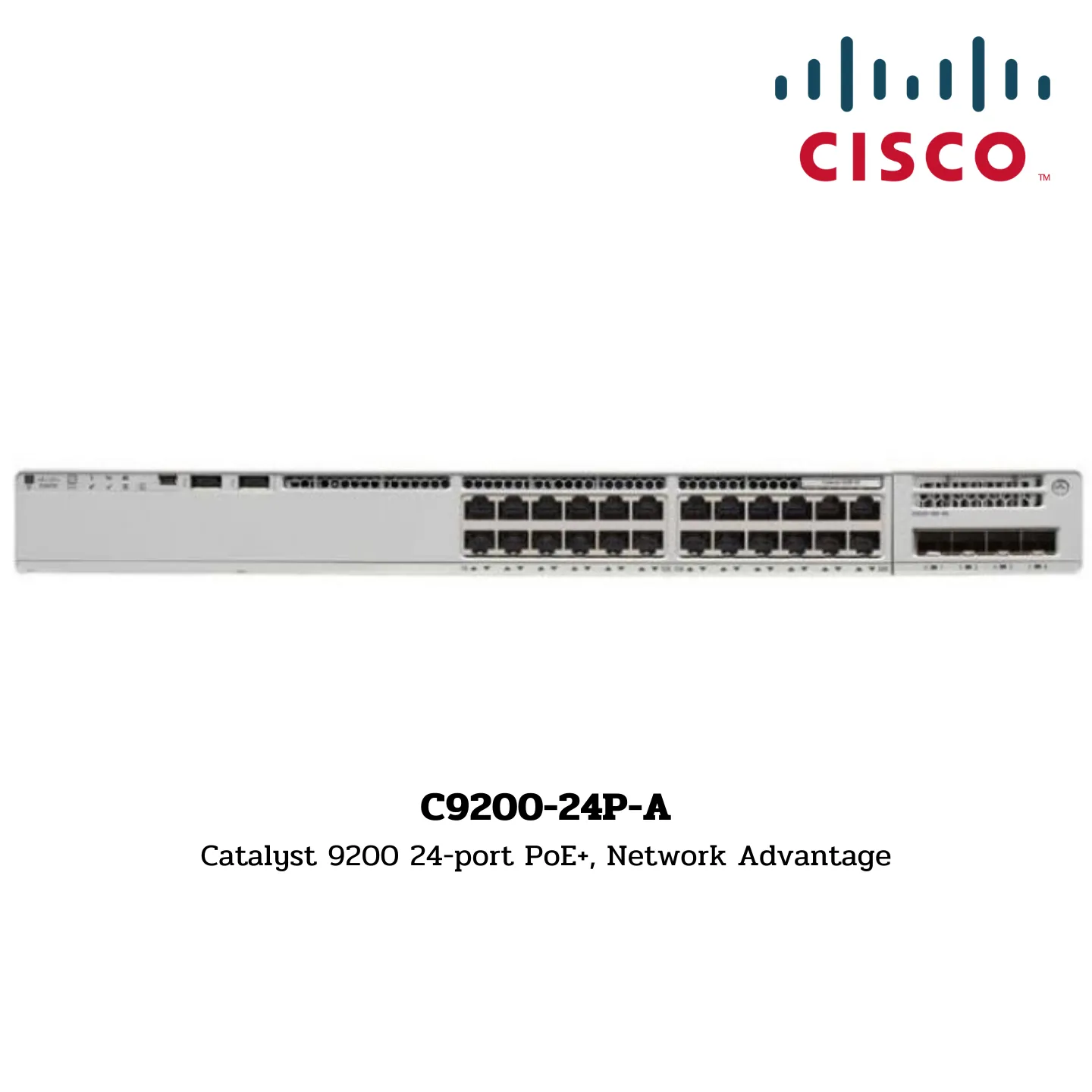

Switch Cisco Catalyst รุ่น C9200-24P-A

C9200-24P-A
Catalyst 9200 24-port PoE+, Network Advantage

Specifications:

Device Type:

• Switch – 24 ports – L3 – Managed – stackable

Enclosure Type:

• Rack-mountable

Virtual Networks:

• 4 for models: C9200-24T, C9200-24P, C9200-48T, C9200-48P, C9200-24PXG, C9200-48PXG, C9200-48PL
• 32 for models: C9200-24PB, C9200-48PB

Stacking Bandwidth:

• 160 Gbps

MAC Addresses:

• Total: 32,000

IPv4 Routes:

• Total: 14,000 (10,000 direct routes and 4,000 indirect routes)

Routing Entries:

• IPv4: 4,000
• IPv6: 2,000

Multicast Routing Scale:

• 1,000

QoS Scale Entries:

• 1,000

ACL Scale Entries:

• 1,600

Packet Buffer:

• Per SKU:
  • 6 MB for 24- or 48-port Gigabit Ethernet models
  • 12 MB for 24 or 48 port multigigabit models

Flexible NetFlow (FNF) Entries:

• 16,000 flows on 24- and 48-port Gigabit Ethernet models

DRAM:

• 4 GB

Flash:

• 4 GB

VLAN IDs:

• 4,096

PVST Instances:

• 128

STP Virtual Ports:

• PVST: 13,000 (Port * VLANs)
• MST: 13,000 (Port * VLANs)

Total Switched Virtual Interfaces (SVIs):

• 512

Jumbo Frames:

• 9,198 bytes

Wireless Bandwidth per Switch:

• Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model

IP SGT Binding Scale:

• 8K

IPv4 Bindings:

• 8K

SGT/DGT Policies:

• 2K

SXP Sessions:

• 200

Bandwidth Specifications:

• Switching Capacity: 128 Gbps
• Switch Capacity with Stacking: 288 Gbps
• Forwarding Rate: 95.23 Mpps
• Forwarding Rate with Stacking: 214 Mpps

Physical Specifications:

• Chassis Dimensions: 1.73 x 17.5 x 13.8 inches
• Weight: 12.12 pounds
• Mean Time Between Failures (MTBF): 422,310 hours
