Switch Cisco Catalyst รุ่น C9200-48T-E

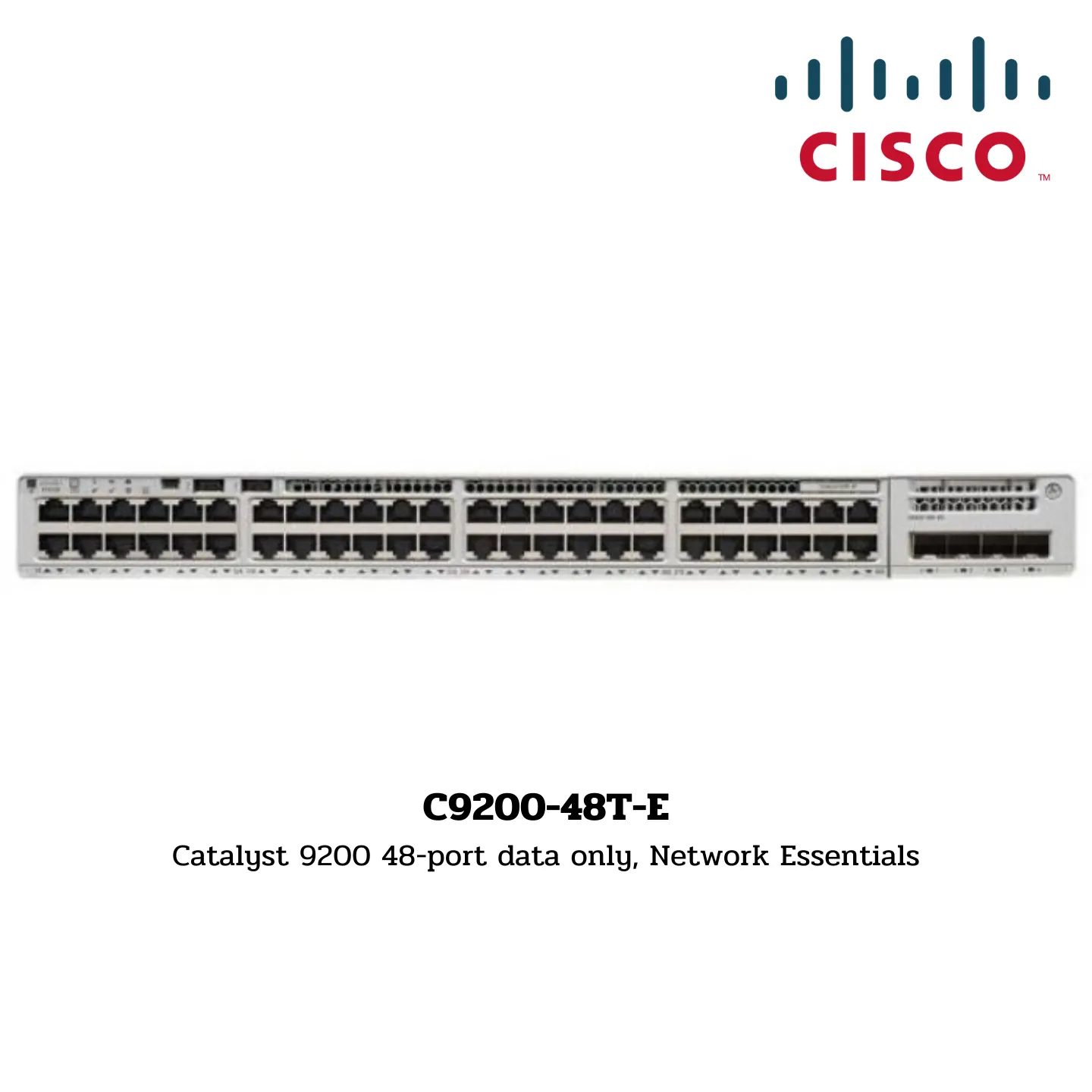

C9200-48T-E
Catalyst 9200 48-port data only, Network Essentials

Specifications:

Virtual Networks:

• 4 for models: C9200-24T, C9200-24P, C9200-48T, C9200-48P, C9200-24PXG, C9200-48PXG, C9200-48PL
• 32 for models: C9200-24PB, C9200-48PB

Stacking Bandwidth:

• 160 Gbps

MAC Addresses:

• Total: 32,000

IPv4 Routes:

• Total: 14,000 (10,000 direct routes and 4,000 indirect routes)

Routing Entries:

• IPv4: 4,000
• IPv6: 2,000

Multicast Routing Scale:

• 1,000

QoS Scale Entries:

• 1,000

ACL Scale Entries:

• 1,600

Packet Buffer per SKU:

• 6 MB for 24- or 48-port Gigabit Ethernet models
• 12 MB for 24- or 48-port multigigabit models

Flexible NetFlow (FNF) Entries:

• 16,000 flows on 24- and 48-port Gigabit Ethernet models

DRAM:

• 4 GB

Flash:

• 4 GB

VLAN IDs:

• 4,096

PVST Instances:

• 128

STP Virtual Ports:

• PVST: 13,000 (Port * VLANs)
• MST: 13,000 (Port * VLANs)

Total Switched Virtual Interfaces (SVIs):

• 512

Jumbo Frames:

• 9,198 bytes

Wireless Bandwidth per Switch:

• Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet models

IP SGT Binding Scale:

• 8K

IPv4 Bindings:

• 8K

SGT/DGT Policies:

• 2K

SXP Sessions:

• 200

Bandwidth Specifications:

Switching Capacity:

• 176 Gbps

Switch Capacity with Stacking:

• 336 Gbps

Forwarding Rate:

• 130.95 Mpps

Forwarding Rate with Stacking:

• 250 Mpps

Physical Specifications:

Chassis Dimensions:

• 1.73 x 17.5 x 13.8 Inches

Weight:

• 11.02 Pounds

Mean Time Between Failures (MTBF):

• 571,440 hours
