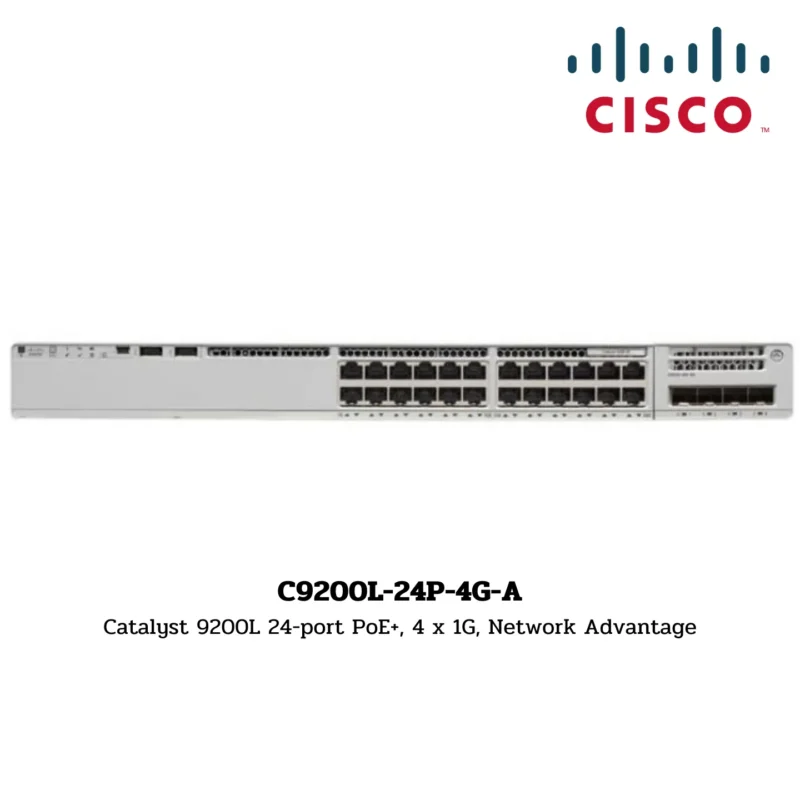

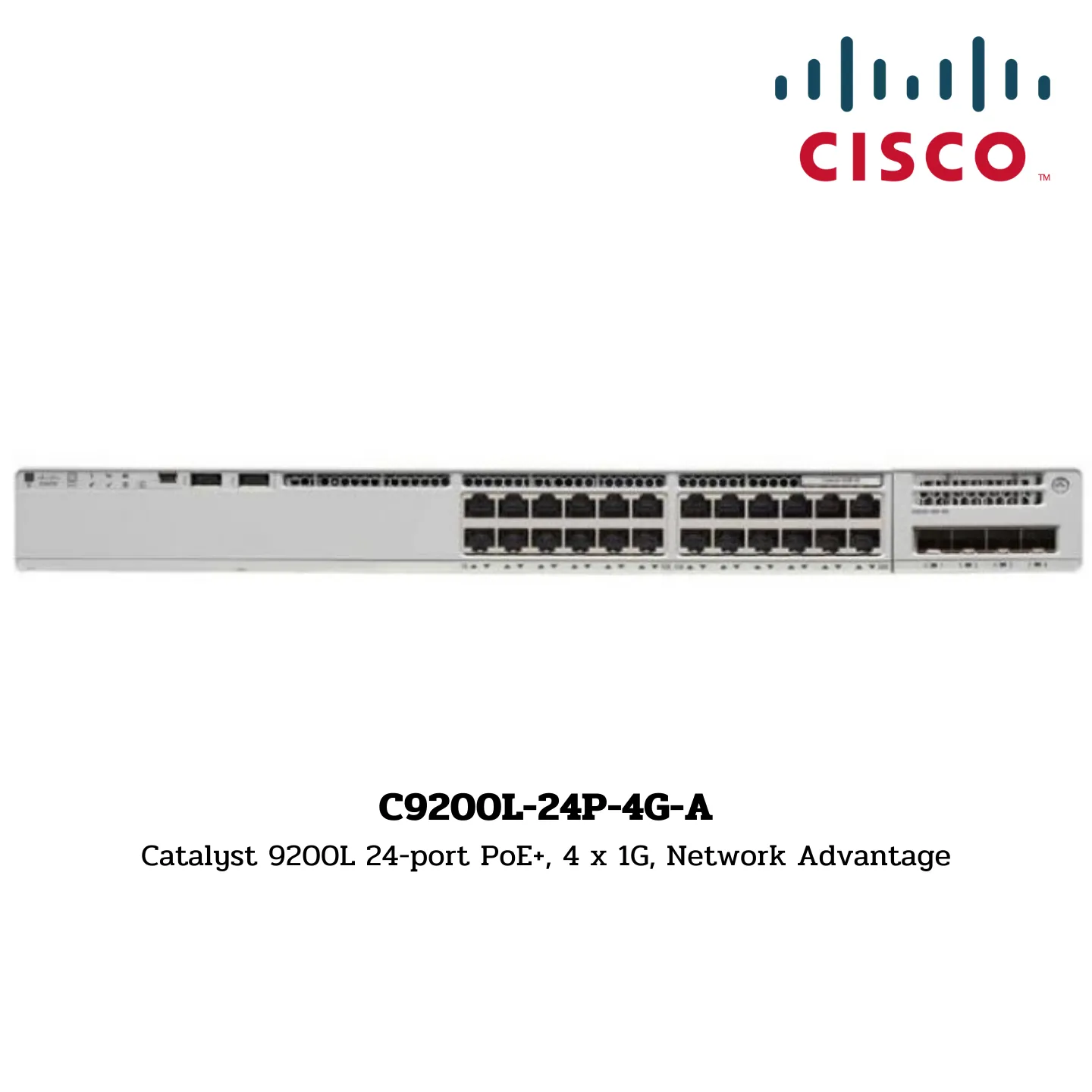

Cisco Catalyst รุ่น C9200L-24P-4G-A

C9200L-24P-4G-A
Catalyst 9200L 24-port PoE+, 4 x 1G, Network Advantage

Specifications:

Virtual Networks:

• 1

Stacking Bandwidth:

• 80 Gbps

MAC Addresses:

• Total: 16,000

IPv4 Routes:

• Total: 11,000 (8,000 direct routes and 3,000 indirect routes)

Routing Entries:

• IPv4: 3,000
• IPv6: 1,500

Multicast Routing Scale:

• 1,000

QoS Scale Entries:

• 1,000

ACL Scale Entries:

• 1,500

Packet Buffer per SKU:

• 6 MB for 24- or 48-port Gigabit Ethernet models
• 12 MB for 24- or 48-port multigigabit models

Flexible NetFlow (FNF) Entries:

• 16,000 flows on 24- and 48-port Gigabit Ethernet models
• 32,000 flows on 24- or 48-port multigigabit models

DRAM:

• 2 GB

Flash:

• 4 GB

VLAN IDs:

• 4,096

PVST Instances:

• 128

STP Virtual Ports:

• PVST: 13,000 (Port * VLANs)
• MST: 13,000 (Port * VLANs)

Total Switched Virtual Interfaces (SVIs):

• 512

Jumbo Frames:

• 9,198 bytes

Wireless Bandwidth per Switch:

• N/A

IP SGT Binding Scale:

• 10K

IPv4 Bindings:

• 10K

SGT/DGT Policies:

• 2K

SXP Sessions:

• 200

Bandwidth Specifications:

Switching Capacity:

• 56 Gbps

Switch Capacity with Stacking:

• 136 Gbps

Forwarding Rate:

• 41.67 Mpps

Forwarding Rate with Stacking:

• 101 Mpps

Physical Specifications:

Chassis Dimensions:

• 1.73 x 17.5 x 11.3 Inches

Weight:

• 10.38 Pounds

Mean Time Between Failures (MTBF):

• 392,210 hours
