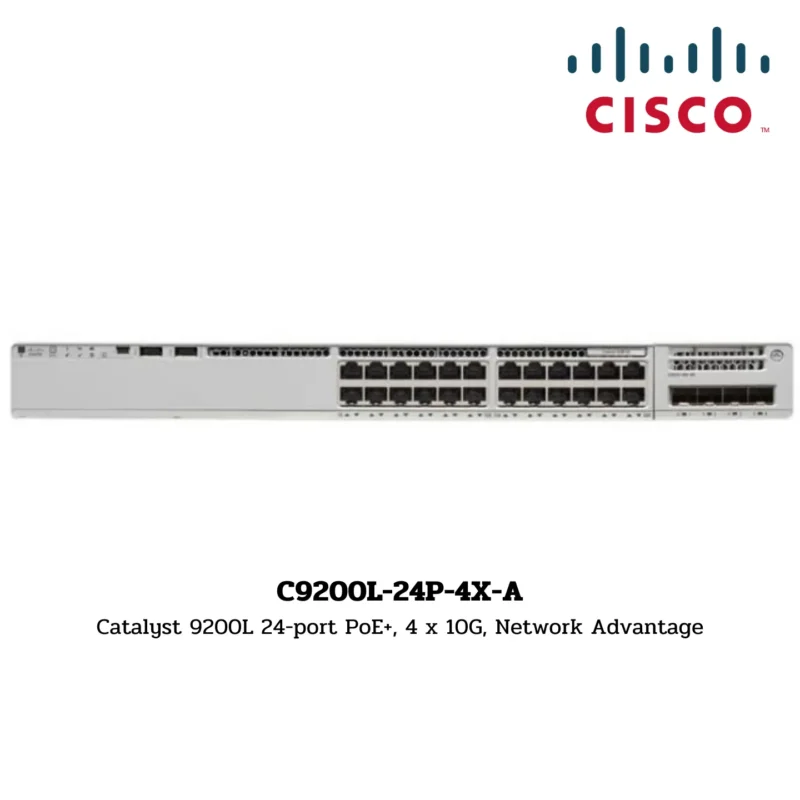

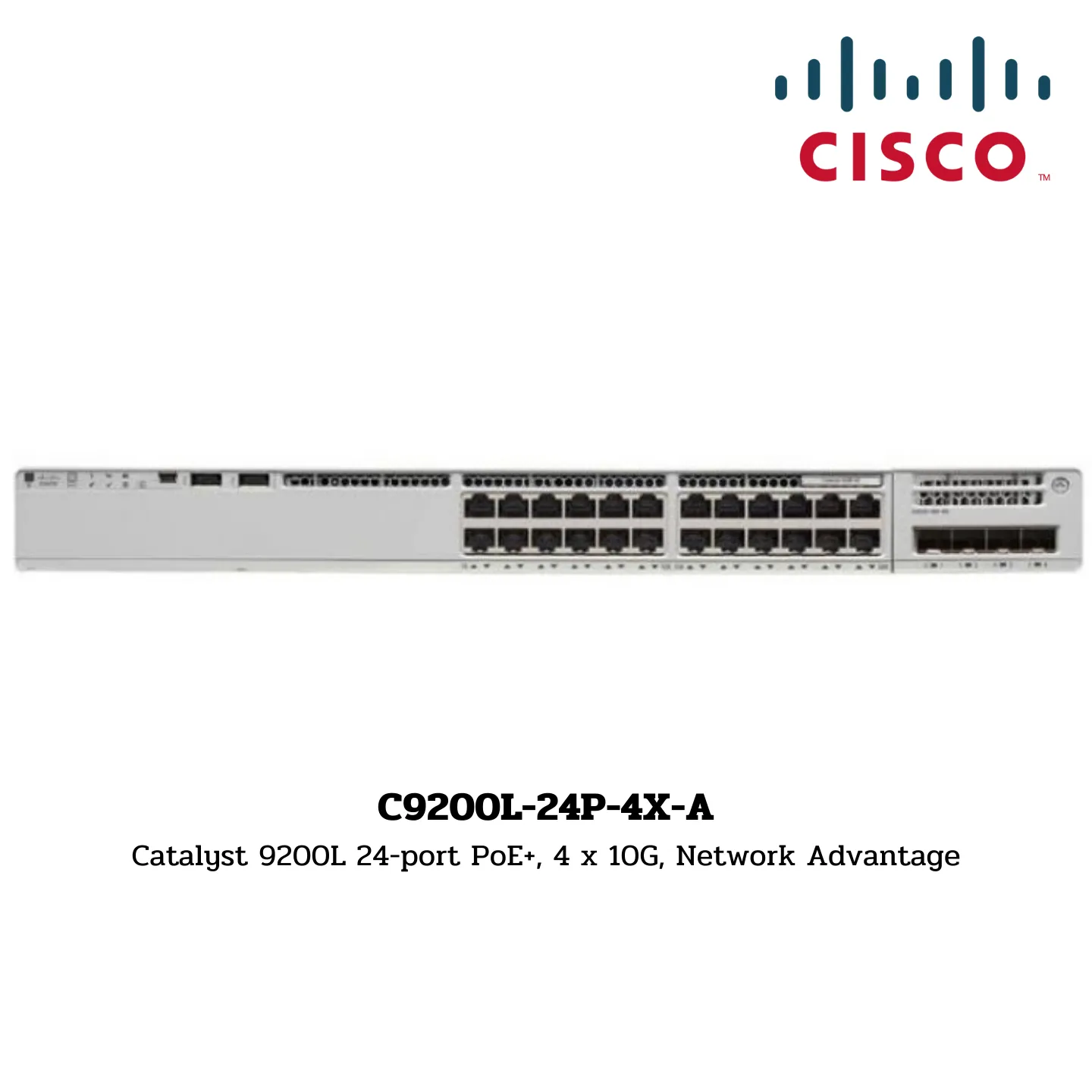

Cisco Catalyst รุ่น C9200L-24P-4X-A

C9200L-24P-4X-A
Catalyst 9200L 24-port PoE+, 4 x 10G, Network Advantage

Specifications:

Performance Specifications:

Virtual Networks:

• 1

Stacking Bandwidth:

• 80 Gbps

Total Number of MAC Addresses:

• 16,000

Total Number of IPv4 Routes (ARP plus learned routes):

• 11,000 (8,000 direct routes and 3,000 indirect routes)

IPv4 Routing Entries:

• 3,000

IPv6 Routing Entries:

• 1,500

Multicast Routing Scale:

• 1,000

QoS Scale Entries:

• 1,000

ACL Scale Entries:

• 1,500

Packet Buffer per SKU:

• 6 MB for 24- or 48-port Gigabit Ethernet models
• 12 MB for 24- or 48-port multigigabit models

Flexible NetFlow (FNF) Entries:

• 16,000 flows on 24- and 48-port Gigabit Ethernet models
• 32,000 flows on 24- or 48-port multigigabit models

DRAM:

• 2 GB

Flash:

• 4 GB

VLAN IDs:

• 4,096

PVST Instances:

• 128

STP Virtual Ports (Port * VLANs):

• PVST: 13,000
• MST: 13,000

Total Switched Virtual Interfaces (SVIs):

• 512

Jumbo Frames:

• 9,198 bytes

Wireless Bandwidth per Switch:

• N/A

IP SGT Binding Scale:

• 10K

Number of IPv4 Bindings:

• 10K

Number of SGT/DGT Policies:

• 2K

Number of SXP Sessions:

• 200

Bandwidth Specifications:

Switching Capacity:

• 128 Gbps

Switch Capacity with Stacking:

• 208 Gbps

Forwarding Rate:

• 95.23 Mpps

Forwarding Rate with Stacking:

• 155 Mpps

Physical Specifications:

Chassis Dimensions:

• 1.73 x 17.5 x 11.36 inches

Weight:

• 10.38 pounds

Mean Time Between Failures (MTBF):

• 390,310 hours
