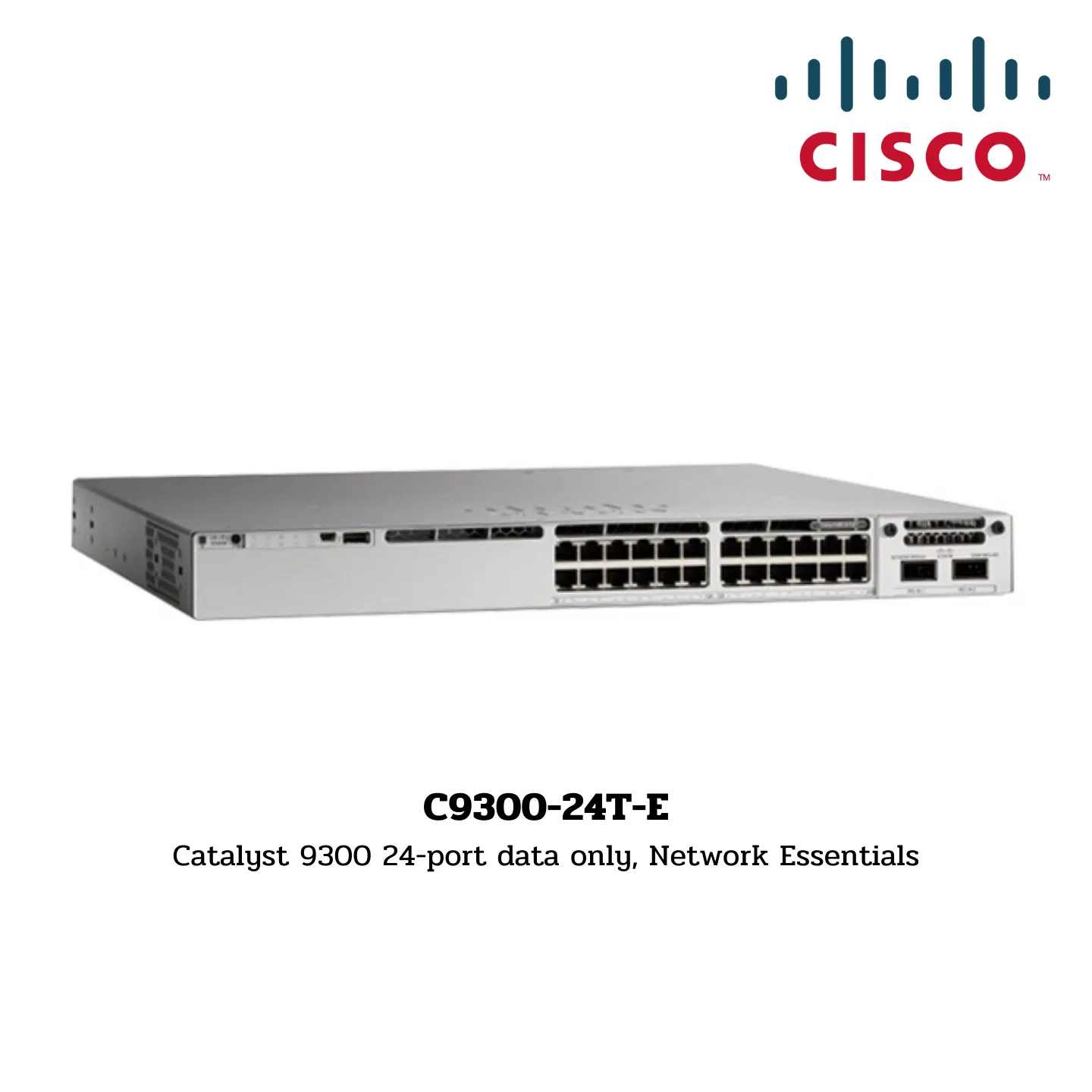

C9300-24T-E
Catalyst 9300 24-port data only, Network Essentials
Specifications:
Part Number:
- C9300-24T-E
Product Description:
- Catalyst 9300 24-port data only, Network Essentials
Downlinks:
- Total 10/100/1000 or Multigigabit Copper Ports: 24
Uplink Configuration:
- Default AC Power Supply: 350W AC
- Available PoE Power: —
- Cisco StackWise-480: Yes
- Cisco StackPower: Yes
- Default Power Supply: PWR-C1-350WAC-P/2
Performance Specifications:
Switching Capacity:
- 208 Gbps on 24-port Gigabit Ethernet model
Stacking Bandwidth:
- 480 Gbps
Total Number of MAC Addresses:
- 32,000
Total Number of IPv4 Routes (ARP plus learned routes):
- 32,000 (24,000 direct routes and 8,000 indirect routes)
IPv4 Routing Entries:
- 32,000
IPv6 Routing Entries:
- 16,000
Multicast Routing Scale:
- 8,000
QoS Scale Entries:
- 5,120
ACL Scale Entries:
- 5,120
Packet Buffer per SKU:
- 16 MB buffer for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) Entries:
- 64,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM:
- 8 GB
Flash:
- 16 GB
VLAN IDs:
- 4,000
Total Switched Virtual Interfaces (SVIs):
- 2,000
Jumbo Frames:
- 9,198 bytes
Total Routed Ports per 9300 Series Stack:
- 208
Wireless Bandwidth per Switch:
- Up to 48 Gbps on 24-port Gigabit Ethernet model
Forwarding Rate:
- 154.76 Mpps
Physical Specifications:
Dimensions (H x W x D):
- 1.73 x 17.5 x 17.5 Inches
Weight:
- 16.33 Pounds
Mean Time Between Failures (MTBF):
- 299,000 hours
Certifications:
Safety Certifications:
- UL 60950-1
- CAN/CSA-C222.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
- AS/NZS 60950.1
- IEEE 802.3
Electromagnetic Emissions Certifications:
- 47 CFR Part 15
- CISPR22 Class A
- EN 300 386 V1.6.1
- EN 55022 Class A
- EN 55032 Class A
- CISPR 32 Class A
- EN61000-3-2
- EN61000-3-3
- ICES-003 Class A
- TCVN 7189 Class A
- V-3 Class A
- CISPR24
- EN 300 386
- EN55024
- TCVN 7317
Environmental:
- Reduction of Hazardous Substances (ROHS) 5
