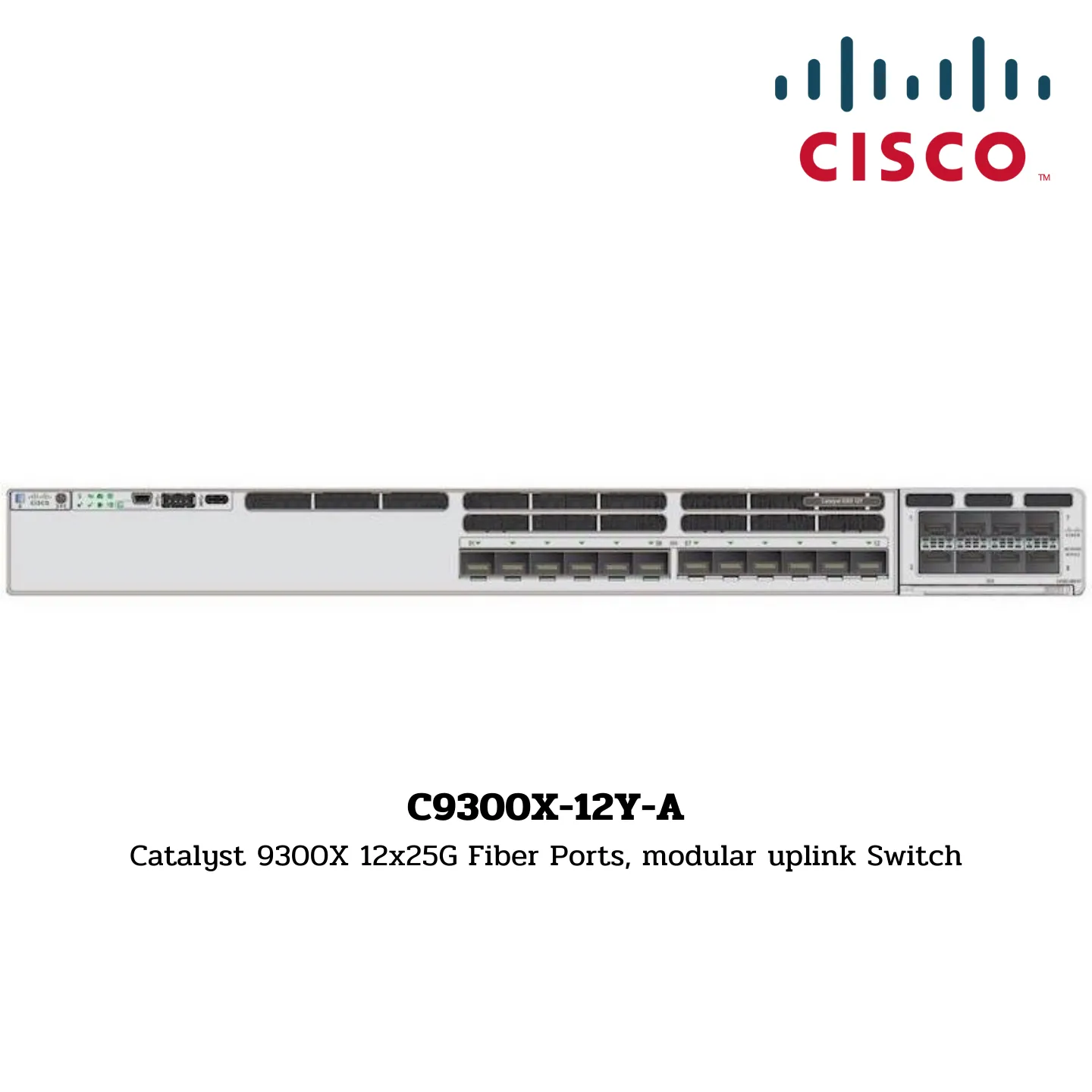

C9300X-12Y-A
Catalyst 9300X 12x25G Fiber Ports, modular uplink Switch
Specifications:
Device Type:
- Switch – 12 ports – L3 – managed – stackable
Enclosure Type:
- Rack-mountable 1U
Subtype:
- 25 Gigabit Ethernet
Ports:
- 12 x 1/10/25 Gigabit SFP28
Performance:
Switching Capacity:
- 1000 Gbps
Switching Capacity with Stacking:
- 2000 Gbps
Forwarding Rate:
- 744.04 Mpps
Forwarding Rate with Stacking:
- 1488 Mpps
Capacity:
IPv4 Routing Table Entries:
- 39,000
Flexible NetFlow Entries:
- 64,000
Direct IPv4 Routes:
- 24,000
Indirect IPv4 Routes:
- 15,000
IPv6 Routing Table Entries:
- 19,500
VLAN IDs:
- 4094
Switched Virtual Interfaces (SVIs):
- 1,000
Multicast Routing Flow Table:
- 8,000
QoS Scale Entries:
- 4,000
ACL Scale Entries:
- 5,000
PVST Instances:
- 300
STP Virtual Ports for PVST:
- 13,000
STP Virtual Ports for MST:
- 13,000
Routed Ports:
- 448
Features:
MAC Address Table Size:
- 32,000 entries
Jumbo Frame Support:
- 9,198 bytes
Routing Protocol:
- OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol:
- SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features:
- DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration, Cisco StackWise-1T technology
Compliant Standards:
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Physical Specifications:
RAM:
- 16 GB
Flash Memory:
- 16 GB
Status Indicators:
- Status
Expansion / Connectivity:
- Interfaces: 24 x 1/10/25GBase-X SFP28
Power:
- Power Device: Internal power supply
- Power Provided: 715 Watt
- Voltage Required: AC 120/230 V (50/60 Hz)
Miscellaneous:
- Compliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight:
- Width: 17.5 in
- Depth: 16.1 in
- Height: 1.73 in
- Weight: 15.0 Pounds
Environmental Parameters:
- Min Operating Temperature: 23 °F
- Max Operating Temperature: 113 °F
- Humidity Range Operating: 5 – 90% (non-condensing)
- Min Storage Temperature: -40 °F
- Max Storage Temperature: 158 °F
- Humidity Range Storage: 5 – 90% (non-condensing)
