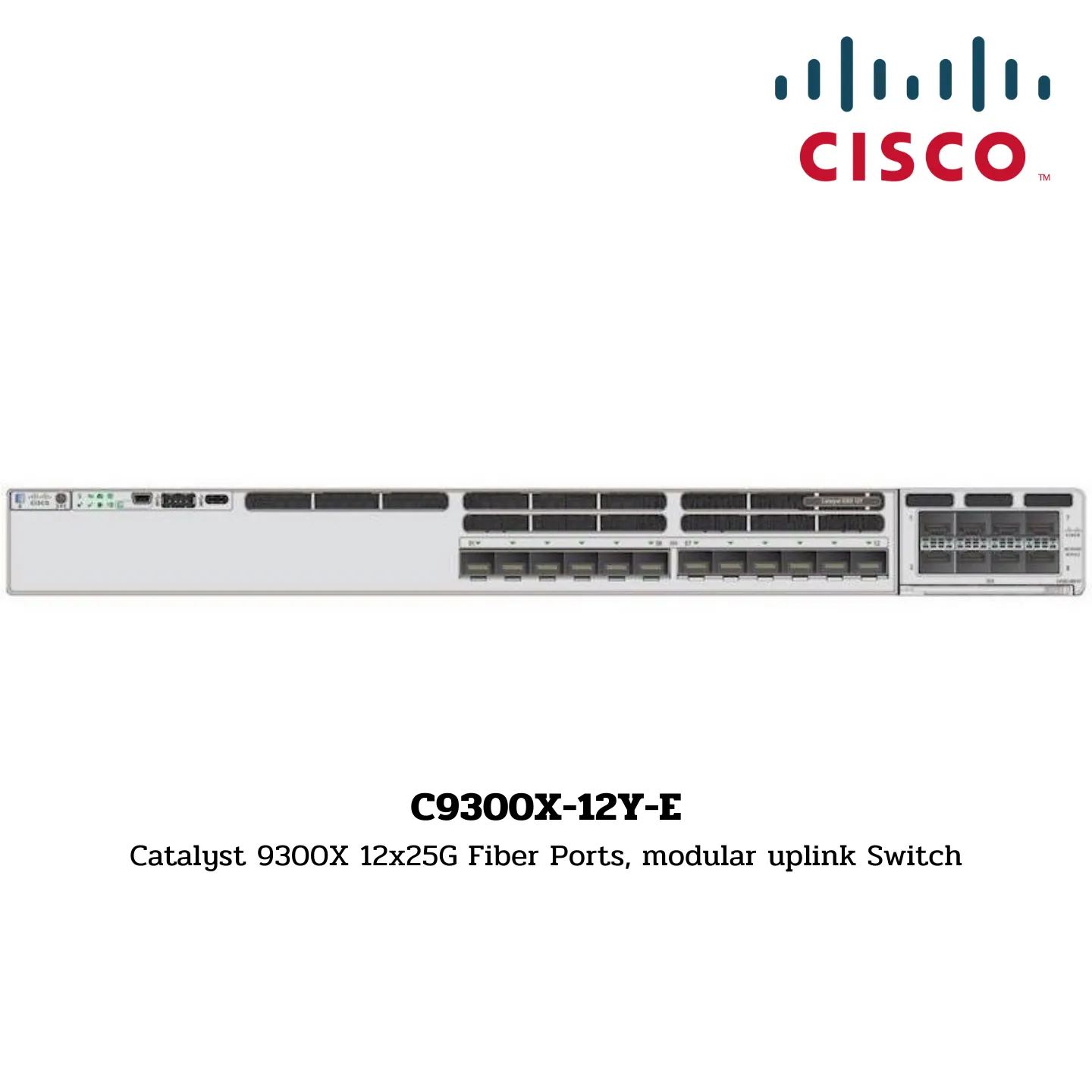

Switch Cisco Catalyst รุ่น C9300X-12Y-E

C9300X-12Y-E
Catalyst 9300X 12x25G Fiber Ports, modular uplink Switch

General:

Device Type:

• Switch – 12 ports – L3 – managed – stackable

Enclosure Type:

• Rack-mountable 1U

Subtype:

• 25 Gigabit Ethernet

Ports:

• 12 x 1/10/25 Gigabit SFP28

Performance:

Switching Capacity:

• 1000 Gbps

Switching Capacity with Stacking:

• 2000 Gbps

Forwarding Rate:

• 744.04 Mpps

Forwarding Rate with Stacking:

• 1488 Mpps

Capacity:

IPv4 Routing Table Entries:

• 39,000

Flexible NetFlow Entries:

• 64,000

Direct IPv4 Routes:

• 24,000

Indirect IPv4 Routes:

• 15,000

IPv6 Routing Table Entries:

• 19,500

VLAN IDs:

• 4094

Switched Virtual Interfaces (SVIs):

• 1,000

Multicast Routing Flow Table:

• 8,000

QoS Scale Entries:

• 4,000

ACL Scale Entries:

• 5,000

PVST Instances:

• 300

STP Virtual Ports for PVST:

• 13,000

STP Virtual Ports for MST:

• 13,000

Routed Ports:

• 448

Features:

MAC Address Table Size:

• 32,000 entries

Jumbo Frame Support:

• 9,198 bytes

Routing Protocol:

• OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng

Remote Management Protocol:

• SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

Other Features:

• DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration, Cisco StackWise-1T technology

Compliant Standards:

• IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at

Physical Specifications:

RAM:

• 16 GB

Flash Memory:

• 16 GB

Status Indicators:

• Status

Expansion / Connectivity:

• Interfaces: 24 x 1/10/25GBase-X SFP28

Power:

• Power Device: Internal power supply
• Power Provided: 715 Watt
• Voltage Required: AC 120/230 V (50/60 Hz)

Miscellaneous:

Compliant Standards:

• CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1

Dimensions & Weight:

• Width: 17.5 in
• Depth: 16.1 in
• Height: 1.73 in
• Weight: 15.0 Pounds

Environmental Parameters:

Min Operating Temperature:

• 23 °F

Max Operating Temperature:

• 113 °F

Humidity Range Operating:

• 5 – 90% (non-condensing)

Min Storage Temperature:

• -40 °F

Max Storage Temperature:

• 158 °F

Humidity Range Storage:

• 5 – 90% (non-condensing)
