Cisco Meraki Camera Indoor Dome รุ่น MV2-HW

MV2-HW

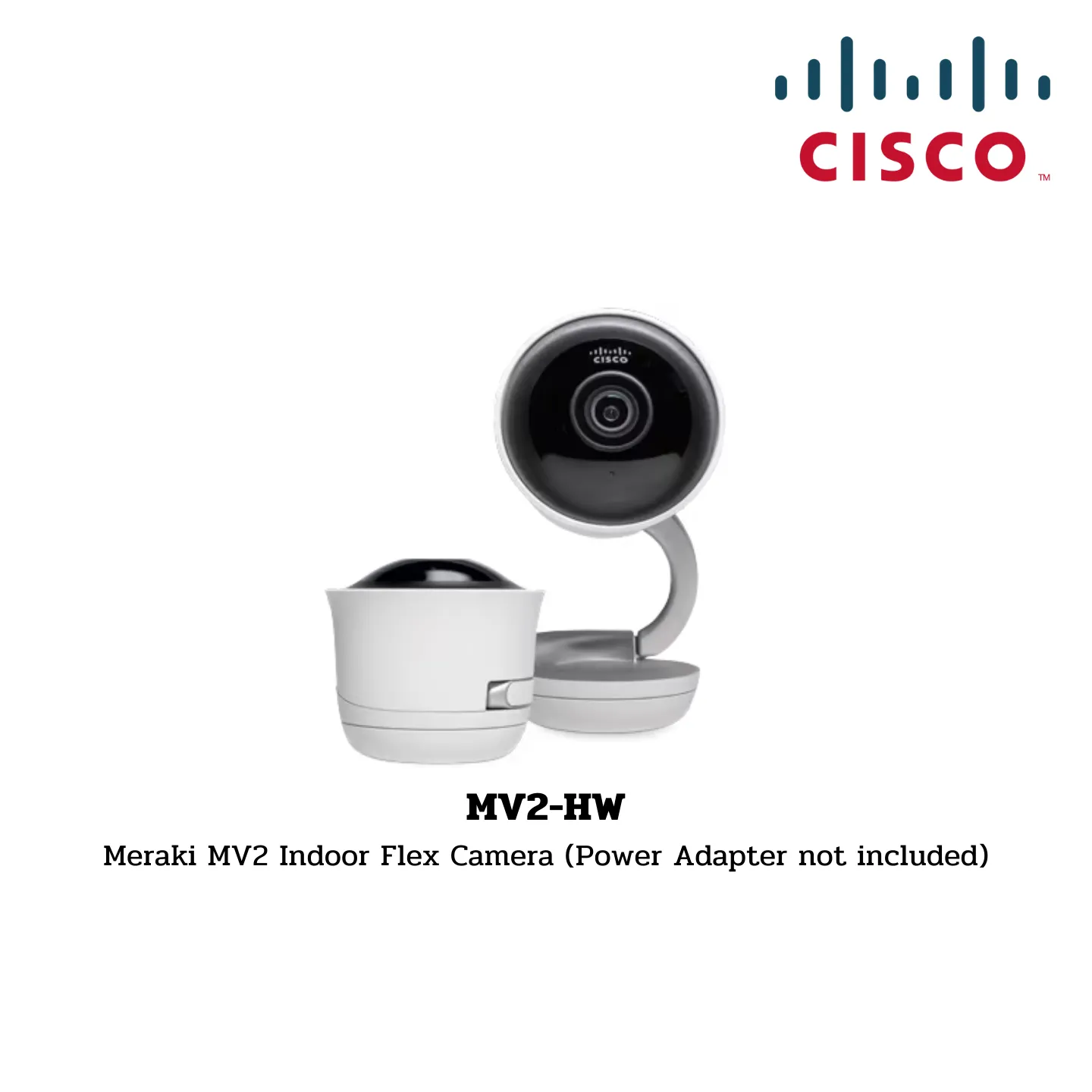

Meraki MV2 Indoor Flex Camera (Power Adapter not included)

Camera Specifications

• Image Sensor: 1/3 inch 4MP (2688×1520) progressive CMOS image sensor
• Lens: 2.8 mm focal length fixed lens, f/2.0 aperture
  • Field of View: Horizontal 103°, Vertical 76°, Diagonal 134°
  • Shutter Speed: 1/30 s to 1/32,000 s
  • Minimum Illumination: 0.18 lux
  • Built-in IR Illuminators: Effective up to 8 m (26 ft)

Video Specifications

• Video Recording: 1080p HD video recording (1920×1080) with H.264 encoding, up to 15 fps
• Streaming: Direct live streaming with no client software (native browser playback), stream video anywhere with automatic cloud proxy
• Audio Recording: Supported with built-in microphone

Data and Network Security

• Security Features: Full-disk encryption (AES 256-bit), automatically purchased and provisioned TLS certificates (publicly signed), management encryption and two-factor authentication, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TTLS, TKIP and AES encryption

Power

• Power Supply Options: 10 W via a USB-C power adapter (MA-PWR-USB-XX), 12.95 W maximum via 802.3af PoE (MA-PWR-ETH)

Networking and Wireless

• Wireless Capabilities: Dual-band WLAN with support for 2.4 GHz and 5 GHz
  • DSCP Traffic Marking
  • 2.4 GHz 802.11b/g/n radio
  • 5 GHz 802.11a/n/ac radio
• Supported Frequency Bands: 2.412-2.484 GHz, 5.150-5.250 GHz (UNII-1), 5.250-5.350 GHz (UNII-2), 5.470-5.600, 5.660-5.725 GHz (UNII-2e), 5.725-5.825 GHz (UNII-3)
• Networking Capabilities: 802.11ac and 802.11n capabilities, 1×1 with one spatial stream, MU-MIMO support, 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac), up to 256 QAM on both 2.4 GHz and 5 GHz bands
• Antenna: Integrated omni-directional antennas (4.4 dBi gain at 2.4 GHz, 6.3 dBi gain at 5 GHz)
• Bluetooth: 2.4 GHz Bluetooth® Low Energy radio

Environment

• Operating Conditions: Temperature 0°C to 35°C (32°F to 95°F)

Physical Characteristics

• Dimensions: 76 mm x 68-129 mm (diameter x height)
• Weight: 464 g
• Lens: Fixed lens
• Other: USB-C jack, multicolor, multifunction status LED, reset button

In the Box

• Quick-start and installation guide
• MV camera hardware
• Magnetic base plate with 1/4 in screw
• Wall-mounting kit

Ordering Information

• MV2-HW: Indoor flex camera
• LIC-MV-XYR: Meraki MV Enterprise license (X = 1, 3, 5, 7 years)
• MA-PWR-USB-XX: Meraki AC power adapter for MV and MT (XX = US, EU, UK, or AU)
• MA-PWR-ETH: Meraki Ethernet adapter for MV and MT
