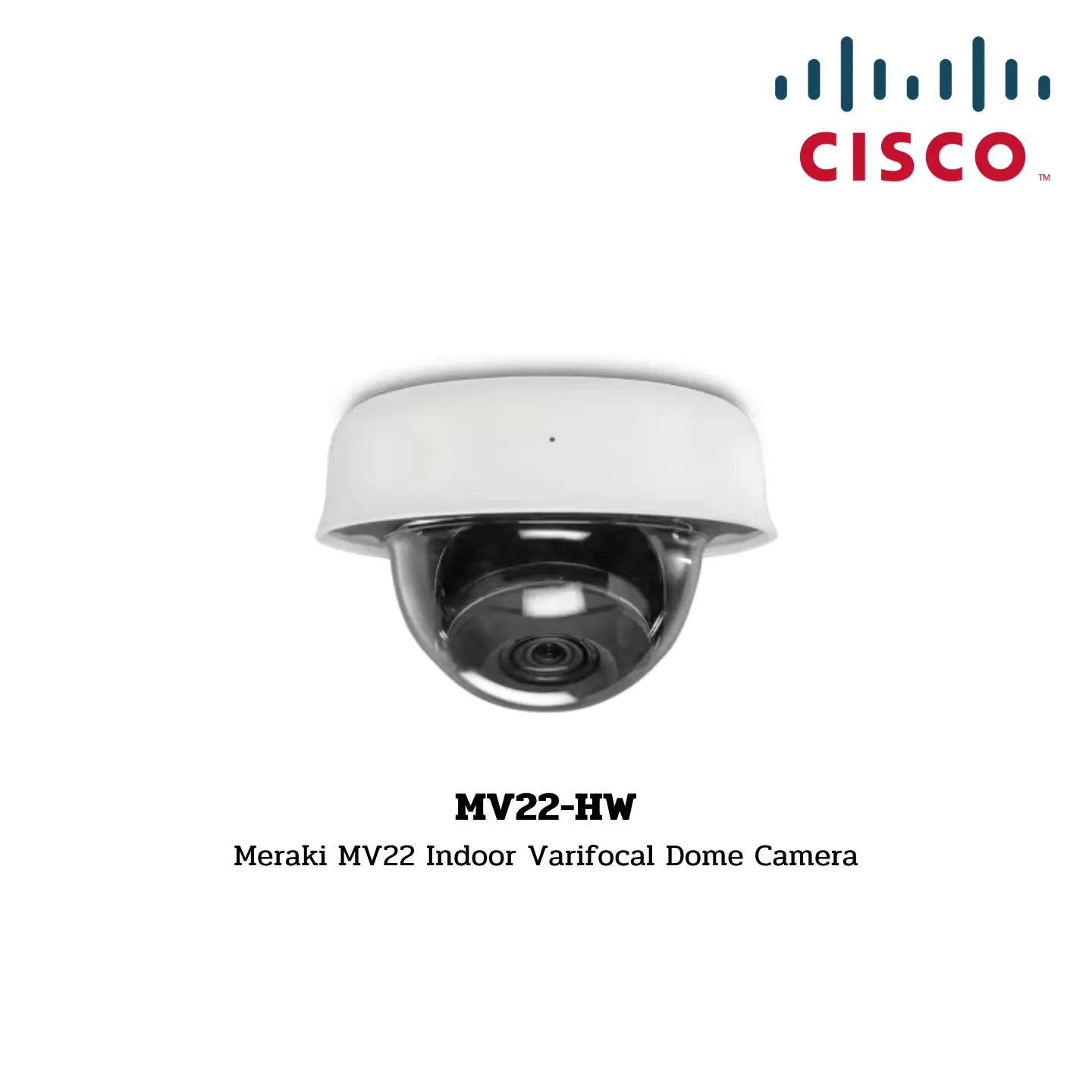

Cisco Meraki Camera Indoor Dome รุ่น MV22-HW

MV22-HW
Meraki MV22 Indoor Varifocal Dome Camera

• Camera Specifications:

  • Image Sensor: 1/3” 4MP (2688×1520) progressive CMOS
  • Storage: 256GB (MV22), 512GB (MV22X)
  • Lens: 3-9mm focal length, f/1.2-2.3 aperture
  • Field of View: Horizontal 36-112°, Vertical 20-57°, Diagonal 42°-138°
  • Lens Adjustment Range: Tilt 65°, Rotation +/- 90°, Pan 354°
  • Shutter Speed: 1/30s to 1/32,000s
  • Illumination: Minimum 0.18 Lux (standard), 0.01 Lux (night mode), IR illuminators up to 30m

  Video Specifications:

  • Recording: 1080p HD at 20fps (MV22), 4MP at 15fps (MV22X)
  • Storage: Cloud augmented edge storage
  • Retention: Up to 90 days (MV22X)
  • Streaming: Direct live streaming without client software, automatic cloud proxy
  • HDR: High Dynamic Range
  • Audio: Supported with built-in microphone

  Networking and Wireless:

  • Interfaces: 1x 10/100/1000 Base-T Ethernet (RJ45)
  • Frequency Bands: 2.4 GHz and 5 GHz with MU-MIMO support
  • Antennas: Integrated omni-directional
  • Bluetooth: 2.4 GHz Bluetooth Low Energy (BLE) radio

  Power:

  • Consumption: 12.95W maximum via 802.3af PoE

  Environment:

  • Operating Conditions: Temperature 0°C – 40°C (32°F – 104°F)

  Data and Network Security:

  • Encryption: Full disk encryption (AES 256-bit), TLS certificates, two-factor authentication
  • Wireless Security: WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TTLS, TKIP, AES

  Physical Characteristics:

  • Dimensions: 149mm x 97mm
  • Weight: 706g
  • Connectors: Female RJ45 Ethernet, multifunction status LED, reset button

  Ordering Information:

  • MV22-HW: 256GB Storage
  • MV22X-HW: 512GB Storage
  • LIC-MV-XYR: Meraki MV Enterprise License (X = 1, 3, 5, 7, 10 years)
  • MA-INJ-4-XX: Meraki 802.3at PoE injector
  • MA-PWR-MV-LV: Low voltage PoE injector for MV cameras

  In The Box:

  • Quick start guide
  • Camera hardware
  • Wall mounting kit
