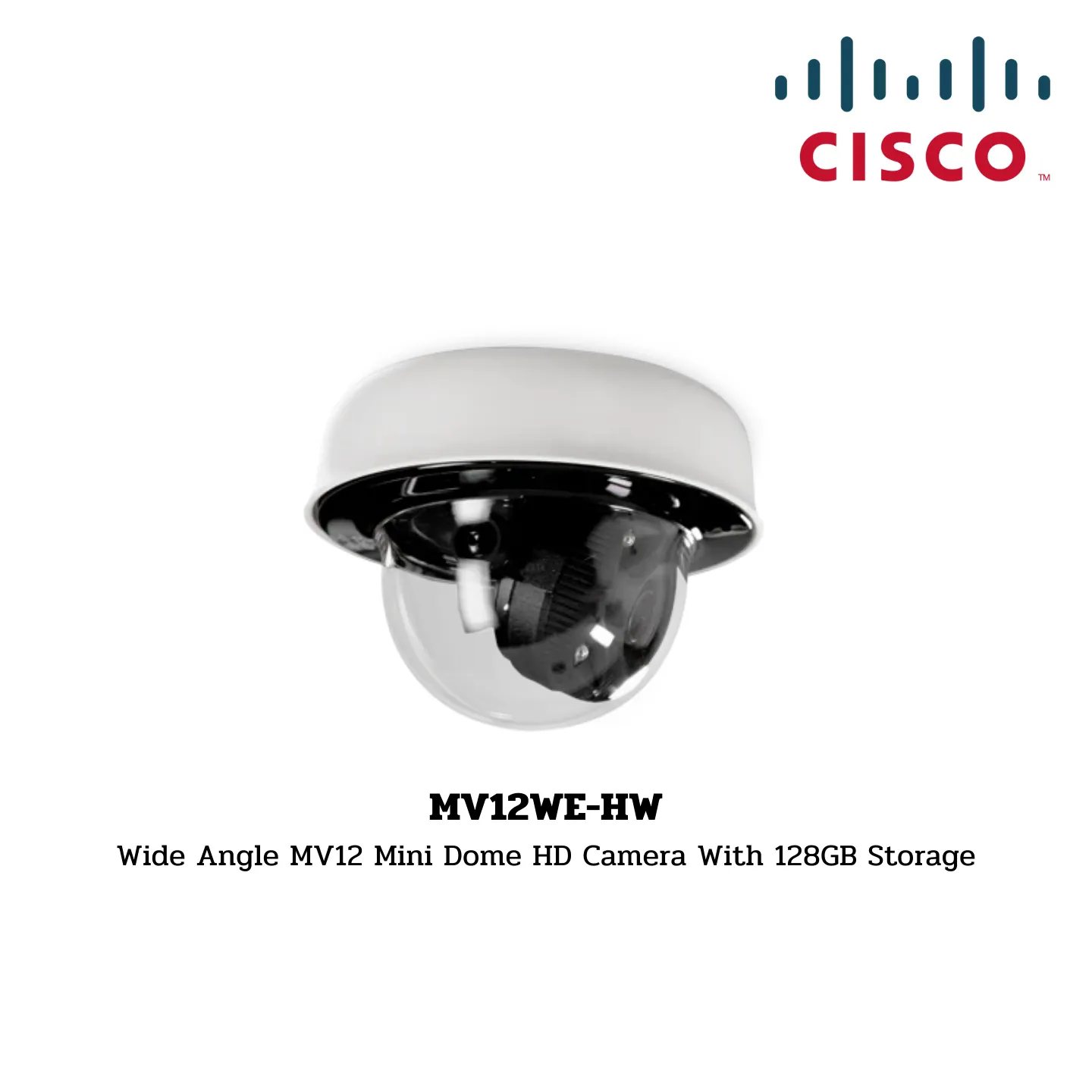

Cisco Meraki Camera Mini Dome รุ่น MV12WE-HW

MV12WE-HW
Wide Angle MV12 Mini Dome HD Camera With 128GB Storage

• Camera:
  • Image Sensor: 1/3” 4MP (2688×1520) progressive CMOS
  • Storage: 128GB high endurance solid state storage
  • Lens: 2.8mm fixed focal length, f/1.8 aperture
  • Field of View: Horizontal 114°, Vertical 61°, Diagonal 132°
  • Shutter Speed: 1/30s to 1/32,000s
  • Illumination: Minimum 0.18 Lux (standard) and 0.01 Lux (night mode), built-in IR illuminators effective up to 15m

Video:

• Resolution: 1080p HD (1920×1080) with H.264 encoding, up to 20fps
• Storage: Cloud augmented edge storage
• Retention: Up to 40 days per camera
• Streaming: Direct live streaming without client software, automatic cloud proxy
• HDR: High Dynamic Range

Data Security:

• Encryption: Full disk encryption (AES 256-bit), TLS certificates, two-factor authentication

Networking:

• Ethernet: 1x 10/100/1000 Base-T (RJ45)
• WLAN: Dual band (2.4GHz and 5GHz), 802.11 a/b/g/n/ac

Features:

• Management: Cloud managed via Meraki dashboard, plug and play deployment
• Transition: Dynamic day-to-night with IR illumination
• Motion Detection: Noise optimized motion indexing, motion alerts, motion heat maps

Power:

• Consumption: 12.95W maximum via 802.3af PoE

Environment:

• Temperature: 0°C to 40°C (32°F to 104°F)

Physical Characteristics:

• Dimensions: 106mm x 74mm
• Weight: 286g
• Connector: Female RJ45 Ethernet
• Other: Multicolor status LED, reset button

In the Box:

• Quick start guide, camera hardware, wall mounting kit
