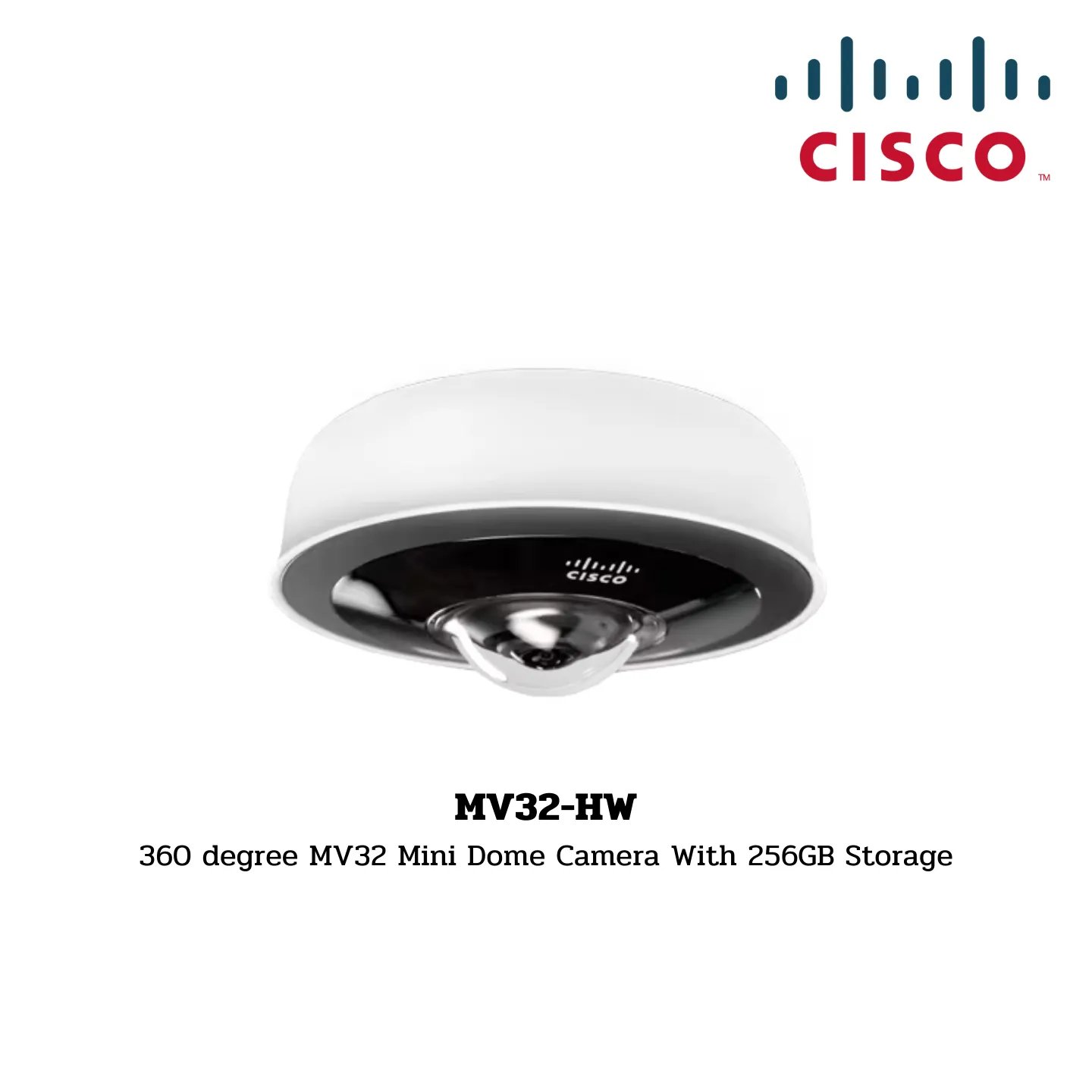

Cisco Meraki Camera Mini Dome รุ่น MV32-HW

MV32-HW
360 degree MV32 Mini Dome Camera With 256GB Storage

• Camera Specifications:

  • Image Sensor: 1/2.5” 8.4MP (4.2MP effective) progressive CMOS
  • Storage: 256GB high endurance solid state
  • Lens: 1.19mm fixed focal length, f/2.0 aperture
  • Field of View: 180° horizontal and vertical
  • Shutter Speed: 1/30s to 1/32,000s
  • Illumination: Minimum 0.18 Lux

  Video Specifications:

  • Recording:
    • 4.2MP (2058×2058) 360° overview at 15fps
    • 1MP (1080×1080) 360° overview at 8fps
  • Storage: Cloud augmented edge storage
  • Retention: Up to 20 days of continuous video storage per camera
  • Streaming: Direct live streaming without client software, automatic cloud proxy
  • HDR: High Dynamic Range
  • Audio: Built-in microphone

  Data and Network Security:

  • Encryption: AES 256-bit full disk encryption, TLS certificates, two-factor authentication
  • Wireless Security: WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TTLS, TKIP, AES

  Networking and Wireless:

  • Interfaces: 1x 10/100/1000 Base-T Ethernet (RJ45), DSCP traffic marking
  • Frequency Bands:
    • 2.4 GHz 802.11b/g/n
    • 5 GHz 802.11a/n/ac (various UNII bands)
  • Capabilities: MU-MIMO, 20/40/80 MHz channels, up to 256 QAM
  • Antennas: Integrated omni-directional

  Power:

  • Consumption: 12.95W maximum via 802.3af PoE

  Environment:

  • Operating Conditions: 0°C to 40°C (32°F to 104°F)

  Physical Characteristics:

  • Dimensions: 106mm x 45.86mm
  • Weight: 215g
  • Connectors: Female RJ45 Ethernet, multicolor status LED, reset button

  Ordering Information:

  • MV32-HW: 256GB Indoor Fisheye Camera
  • LIC-MV-XYR: Meraki MV Enterprise License (X = 1, 3, 5, 7, 10 years)
  • MA-INJ-4-XX: Meraki 802.3at PoE injector
  • MA-PWR-MV-LV: Low voltage PoE injector for MV cameras

  In The Box:

  • Quick start guide
  • Camera hardware
  • Wall mounting kit
