Cisco Meraki Sensor Hardware รุ่น MT10-HW

MT10-HW

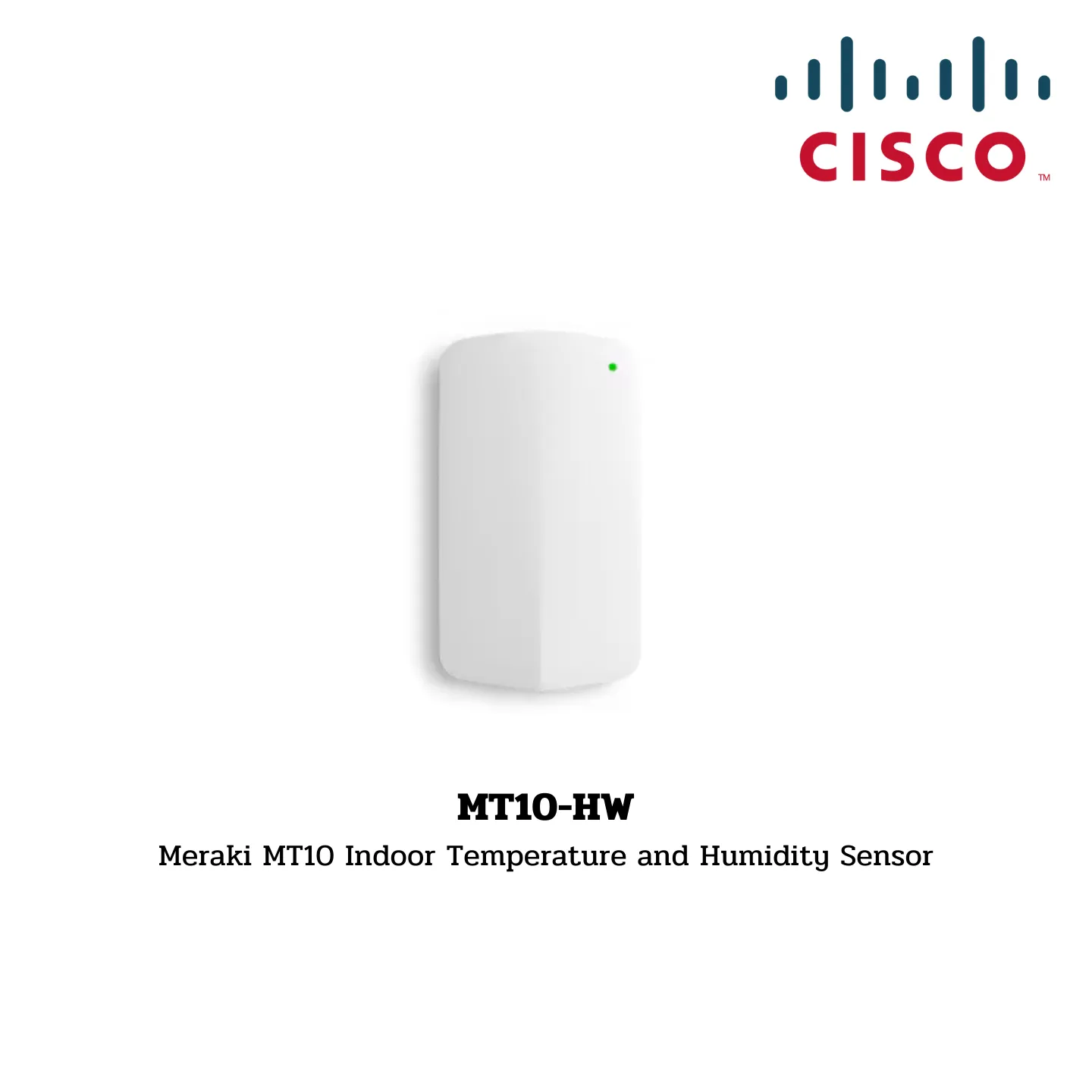

Meraki MT10 Indoor Temperature and Humidity Sensor

Specifications

Sensors:

• Temperature Range: 0°C – 55°C (32°F – 131°F)
• Accuracy: +/- 0.3°C
• Humidity Range: 0 – 95% relative humidity
• Accuracy: +/- 2.5% relative humidity

Wireless Capabilities:

• Bluetooth Low Energy: Compatible with MV smart cameras and MR access points
• Operating Frequency: 2.400–2.4835 GHz
• IEEE Standard: 802.15.1 (Bluetooth 4.2 Low Energy BLE)

Data Logging:

• Data Sampling: Sample polling every two minutes
• Data Reporting: To gateway every 20 minutes, or immediately upon threshold violation
• Onboard Data Storage: 4,000 data points (5 days of data at the default sampling rate)
• BLE messages encrypted and authenticated using Cisco Trust Anchor technology

Power:

• Two AA batteries or power adapter
• Battery life up to five (5) years
• Power Ratings: 5V; 0.1A

Operating Environment:

• Temperature: 0°C – 55°C (32°F – 131°F)
• Relative Humidity: 0-95%

Physical Characteristics:

• Dimensions: 117.1mm x 65.9mm x 26.0mm (length x width x height)
• Battery compartment
• Multicolor, multifunction status LED
• General purpose button
• Reset button
• USB-C Port

Ordering Information:

• MT10-HW: Meraki MT10 Indoor Temperature and Humidity Sensor
• LIC-MT-XY: Meraki MT Enterprise License and Support (X = 1, 3, 5, 7 years)
• MA-PWR-USB-XX: External Power Adapter (XX= US, EU, UK, or AU)

In the Box:

• MT10-HW
• Quick-start & installation guide
• AA batteries (x2)
• Mounting equipment:
  • Backplate
  • Mounting magnet
  • 3M tape
  • Mounting screws (x2)
  • Drywall anchors (x2)
