Cisco Meraki Sensor Hardware รุ่น MT12-HW

MT12-HW

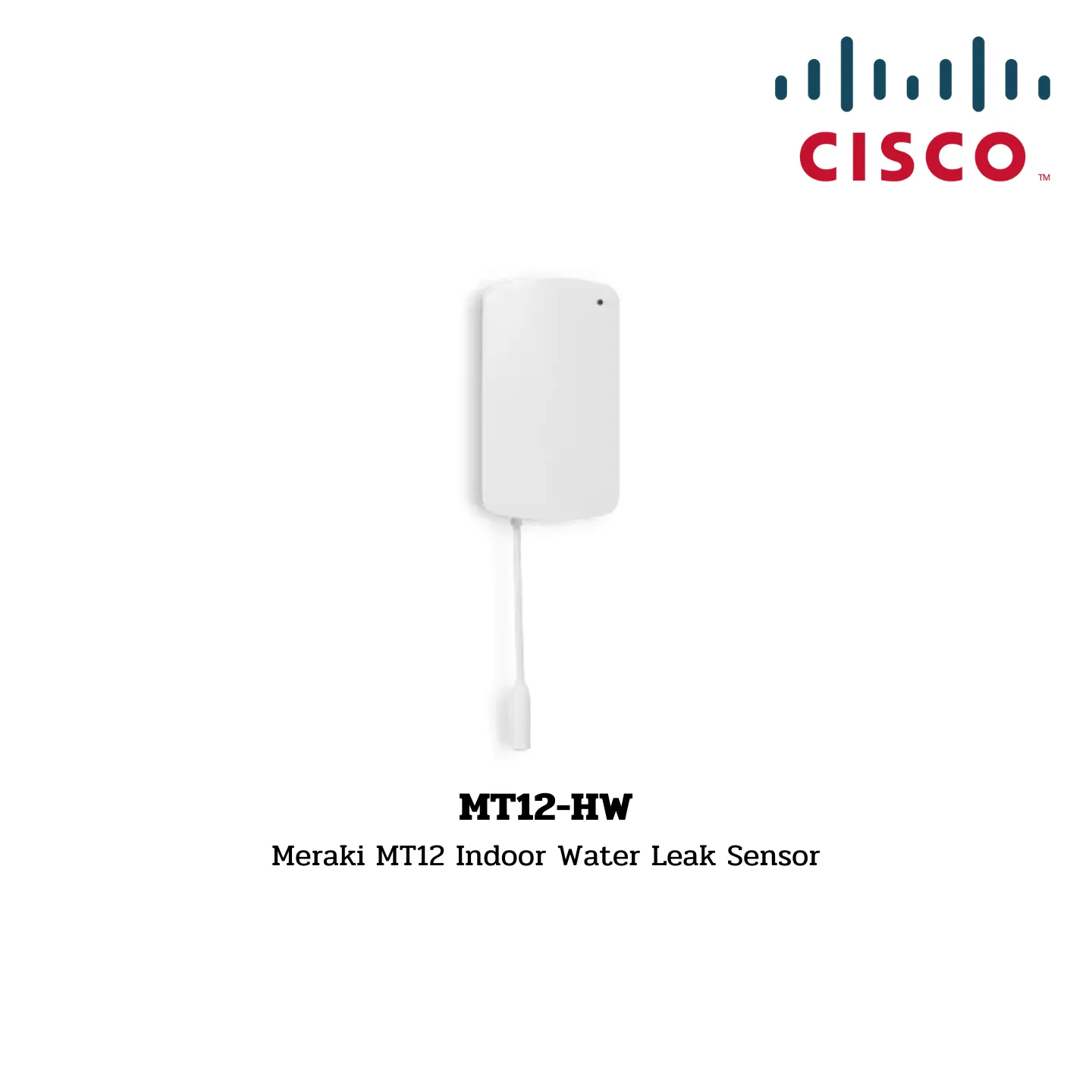

Meraki MT12 Indoor Water Leak Sensor

Specifications

Water Leak Sensor:

• Capable of detecting the presence of as little as 3 mL of water making contact with the cable

Wireless Capabilities:

• Bluetooth Low Energy: Compatible with MV smart cameras and MR access points
• Operating Frequency: 2.400-2.4835 GHz
• IEEE Standard: 802.15.1 (Bluetooth 4.2 Low Energy)

Data Logging:

• Data Polling Frequency: Every 20 minutes, or immediately upon state change
• Onboard Data Storage: 4,000 data points (five days of data at default sampling rate)
• BLE messages encrypted and authenticated using Trust Anchor technology

Power:

• Two AA batteries or power adapter
• Battery life up to five (5) years
• Power Ratings: 5 V; 0.2 A

Physical Characteristics:

• Dimensions: 117.1 mm x 65.9 mm x 26.0 mm (length x width x height)
• Battery compartment
• Multicolor, multifunction status LED
• Reset button
• USB-C port
• Water leak detection plug (female connector)

Operating Environment:

• Temperature: 0 °C – 55 °C (32 °F – 131 °F)
• Relative Humidity: 0% – 95%

Ratings:

• IPX5 rated

Ordering Information:

• MT12-HW: Meraki MT12 Indoor Water Leak Detection Sensor
• LIC-MT-XY: Meraki MT Enterprise License and Support (X = 1, 3, 5, 7 years)
• MA-PWR-USB-XX: External Power Adapter (XX = US, EU, UK, or AU)
• MA-CBL-LEAK-1: 8 ft (2.4 M) Water Leak Detection Cable IPX rated
• MA-CBL-LEAK-2: Spot Leak Detection Cradle to detect leaks in specific locations

In the Box:

• MT12-HW
• Quick-start and installation guide
• AA batteries (2)
• Mounting equipment:
  • Backplate
  • Mounting magnet
  • 3M tape
  • Mounting screws (x2)
  • Drywall anchors (x2)
  • Cable clips (x8)
