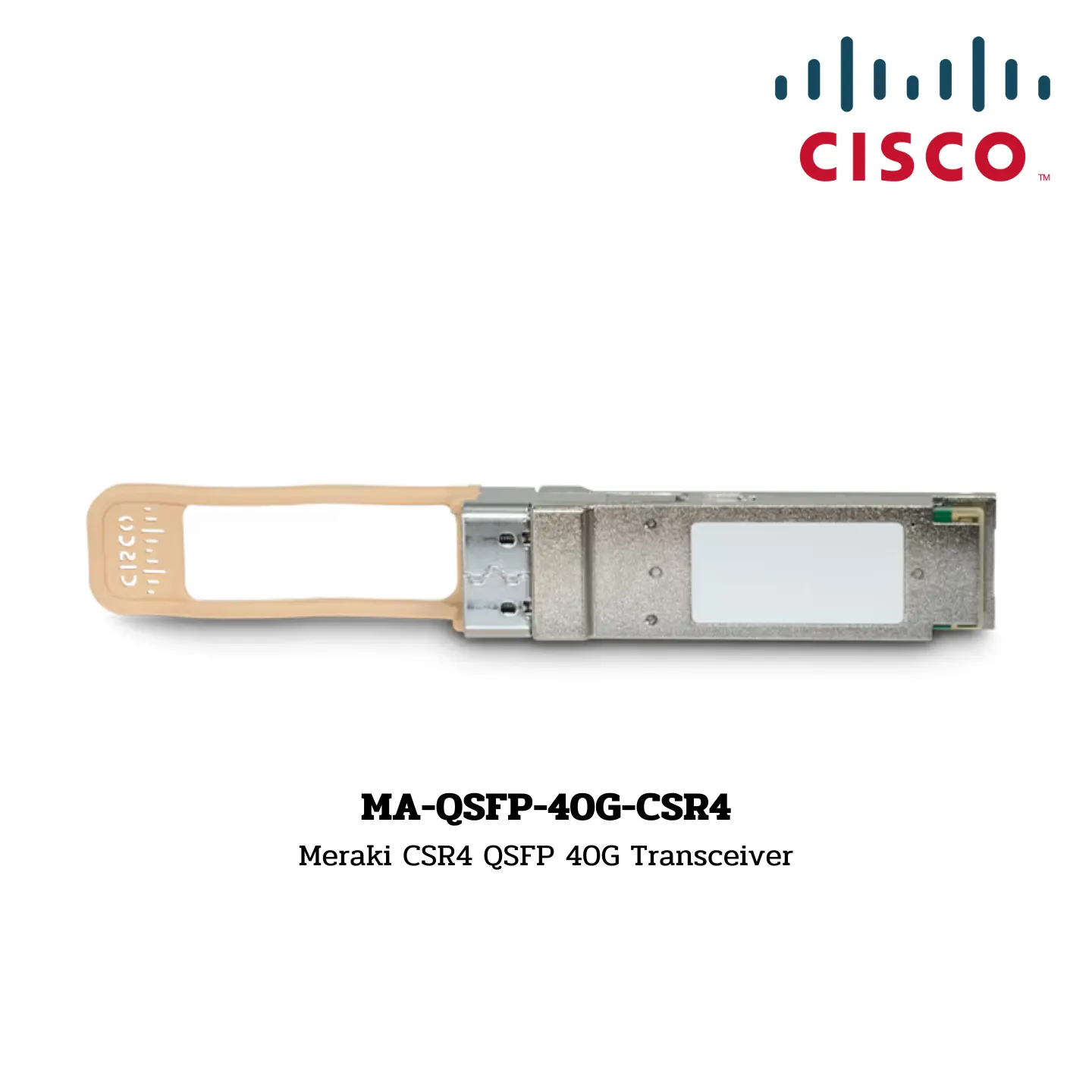

MA-QSFP-40G-CSR4
Meraki CSR4 QSFP 40G Transceiver
The Meraki MA-QSFP-40G-CSR4 is a high-speed 40 Gigabit Ethernet (GbE) QSFP+ transceiver module designed for short-range communication over multi-mode fibers.
Overview
The MA-QSFP-40G-CSR4 transceiver supports 40GBASE-CSR4 Ethernet operations, designed to extend the reach of the IEEE 40GBASE-SR4 interface. This transceiver is ideal for data centers, enterprise core and distribution layers, and high-performance computing networks, ensuring high-speed connectivity over short distances.
Key Features:
- Compatibility: Works with various Meraki switches, including MS355, MS390, MS425, and MS450 models (some models not available in some regions).
- Standard: Supports 40GBASE-CSR4 Ethernet operations.
- Range: Provides a maximum reach of 300 meters on laser-optimized OM3 multi-mode fiber and 400 meters on OM4 multi-mode fiber.
- Wavelength: Operates at 850 nm.
- Hot-Swappable: Allows for easy installation and replacement without requiring downtime.
- Form Factor: QSFP+ ensures high density and efficient space utilization in network setups.
- Digital Diagnostics Monitoring (DDM): Offers real-time monitoring of critical parameters such as optical power, transceiver temperature, and supply voltage.
- High Port Density: Provides four independent full-duplex channels, each capable of 10 Gbps operation for an aggregate data rate of 40 Gbps.
- Environmental Suitability: Operating temperature range between 0°C to 70°C, making it suitable for a variety of network environments.
- MTP/MPO Connector: Ensures secure and reliable connections.
- Low Power Consumption: Low power consumption of less than 1.5 W for efficient energy use.
This transceiver module is perfect for ensuring high-speed, reliable short-range 40 Gigabit Ethernet connectivity in your network setup.
Specifications
- Type: Compact, hot-swappable transceiver
- Standard: 40GBASE-CSR4
- Range: 400 meters
- Compatible with:
- MS355 switches
- MS390 switches
- MS425 switches
