MA-QSFP-40G-LR4

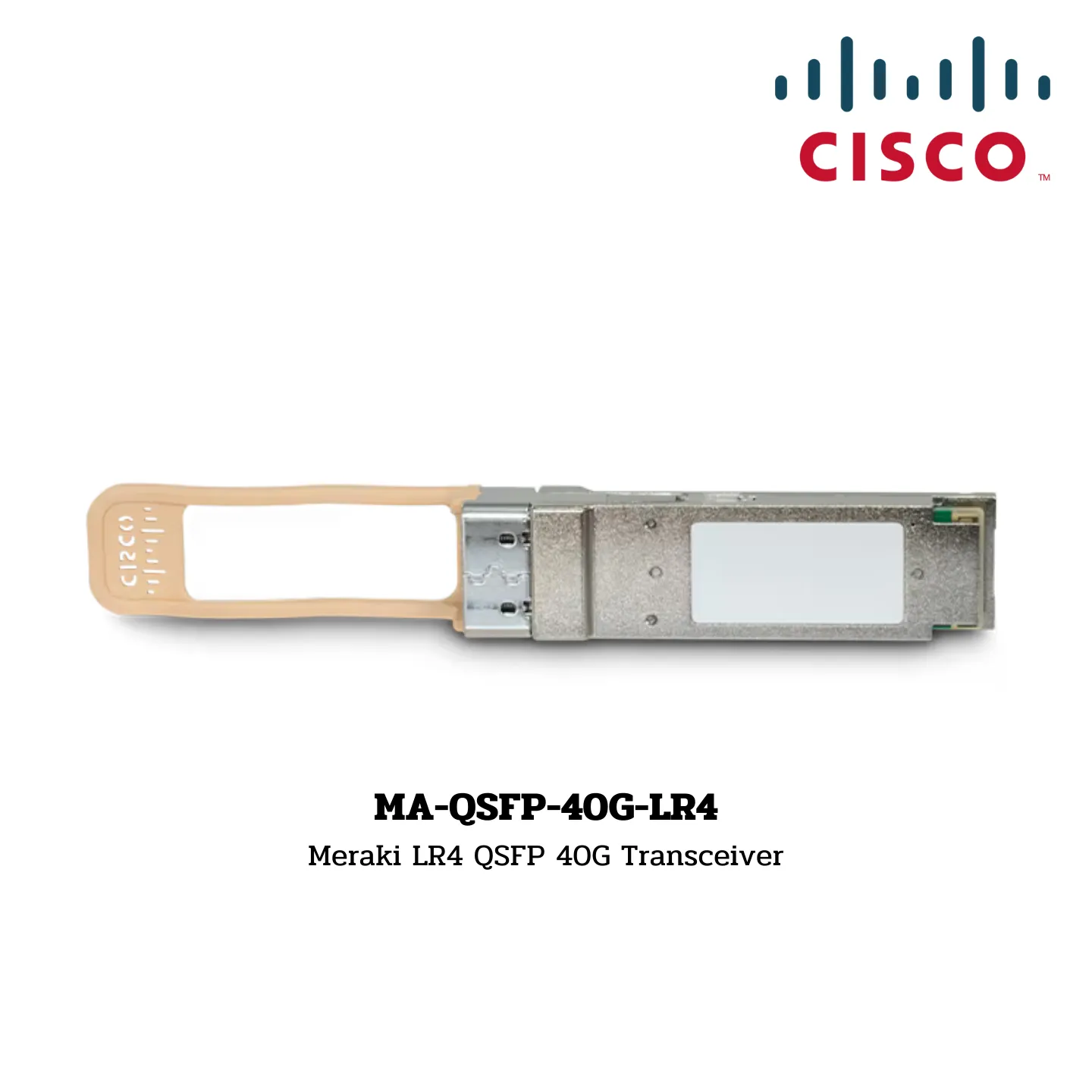

Meraki LR4 QSFP 40G Transceiver

The Meraki MA-QSFP-40G-LR4 is a high-speed 40 Gigabit Ethernet (GbE) QSFP+ transceiver module designed for long-range communication over single-mode fibers.

Overview

The MA-QSFP-40G-LR4 transceiver supports 40GBASE-LR4 Ethernet, making it ideal for data centers and enterprise networks requiring high-speed, reliable connectivity over longer distances. It can cover distances up to 10 kilometers, providing efficient and robust network performance.

Key Features:

• Compatibility: Works with various Meraki switches, including MS355, MS390, and MS425 models.
• Standard: Supports 40GBASE-LR4 Ethernet operations.
• Range: Provides a maximum reach of up to 10 kilometers using single-mode fiber.
• Wavelength: Operates at 1270 nm to 1330 nm wavelengths.
• Hot-Swappable: Allows for easy installation and replacement without requiring downtime.
• Form Factor: QSFP+ ensures high density and efficient space utilization in network setups.
• Digital Diagnostics Monitoring (DDM): Offers real-time monitoring of critical parameters such as optical power, transceiver temperature, and supply voltage.
• Power Consumption: Low power consumption of less than 3.5 W for efficient energy use.
• Environmental Suitability: Operating temperature range between 0°C to 70°C, making it suitable for a variety of network environments.

This transceiver module is a perfect choice to ensure high-speed, long-range 40 Gigabit Ethernet connectivity in your network setup.

Specifications

• Type: Compact, hot-swappable transceiver
• Standard: 40GBASE-LR4
• Range: 10 km
• Compatible with:
  • MS355 switches
  • MS390 switches
  • MS425 switches
  • MS450 switches
